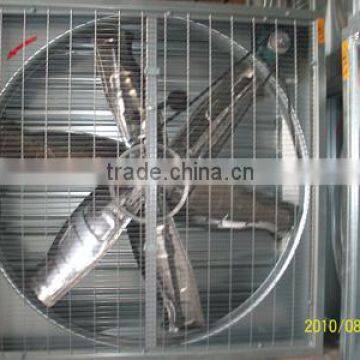

50inch Heavy duty Exhaust Fan for Poultry Farm/Greenhouse

50inch Heavy duty Exhaust Fan for Poultry Farm/Greenhouse

Product Details:

1, Frame:  frames are made of hot dip galvanized sheet, top frame thickness 1.0mm, others’ thickness 0.8mm. Galvanizing layer 180g/square meters.

2, Blade:  6 pieces, material 430/304 stainless steel.

3, Impeller: casting aluminum alloy impeller.

4, bearing of impeller: permanently sealed bearing, size 633313.

5, Collector: galvanized sheet, thickness 1.0mm.

6, Blade tip clearance: 25mm, mirror face.

7, Protecting net: plastic sprayed steel wire, thickness 2.8mm.

8, Motor:  aluminum alloy frame motor, 380V/220/415V, 1.1KW/0.75KW(1.5HP/1HP), 50HZ/60HZ, 3PH/Single Phase, IP55, class F

9, Motor bearing:cast iron.

10, Belt: B-belt and A-belt (Made-in-China and Japan brand Mitsuboshi).

11, Shutters: galvanized sheet, 0.45 mm thickness Galvanizing layer, 180g/square meter.

12, Opening system: high strength nylon drop hammer open device.

Airflow Curve:

Parameters:

Application Cases:


About Us:

Everon Industrial Co.,Ltd is a professional supplier of ventilation machinery. focus on the worldwide market.We promise to provide best product with competitive price.
We have strict inspection of the machine before packed,ensure the goods deliveried to your hands are in goods condition.
Welcome to contact me for more details.
Email: daniel_everon# (please replace '#' with ‘@’)
