Energy Saving Dog Food Pellet Making Machine

Contact: Ms.Alice

Skype: dhella63

Mobile: 008613838255120

WhatsApp/Viber: 008613838255120

QQ: 2974204665

Machine Introduction

DH-FP series animal feed pellet machine is our newly developed energy-saving equipment. It can process different materials such as corn, maize, wheat, grass, grains, molasses, fish meal, meat meal, bone meal and the crushed waste from agriculture. It is widely used in the production of livestock and poultry feed.

Product Effect&Application Part

The animal feed pellets have suitable density and high combustion value. And it is widely applied for large, middle and small size aquaculture; grain & feed processing factories; animal farm; poultry farm; individual and small & middle size farm or large, middle and small size feed processing factories.

The feed pellet diameter can be from 0.9mm to 20mm by changing the moulds. It is suitable for making feed for animals, such as pig, sheep, cattle, chicken, duck, rabbit, goose, horse, dog, cat, donkey, pigeon, carmel etc.

Raw Materials

1) The raw material

It has wide range of raw materials, it can be flour, corn starch, rice bran, meat meal, bone meal, fish meal, soybean meal, soybean, corn, grain etc. It also can be mixture of different kinds raw materials, but evenly mixed, no adhesive or chemical.

2) Requirements of Raw Material

Fitness: about 60-80mesh which were crushed and mixed.

Moisture content: about 20%-25%.

Oil content: ≤10%
Starch content: ≥30%

Size of material: powder or granule(size smaller than 1 cm)

We have crusher for your bigger raw material (such as fish, grain, bone etc.), any further details, please feel free to let us know!

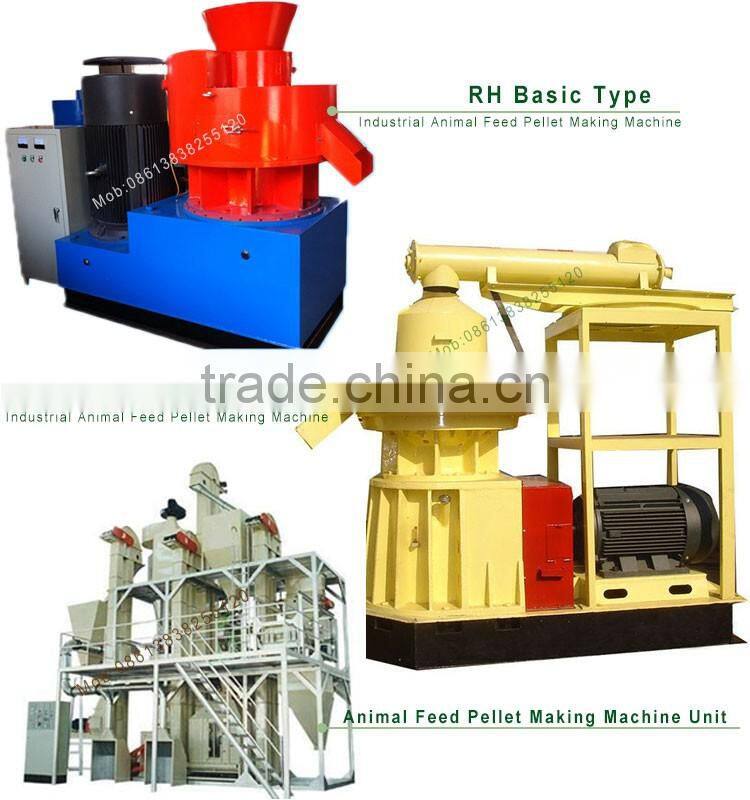

Machine Show

We provide three type efficient feed pellet making machine for different requirements of customers.

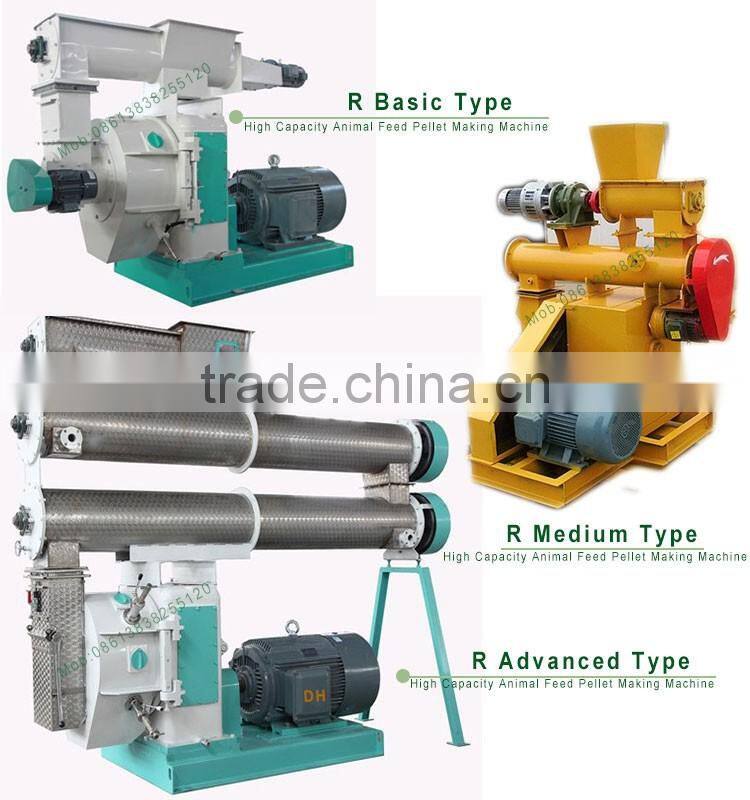

A: D type animal feed pellet making machine

B: R type animal feed pellet making machine

C: RH type animal feed pellet making machine

Technical Parameters

(1) Gear directly-connecting driving is adopted for high efficiency;

(2) Full stainless steel feeder; variable pitch anti-bridging structure; Imported FC control;

(3) LL stainless steel conditioner with axial steam spraying extends the conditioning and cooking time;

(4) Main gear and pinion shaft adopt the carbonizing quenching with high accuracy; smooth driving, low noise and long service life;

(5) Gearbox and driving holes’ accuracy are guaranteed by specialized casting supplier and NCC;

(6) The bearing and oil seal in the main drive are imported, and especially lubrication oil return system is available to ensure reliable bearing lubrication;

(7) 2 pc quick disassembling type precisely-cast die clamp is adopted to connect the die and quill flange, resulting in convenient and quick disassembling of die;

(8) Pellet chamber door and feed chute are fully made of stainless steel with high anti-corrosion ability and long service life;

(9) The connection between motor and gearbox adopts new type S-shape spring coupling with more convenient disassembling and assembling and more reliable use

Recommend Other Popular Future Processing Machine for Your Reference

We also can provide you feed pellet bottle packing machine and other relevant future machine. Any need, Please don't hesitate to contact us.

1. The single animal feed pellet making machine will be packaged by export standard wooden case or upon customer's request.
2. All the machines will be adjusted and tested before shipping.

Pre-sale:

1. Suggest to client suitable models of as customer need.
2. Introduce machine's structure and features in detail, explain the price component.
3. Answer client concerned questions.

After-sale:

1. Documents and certificate available in time.
2. One year guarantee for whole machine.
3. 24 hours technical support by e-mail.
4. Calling or door-to-door service.
5. User manual and detailed Videos/CD.

Q: How about the quality of your products?

A: Our machines are manufactured strictly according to national and international standards, and we take a test on each equipment before delivery.

Q: Do you provide equipment operation training?

A:  Yes. We can send professional engineers to the working site for equipment installation, adjustment, and operation training. All of our engineers have passports.

Q: How long is the delivery?

A: Delivery time: within 10-15 working days after receive the deposit.

For more information, pls contact me freely and I will reply you as soon as possible!

We not only provide customers with cost-effective high quality products, but also provide first-class service and support solutions.
