Home > Products > cultivator > 1BZD heavy duty disc harrow

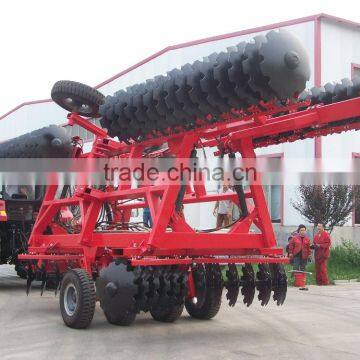

1BZD heavy duty disc harrow
- 1000 Set / Sets per Month
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Condition | New | Type | Farm Cultivator | |
| Power Type | Other, tractor | Power(W) | 100 | |
| Certification | CE | Warranty | 2 years | |
| Use | Break up the clods | Place of Origin | Shandong, China | |
| Brand Name | Yunhai | Model Number | 1LZ-7.2 | |
| Weight | 1500kg | Dimension(L*W*H) | 6600*9200*800 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
UNITES ENTIRE MACHINE
My name is claire wang----Mobile : 13793479091
Skype: claire-yuntai
Mobile: 086-137 9347 9091
QQ: 5944 04615
Email: claire(a)
Especially matchable with wheeled tractor. With shovel under hanging frame, lead screw at the end of the frame to connect roller which is used to break up clod, spring-tooth rake between shovel and roller to loosen soil. No not need to turn over soil, prepare land with onestop, with reasonable structure, easy to use.
Model | 1LZ-3.6 | 1LZ-4.2 | 1LZ-5.4 | 1LZ-7.2 |
Working Width(mm) | 3600 | 4200 | 5400 | 7200 |
Working Depth(mm) | 120 | 120 | 120 | 120 |
Dia of Disc (mm) | 460 | 460(510) | 460(510) | 460(510) |
Spacer(mm) | 170 | 170 | 170 | 170 |
Disc Assembly Angle | 3° /6° / 9° / 11° /13° | 3° /6° / 9° / 11° /13° | 3° /6° / 9° / 11° /13° | 3° /6° / 9° / 11° /13° |
Overall Dimensions (mm) | 6600×3800×800 | 6600×4400×800 | 6600×6500×800 | 6600×9200×800 |
GroundClearance(mm) | >300 | >300 | >300 | >300 |
Working Speed (km/h) | 7-9km/h | 7-9km/h | 7-9km/h | 7-9km/h |
Theoretical Work Efficiency(ha/hr) | 2 | 2.8 | 3.5 | 5 |
Matched Power(HP) | 90-100 | 100-120 | 120-140 | 150-180 |
Skype: claire-yuntai
Tel: 086-137 9347 9091-whatapp
QQ: 5944 04615
Email: agrodisc(a)
Connect person: Claire wang
wechat: claire-lily
