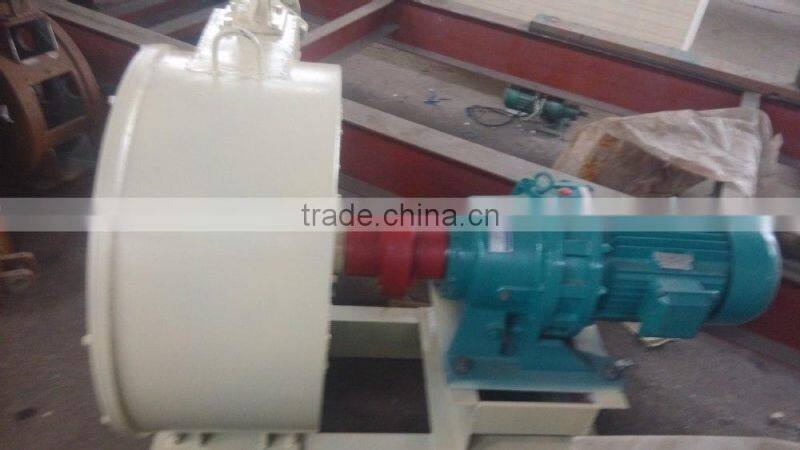

Rubber Hose Heavy Duty Industrial Peristaltic Hose Pump

 Working principle

There is a specially made rubber hose with smooth inner surface and high strength installed in the pump body. When a pair of roller rotate and squeeze the hose, the rotation and squeezing force will force the transported material flow in single direction and with no back flow. After the material in hose is transported, the squeezed hose will return to its normal shape by its elasticity and pressing force of side rollers. During this procedure, the vacuum generated will suck the material into hose cavity, and then, the sucked material will be squeezed by coming rollers and discharged from the output again. With the continuous rotation of roller, the material is sucked

and discharged continuously.

Advantages

1) Unique structure with no sealing element, no leakage, no pollution;

2) Advanced rolling technology adopted, no need of lubrication for roller;
3) High suction ability, self-cleaning ability, sucking materials in two directions;
4) Simple hose installation, simple operation, easy to assemble and maintain, lower maintenance cost;
5) Linear regulation of flow rate, limited, measuring ability;
6) No block when pumping fluid with high viscosity and foreign substance contained;
7) Long service life;
8) High delivery lift and output pressure.

Wide range  usage

The pump is especially suitable for high solid content, viscosity of the corrosive medium, and has excellent self-priming performance, smelting (gold, silver, copper, lead, zinc, tin, nickel, cobalt, manganese), phosphorus compound fertilizer, citric acid, rare earths, rare metals, inorganic salts, desulfurization environmental protection, water treatment, paper, paint and other industries has been widely applied. Specific applications are as follows:

1 oil industry drilling mud and crude oil and gasoline, kerosene and other organic solvents and fuel oil delivery;
2 chemical industry acids, bases, salts and phosphoric acid slurry, the slurry of titanium dioxide and calcium citrate; crystals, suspensions, emulsions, resins, and various liquid ooze;
3 smelting industry slurry transportation, metals fluid delivery;
4 pharmaceutical industry in drug delivery;
5 water treatment and desulfurization industry mud, stone mortar, transport of impurities; Transport

6 construction industry cement mortar;
7 food industry material handling;
8 pulp and paper industry, sulfur slurry transport; Transportation

9 ceramic industry ceramic glaze slurry;
10. paint industry, paints, coatings, latex and other transportation mobility poor materials;
11 cosmetics industry toothpaste, creams, shampoo, hair conditioner, cream, face oil;
12. beer industry yeast, diatomaceous earth, wine tank, syrup, ingredients, concentrates, liquid mixture.

Main technical parameter
