Home > Products > DAHUA Monitor Product > Dahua 1.3Megapixel 720P Water-proof IR Cctv Hdcvi Camera HAC-HFW2100D

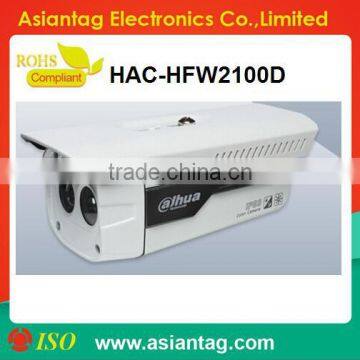

Dahua 1.3Megapixel 720P Water-proof IR Cctv Hdcvi Camera HAC-HFW2100D

FOB Price

Negotiable / Piece

1 Piece(Min. Order)

Port Shenhzhen
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Zhejiang, China		Brand Name	Dahua
Model Number	HAC-HFW2100D

Product Description

Specifications

1.3Megapixel 720P Water-proof IR hdcvi camera
1.Cheapest price
2.In stock
3.8mm fixed lens (3.6 mm, 6mm, 12mm, 16mm optional)

Dahua 1.3Megapixel 720P Water-proof IR cctv hdcvi camera HAC-HFW2100D

HDCVI---Analog camera

Upgraded to analog HD seamlessly with Low-cost and simple installation value-added solution. Go after the conventional analog system topology and give a full consideration to users’operation habit.

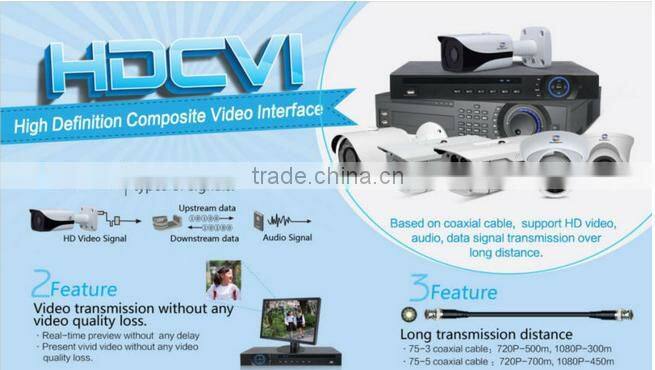

Why choose HDCVI ?

HDCVI (High Definition Composite Video Interface) is an over-coaxial-cable analog HD video transmission standard which developed in-house. The technology renders two HD video formats—1920H (1920×1080) & 1280H (1280×720) by progressive scanning.

Dahua cctv hdcvi camera HAC-HFW2100D Features:

>1/3" 1.3Megapixel CMOS
>25/30/50/60fps 720P
>High speed, long distance real-time transmission
>HD and standard definition switch
>OSD Menu, control over coaxial cable
>Day/Night(ICR), AWB, AGC, BLC, 3D-DNR,
>8mm fixed lens (3.6 mm, 6mm, 12mm, 16mm optional)
>Max. IR LEDs length 50m, Smart IR
>IP66, DC12V

Dahua cctv hdcvi camera HAC-HFW2100D Technical Specifications

Model	DH-HAC-HFW2100DP	DH-HAC-HFW2100DN
Camera
Image Sensor	1/3" 1.3Megapixel CMOS
Effective Pixels	1280(H)×960(V)
Electronic Shutter	4/25s~1/45,000s	4/30~1/54,000s
Video Frame Rate	1280×720 25 fps?1280×720 30 fps? 1280×720 50 fps?1280×720 60 fps
Synchronization	Internal
Min. Illumination	0.01Lux F1.2(0Lux IR LED on)
Video Output	1-channel BNC HDCVI high definition video output/ CVBS standard definition video output (Can switch)
Camera Features
Max. IR LEDs Length	50m, Smart IR
Day/Night	Auto(ICR) / Color / B/W
Noise Reduction	2D/3D
OSD Menu	Support
Lens
Focal length	8mm fixed lens (3.6mm, 6mm,12mm,16mm optional)
Mount Type	M12
General
Power Supply	DC12V±10%
Power Consumption	Max 7.7W
Working Environment	-30°C~+60°C/ Less than 95%RH (no condensation)
Transmission Distance	Over 500m via 75-3 coaxial cable
Ingress Protection	IP66
Dimensions(W×D×H)	Φ200.2mm×89.1mm×80.4mm
Weight	450g

Dahua cctv hdcvi camera HAC-HFW2100D Application

Our advantage

1.One-stop security solution provider help you save time&cost.
2.Good quality with competitive price
3.Professional technique supports and great service
4.Fast delivery and safe shipping way
