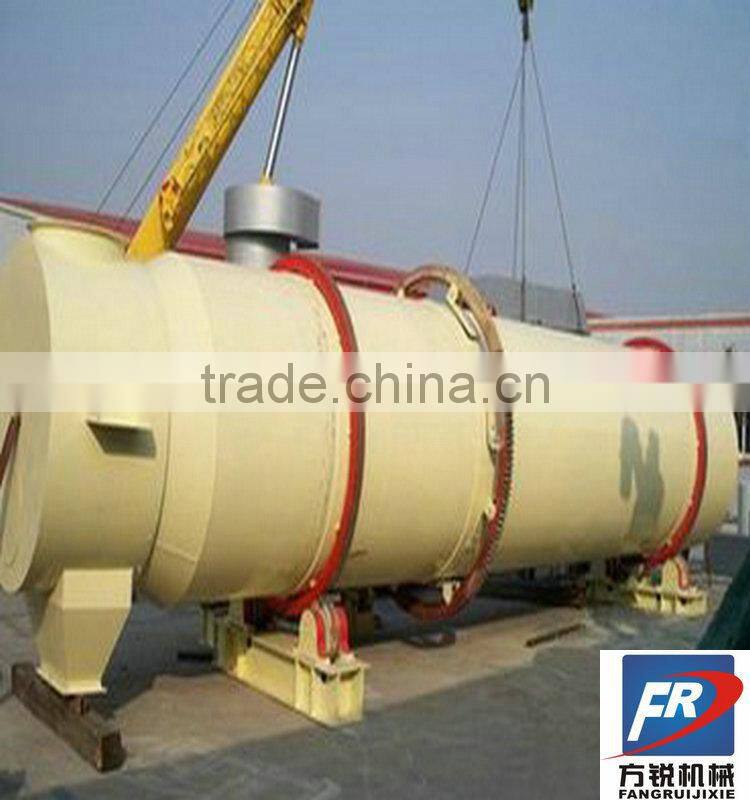

Saw Dust Dryer/sand Drying System/sand Drying Plant

What sand drying plant consist of?

The sand drying plant is formed by following 5 parts.

-Rotary body

-Sealing ring

-Lifting blade

-Driving device

-Supporting device

Working process of sand drying plant

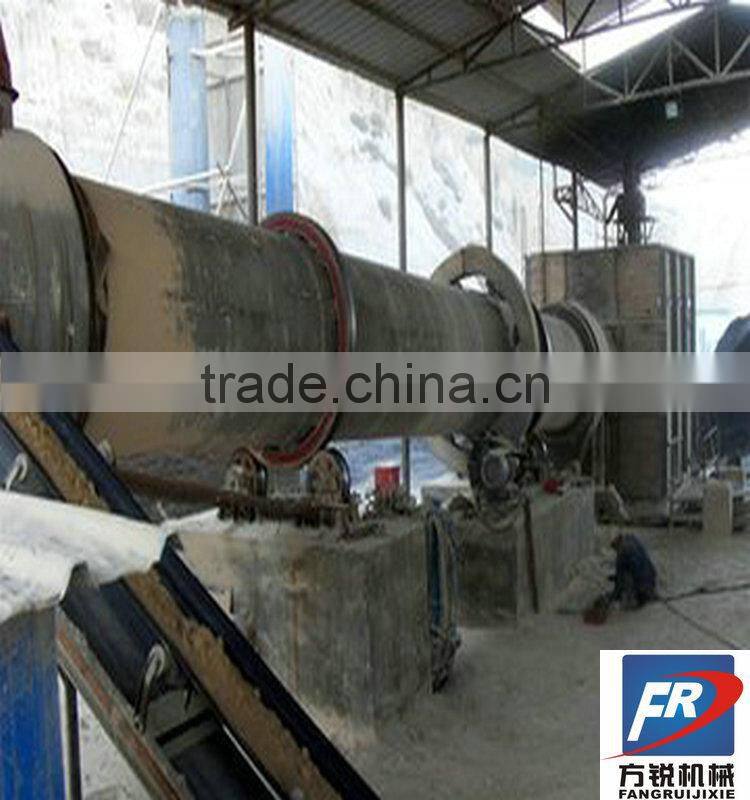

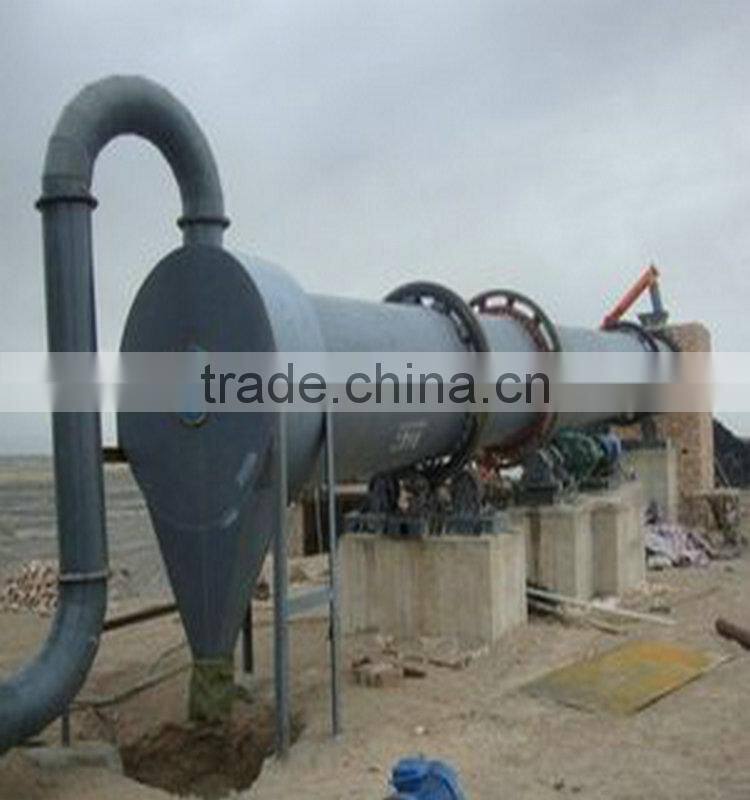

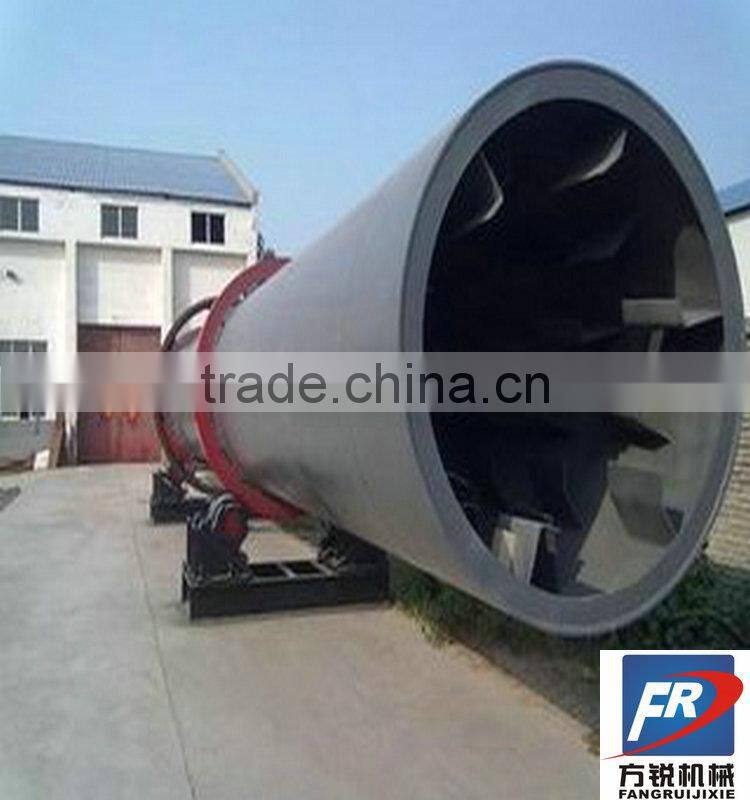

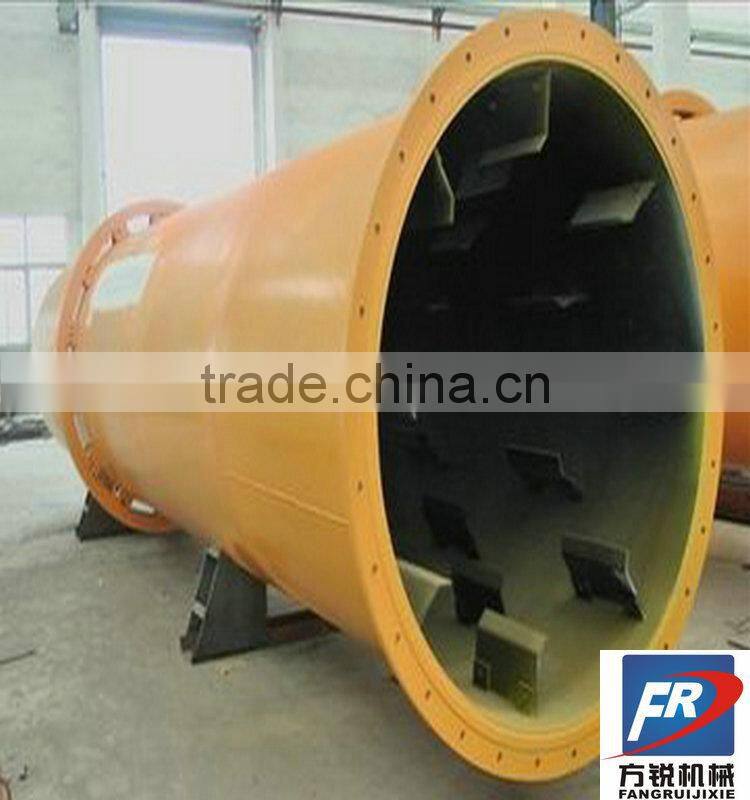

The sand drying plant is a type of industrial dryer employed to reduce or minimize the moisture content of the material. It is handling by bringing it into direct contact with a heated gas. The  sand drying plant is made up of a large, rotating cylindrical tube, usually supported by concrete columns or steel beams. The sand drying plant slopes slightly so that the discharge end is lower than the material feed end in order to convey the material through sand drying plant under gravity. Material to be dried enters the sand drying plant, and as the  sand drying plant rotates, the material is lifted up by a series of internal fins lining the inner wall of the sand drying plant.When the material gets high enough to roll back off the fins, it falls back down to the bottom of the sand drying plant, passing through the hot gas stream as it falls. This gas stream can either be moving toward the discharge end from the feed end (known as co-current flow), or toward the feed end from the discharge end (known as counter-current flow). The gas stream can be made up of a mixture of air and combustion gases from a burner, in which case the sand drying plant is called a direct heated dryer. Alternatively, the gas stream may consist of air or another (sometimes inert) gas that is preheated. When the gas stream is preheated by some means where burner combustion gases do not enter the sand drying plant.The sand drying plant as an indirect-heated type. Often, indirect heated  sand drying plant is used when product contamination is a concern. In some cases, a combination of direct-indirect heated  sand drying plant is also available to improve the overall efficiency.

Technical information for  sand drying plant

Distinct Service

1. According to your requirements on charcoal briquettes, we arrange production plan.

2. Helping our dignified customers to choose suitable machines to meet the capacity you expected.

3. Offering reasonable price to meet your budget and make sure the project is economic.

4. Welcome to visit our factory! We will demonstrate the machines to let customers know the machine how to work, you can compare quality of machines among different suppliers

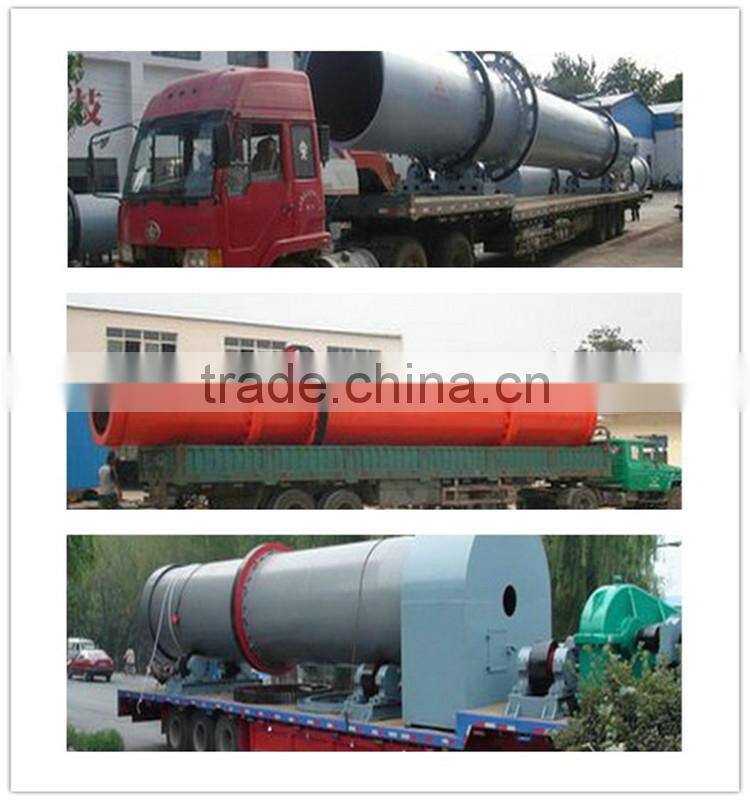

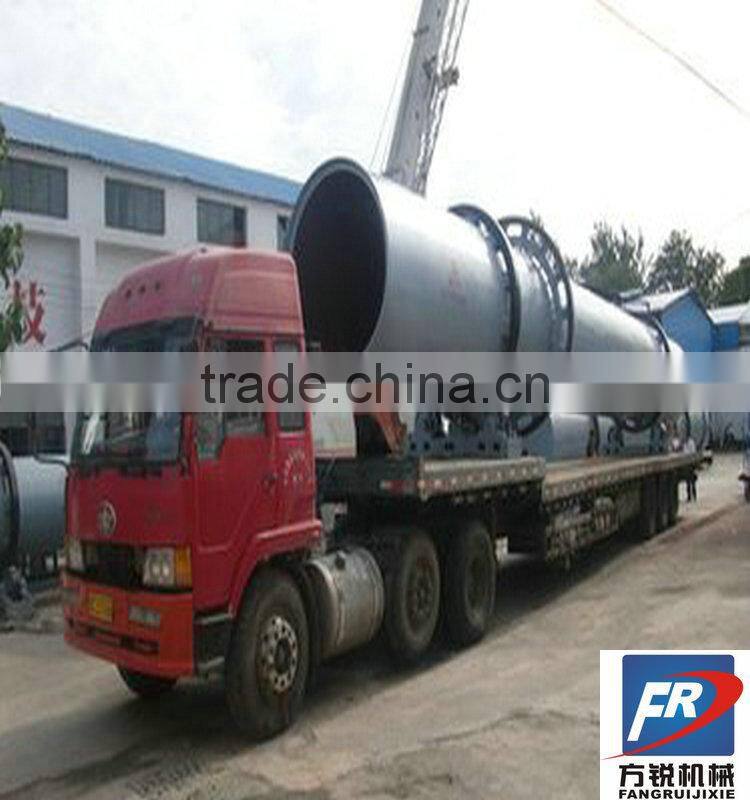

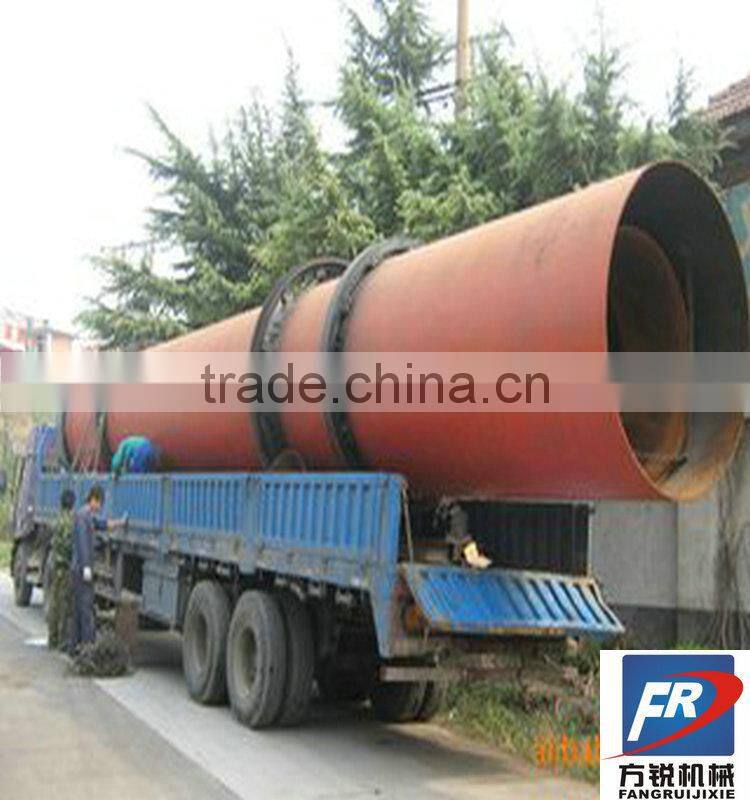

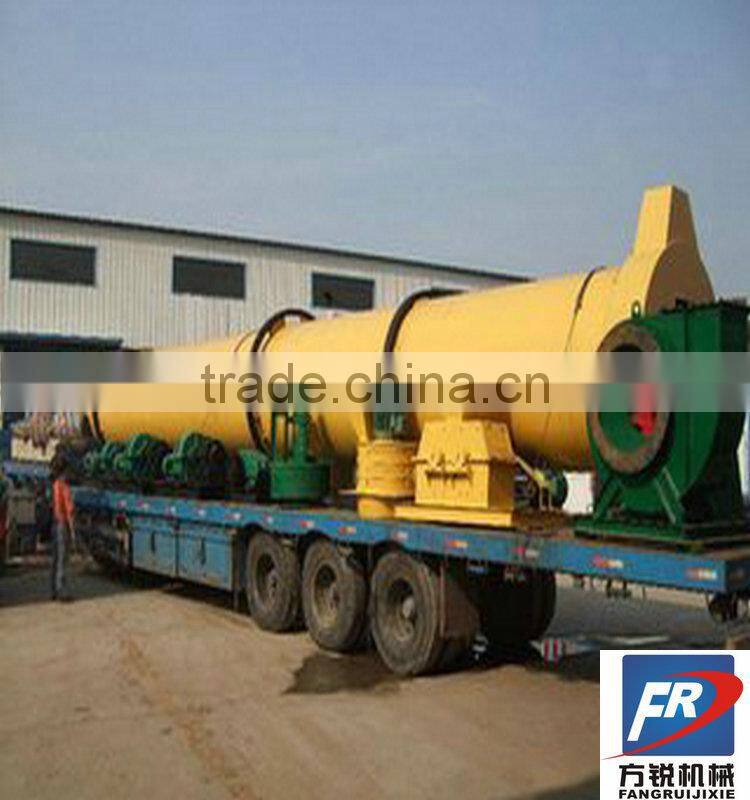

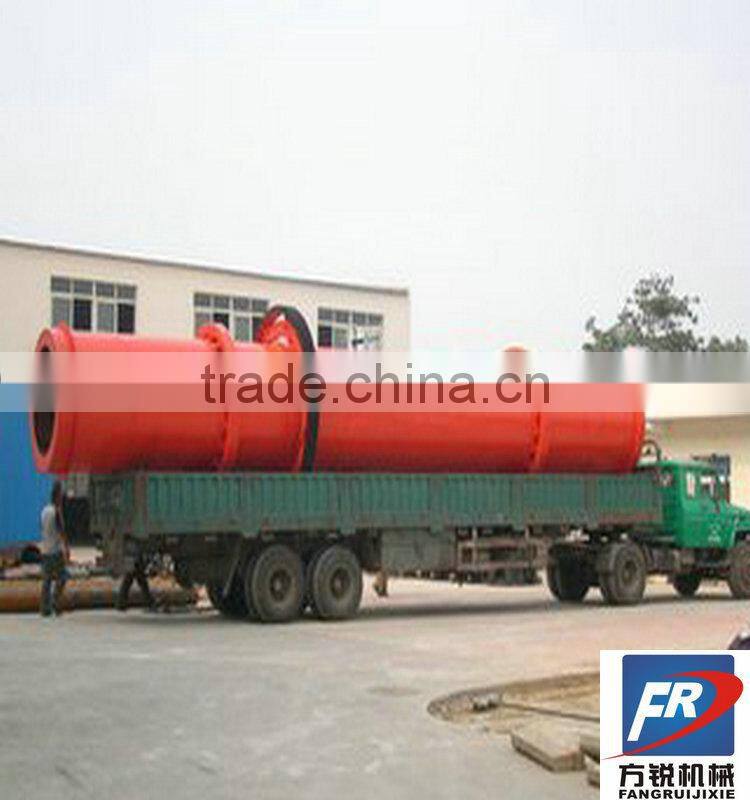

5. After finishing the machines, we will arrange shipping to make sure the cargo arrives your port as soon as possible

6. If necessary, we can send technician to your place for training and installation

7. During customer using the machines, we offer guide for maintenance, error fixing and spare parts.

If you are interested in our sand drying plant, please don't hesitate to contact us. In order to give you excellent service, please provide the following information to us first:

-What kind of raw material you are going to dry?

-Capacity you expect?

 -Primary moisture content?

 -Final moisture content?

- Available fuel for the dryer (coal, electricity, oil, gas or wind power?)

Company Introduction

Established in 1983, after 32 years’ development, we have enjoyed a very high reputation overseas due to our perfect quality, competitive price and timely shipment. Up to now, we have established long and good business relationship with many word-famous areas such as Middle East, Africa, South America. Our factory covers an areas of 8,000 square meters. We have a professional and experienced work team. Our work team has 79 staffs, including 28 technical engineers. We mainly focus on fiber cement title production line, fiber cement pipe production line, fiber cement machine, ring die pellet machine, charcoal machine, briquette machine, crusher machine, dust catcher, sand drying plant.
