Economic Price of Exterior Wall Panels Fiber Cement Board Siding Machine
- Shanghai Qingdao or according to the customers' request
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
2017 Hot Sale High Stable Performance Cement Fiber Corrugated Tile Making Machine
-
Fiber Cement Roof Tile Machine Manufacturer
-
High Stable Performance Economic Hot Selling Fiber Cement Roof Tile Making Machine
-
Charcoal Making Machine/charcoal Briquette Machine/coconut Shell Charcoal Making Machine
-
Charcoal Briquette Machine/coconut Shell Charcoal Making Machine/sawdust Briquette Charcoal Making Machine
-
Sawdust Briquette Charcoal Making Machine/charcoal Briquette Making Machine/charcoal Press Machine
Product Details
| Type | Tile Forming Machine | |||
| Tile Type | Cement | Use | Roof | |
| Production Capacity | 5500pieces/day | Place of Origin | Henan, China | |
| Brand Name | Fangrui--fiber cement boards production line | Model Number | FRS5500 | |
| Power(W) | 200kw | Voltage | 380V | |
| Dimension(L*W*H) | 48m*8m*5m | Weight | 45t | |
| Certification | CE,SGS,ISO, ISO,CE,SGS | Warranty | 1 year after selling | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Product Application
Asbestos tile making machine
Main Product Specification: 3000 x 900 x 6mm (L x W x T)
I Technical requirements of Asbestos tile making machine :
1.1 Product specification: L x W x T: 3000 x 900 x 6mm.
Special sizes can be custom-made specially.
The common size: wave height is 40mm and wave pitch is 150mm or wave height is 51mm, and wave pitch is 177mm.
(1) Theoretical capacity: 9000m2/day
(2) Pre-curing time: 12h
(3) Daily productive time: 20h
(4) Reserve of main raw material:
Dosage of fiber material should be supported for 7days.
Dosage of powdery material such as cement, quartz powder should be supported for 3days.
1.3 Basic requirement for quality of raw materials:
Limestone: SiO2≥80%, Fineness: ≥ 200 pore, sieve <10%
Cement: ordinary Portland cement with grade of above 32.5.
Fiberglass: fineness is 0.088mm, length is 15-30mm.
Fiber: asbestos or wood pulp or construction PP fiber.
Pulp: unbleached sulfate needle wood pulp or kraft pulp, pulping degree is 20 ~70°SR
Above mentioned contents are basic requirements for raw material. In some case, different raw materials also can produce qualitied products, we will confirm according to the raw materials after being analyzed.
II Raw materials:
The common proportion of material for fiber cement tile as follows:
Cement 50%, limestone powder 30%-40%, asbestos fiber 6%-8%, pulp fiber 4%-5%, and fiberglass 1%
If no asbestos tile, the proportion of materials as follows:
Cement 50%, limestone powder 30%-40%, wood pulp 8%, pulp fiber 8%, and fiberglass 1%
Quality Standard of Fiber Cement Sheets Making Line :
III Production process:
The hatschek process is the most advanced technology in fiber cement tile production line with full automatic. We can custom-made according to requirements.
IV Product advantage of non-asbestos fiber cement board machine:
This equipment is reached and development with rich experience and advanced technology, used for producing asbestos tile, calcium silicate board fiber cement board.
This machine is used PLC automatic system, pneumatic principle with less operators and simple maintenance. One shift just needed 7 workers.
The control system is included Mitsubishi System controller SX2N-64MB,PANASONIC INVERTER VF-8Z,VFO and so on.
This system is included automatic, debugging, manual function. One mold three tiles, one mold two tiles or one mold one tiles and ridge tile can be chosen.

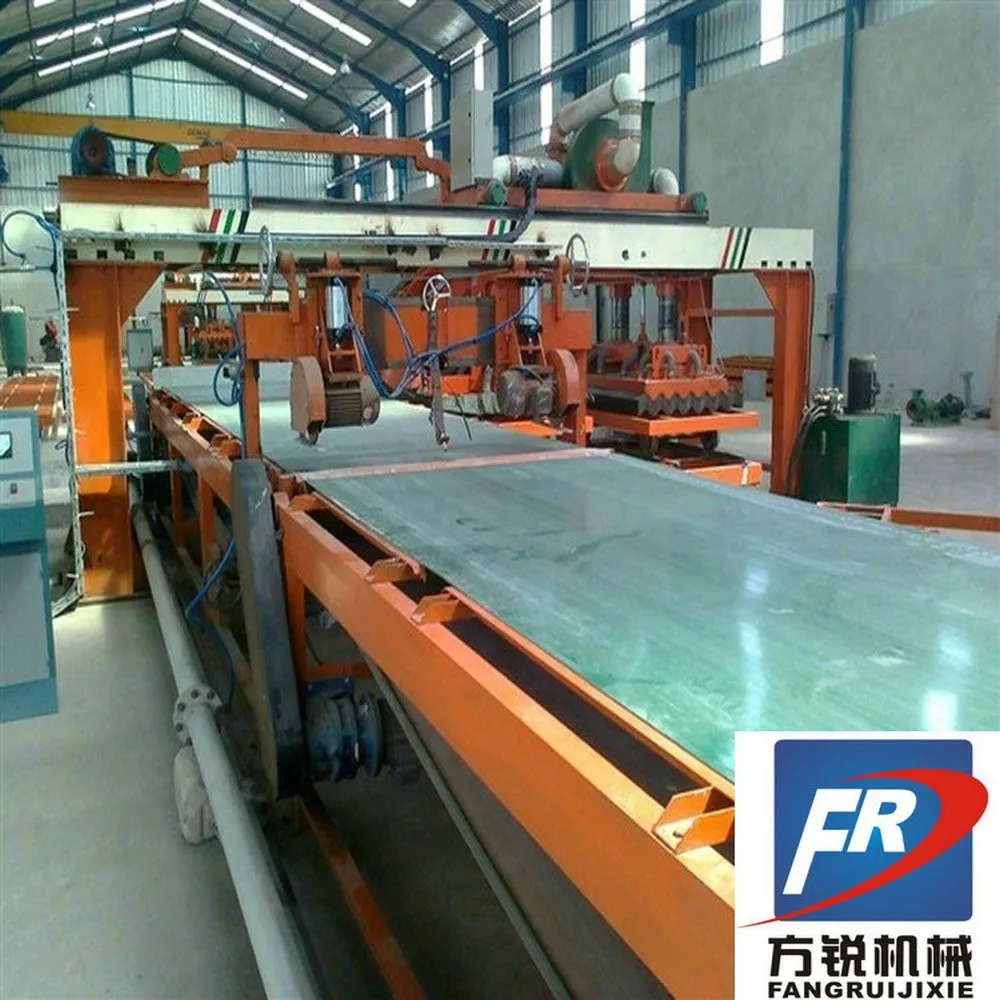

Photos of asbestos fiber cement board machine
Customer sites
The picture of the cement board
Our customers
