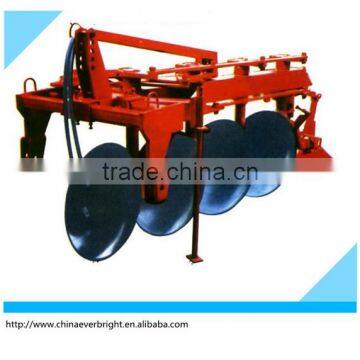

Agricultural Disc Plough for Sale

Condition	New		Type	Farm Cultivator
Power Type	Diesel		Certification	ISO9001
Warranty	1 year		Use	Farm Cultivator
Place of Origin	Shandong, China		Brand Name	EVERBRIGHT
Model Number	1LY-425		Weight	470KG
Dimension(L*W*H)	2750x1240x1430mm		After-sales Service Provided	Engineers available to service machinery overseas

Specifications

1.Reasonable structure
2.Firm and durable
3.Convenient in transit
4.Samll radius of gyration
5.ISO certificate

1LY Series Disc Plough

Introduction :

1.It has reasonable structure.

2.It is firm and durable, convenient in transit.

3.The radius of gyration is small, and easy to be adjusted and maintained .

4.It is the most advanced disc harrow product at home and abroad at present.



Application :

1.The harrow is mainly used to eliminate stubbles, crush the hard surface, return the chopped

straw to the field before ploughing and to crush the soil, level the field and preserve the moisture

of the soil etc.

2.The disc harrow can match with the caterpillar tractor or the wheeled tractor. It is highly efficient and

energy-saving, and it has a great ability to penetrate and crush the soil. After harrowing, the surface

is even, and the soil is loose.

3.It is suitable for heavy clay soil, wasteland and weedy land.

4.The design absorbs the advantages of the overseas advanced technologies. It is designed according

to the standard of Ministry of Agriculture, and the whole machine uses the combined structure,

has the square welded tube and integrated rigid harrow frame as the main body.



Specification:

Disc Plough
Model	1LY-325	1LY-425	1LY-525
Matched power (hp)	50~55	65~80	100
Overall dimension (mm)	2210x1120x1430	2750x1240x1430	3290x1360x1430
Packing dimension (mm)	2200x900x300	2800x1100x300	3250x1100x300
Total weight (kg)	410	470	530
Specification	Working width:0.75m Working depth:250mm Dia. of disc:650mm Linkage: 3-point linkage I	Working width:1.0m Working depth:250mm Dia. of disc:650mm Linkage: 3-point linkage I	Working width: 1.25m Working depth: 250mm Dia. Of disc: 650mm Linkage: 3-point linkage I



All Kinds of Disc Plough:

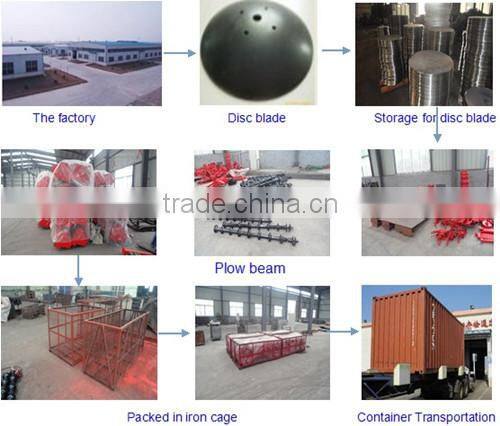

Production flat of disc plough:

Our workshop for your reference:

Package in iron cages:

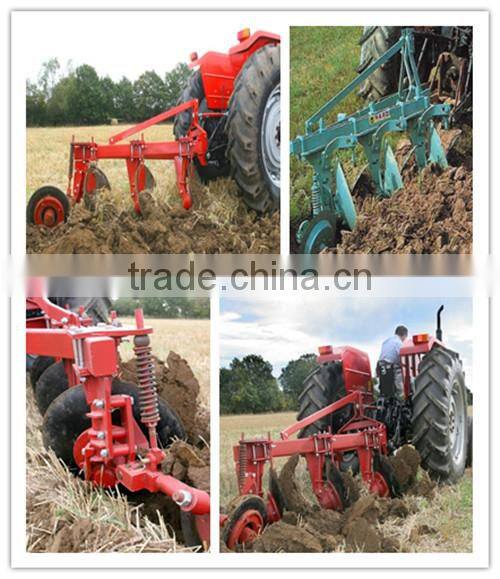

Disc plough on farmland:

 If you have any inquiry,pls contact us:
