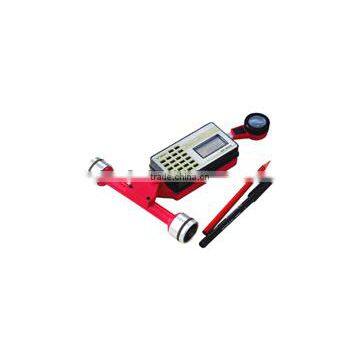

Digital Planimeter KP-90N

Specifications

Digital Planimeter KP-90N

 Technical Specifications:
Accuracy: ≤±0.2%
Measuring range:
Top-bottom: max. 328mm
Left-right: 30m from moving side
Size: 21*37.5*7cm
Continuous working: 30 hours
Measurement functions: area, sum, average value.

 Uses: construction, forestry, vessel design, agriculture estimation, teaching, research, reallocation of land, machine

design, medical science, data analysis and other activities.

Placom Digital Planimeter KP-90Nwith the most advanced functions and perfect reliability.

The most standard model of “Koizuimi Placom” KP-90Nhas made the excitingly highest attainment in the history of Placom Digital Planimeter KP-90N ever made. Measuring capacity is remarkably enlarged. Measuring by 6-digit pulse count enables to measure 100 times larger accumulative area than ordinary planimeters. Easy calculations of Cumulative and Average Value Measurement.

Applications

1.Construction and civil engineering

2.Land developing planning

3.Machine designing

4.Datalanalysis in statistics

5.Architecture and interior designing

6.Forestry area

7.Ship designing

8.Medical research

9.Agriculture

Special features of Koizuimi Placom Digital Planimeter KP-90N Measurement by 6 digit pulse count

This KP-90N can measure the area by pulse count of 6-digits. This method enables a larger cumulative measurement of area (Up to 1Om2)

Maximum cumulative measurement value of 10m2

With the measurement by 6-digit pulse count, the KP-90N Planimeter can measure a larger area by 100 times than ordinary Planimeter.

The conventional planimeter has a maximum cumulative area to measure only 0.1m2. If measurement value shows over 0.1m2 when measuring, the display is to be reset to “O”.

This requires to register the numbers of how many times these resettings are occurred.

With the New PLACOM KP-90N, there is no need of these troublesome procedures.

Easy conversion function of unit and scale

KP- 90N can convert easily the measured area value into a new area value in a newly desired unit and with a newly desired scale value.

Hold memory function

In cumulative measurement, this Hold Memory function is effectively used. If an error occurs in measuring, press C/AC key. Then last measured value is appeared by pulse count. Since previous measured values before error are stored, there is no need to another measurements from the beginning.

Automatic shifting of unit to upper unit

When the measured area value overflows the displayed figures of 8 digits, the measured area value is calculated and displayed by an upper unit. When the overflows is occurred in the uppermost unit, km2, acre, the measurement can be continued by pulse count display.

Average value measurement

In order to get better result of measurement, Mean value measurement is recommended. This measurement can be easily done on this KP-90N.

Measurement of an area with different lateral and longitudinal Scale.

Auto-power-off function for energy saving

Specifications of placom KP-90N
