2017 CEcertificate PE600X900 Stone Jaw Crusher Machine
- Qingdao Tianjin Shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Yuhong PE/PEX Series Gold Mining Equipment ,Stone Jaw Crusher Machine
-
Henan Yuhong Brand Small Mobile Diesel Engine Hammer Mill PC400x300 With Crusher Low Price For Sale
-
Henan Yuhong Brand Small Diesel Engine Jaw Crusher 250x400 For Hot Sale in Africa America Asia
-
SF-800X600 Double Stage Hammer Crusher ,double Stage Hammer Mill for Construction Waste ,brick
-
SF-800X600 Double Stage Hammer Crusher ,double Hammer Mill for the Gangue ,coal .slag
-
Less Than and Equal to 3mm Calcite Hammer Crusher ,hammer Mill
Product Details
| Condition | New | Type | Jaw Crusher | |
| Application | stone, mining,ore,Ore mining ,Limestone,CACO3,Talc | Motor Type | AC Motor | |
| Power(W) | refer to the model of the machine | Capacity(t/h) | 80-120 | |
| Place of Origin | Henan, China | Brand Name | Yuhong | |
| Model Number | PEF600X900 | Dimension(L*W*H) | 2792x2168x2250mm | |
| Weight | 17200kg | Certification | CE,ISO9001-2008 | |
| Warranty | Two years | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
2017 CEcertificate PE600X900 Stone Jaw Crusher Machine

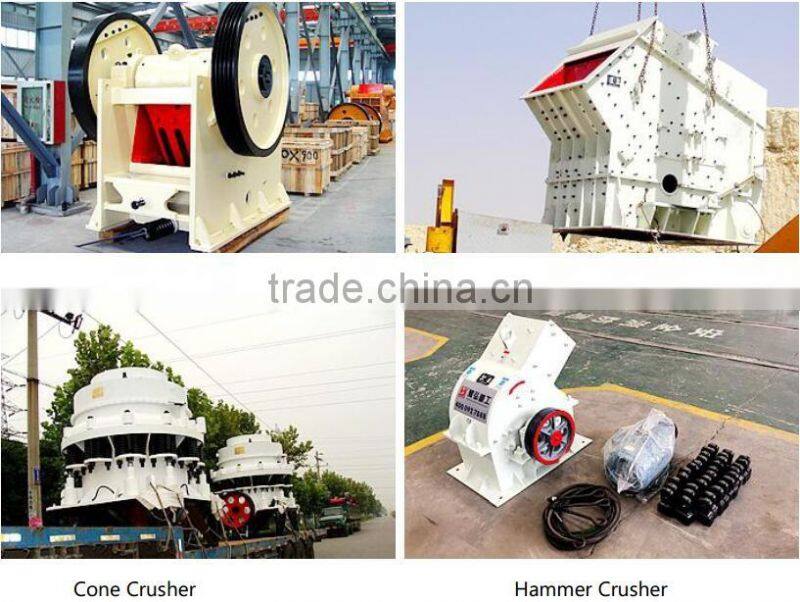

Exhibition of different models Stone Crusher

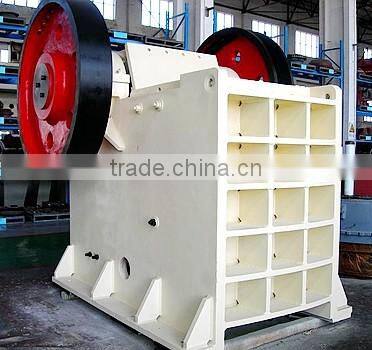

| PEF/PEX Jaw Crusher
Send inquiry |

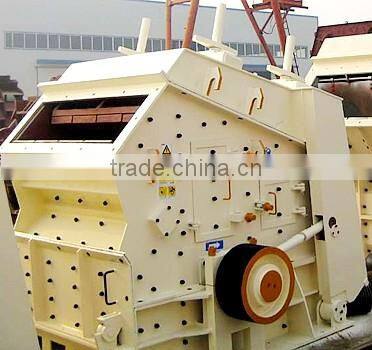

| PF Impact Crusher
Send inquiry | |
| | PY Cone Crusher
Send inquiry |

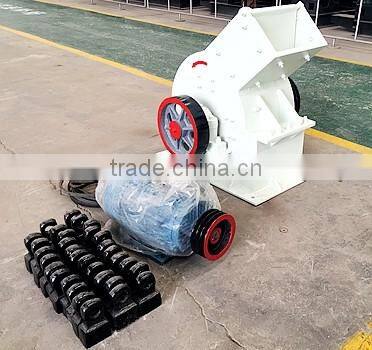

| PC Hammer Crusher
Send inquiry | |

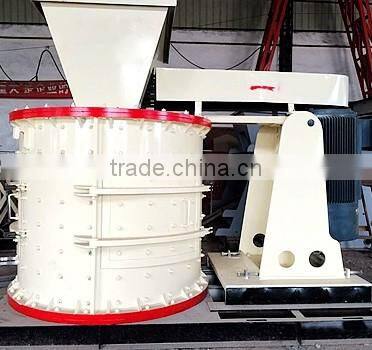

| | Vertical Combination Crusher
Send inquiry |

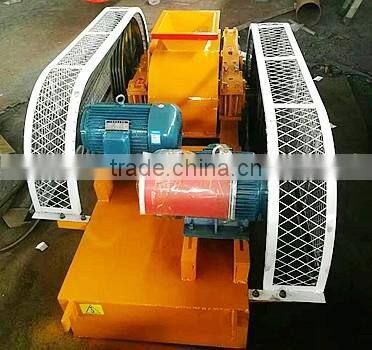

Roll Crusher
Send inquiry | |
Jaw crushers are typically used as primary crushers, or the first step in the process of reducing rock. They typically crush using compression. The rock is dropped between two rigid pieces of metal, one of which then move inwards towards the rock, and the rock is crushed because it has a lower breaking point than the opposing metal piece
Jaw crusher movement is obtained by using a pivot point located at one end of the “swing jaw”, and an eccentric motion located at the opposite end.
Working Principle:
The motor transmits power through belt, drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft. The angle between toggle plate and moving jaw plate increases when moving jaw moves . So the moving jaw moves towards the fixed jaw. The stuff will be crushed in this process. The angle between toggle plate and moving jaw decreases when moving jaw moves down, the moving jaw moves leaves fixed jaw by pulling rod and spring, the final crushed stuff will be discharged from the outlet.
Technical Parameter
Model | Max feeding size | Adjustable discharging opening | capacity | eccentrical axle speed rate | Motor power | weight | Overall Dimensions |
PE-150×250 | 125 | 10-40 | 1-3 | 250 | 5.5 | 0.8 | 720×660×850 |
PE-200×300 | 180 | 15-50 | 2-6 | 260 | 7.5 | 1.2 | 910×750×990 |
PE-200×350 | 180 | 18-70 | 3-10 | 260 | 11 | 1.5 | 1000×870×990 |
PE-250×400 | 210 | 20-60 | 5-20 | 300 | 15 | 2.8 | 1300×1090×1270 |
PE-400×600 | 340 | 40-100 | 16-60 | 275 | 30 | 7 | 1730×1730×1630 |
PE-500×750 | 425 | 50-100 | 40-110 | 275 | 55 | 12 | 1980×2080×1870 |
PE-600×750 | 500 | 150-200 | 80-240 | 275 | 55 | 15.8 | 2070×2000×1920 |
PE-600×900 | 500 | 65-160 | 50-180 | 250 | 55 | 17 | 2190×2206×2300 |
PE-750×1060 | 630 | 80-140 | 110-320 | 250 | 110 | 29 | 2660×2430×2800 |
PE-800×1060 | 640 | 130-190 | 130-330 | 250 | 110 | 29.8 | 2710×2430×2800 |
PE-830×1060 | 650 | 160-220 | 150-336 | 250 | 110 | 30.7 | 2740×2430×2800 |
PE-870×1060 | 660 | 200-260 | 190-336 | 250 | 110 | 31.5 | 2810×2430×2800 |
PE-900×1060 | 685 | 230-290 | 230-390 | 250 | 110 | 33 | 2870×2420×2940 |
PE-900×1200 | 750 | 95-165 | 220-450 | 200 | 110 | 52 | 3380×2870×3330 |
PE-1000×1200 | 850 | 195-265 | 315-500 | 200 | 110 | 55 | 3480×2876×3330 |
PE-1200×1500 | 1020 | 150-350 | 400-800 | 180 | 160-220 | 100.9 | 4200×3300×3500 |
PE-1500×1800 | 1200 | 220-350 | 500-1000 | 180 | 280-355 | 122 | 5160×3660×4248 |
PE-1600×2100 | 1500 | 300-400 | 1300-2200 | 160 | 350-380 | 150.6 | 6210×4013×4716 |
PEX-150×750 | 120 | 18-48 | 8-25 | 320 | 15 | 3.8 | 1200×1530×1060 |
PEX-250×750 | 210 | 25-60 | 13-35 | 330 | 30 | 5.5 | 1380×1750×1540 |
PEX-250×1000 | 210 | 25-60 | 16-52 | 330 | 30 | 7 | 1560×1950×1390 |
PEX-250×1200 | 210 | 25-60 | 20-61 | 330 | 37 | 9.7 | 2140×1660×1500 |
PEX-300×1300 | 250 | 20-90 | 16-105 | 300 | 55 | 15.6 | 2720×1950×1600 |

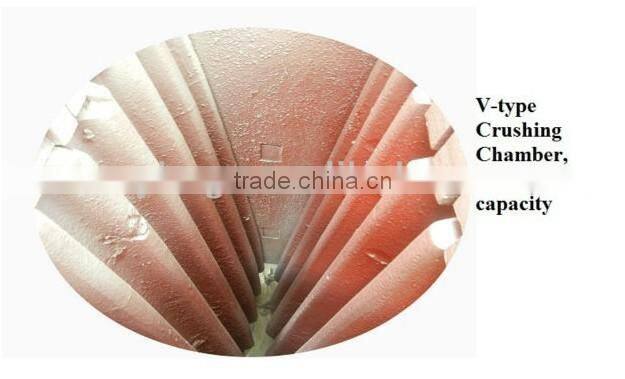

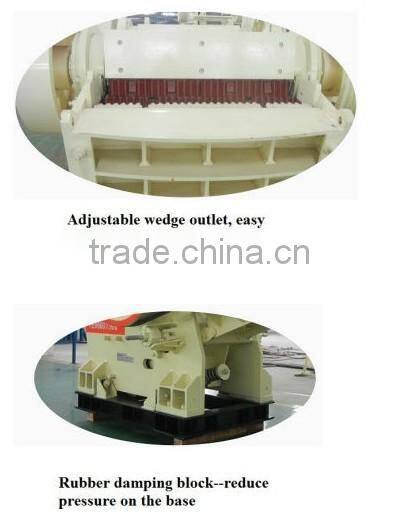

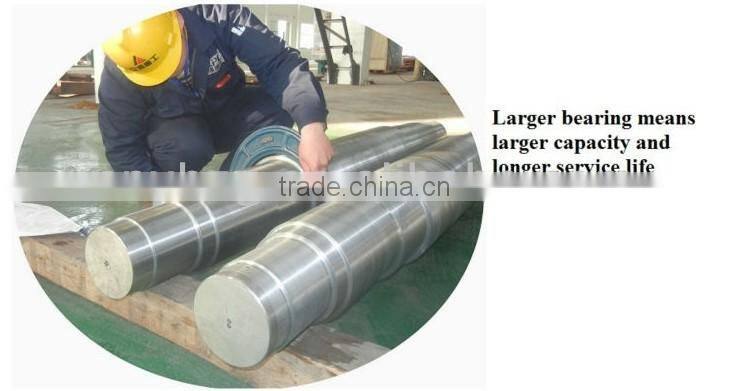

1.Advantages of the Stone Jaw Crusher Machine

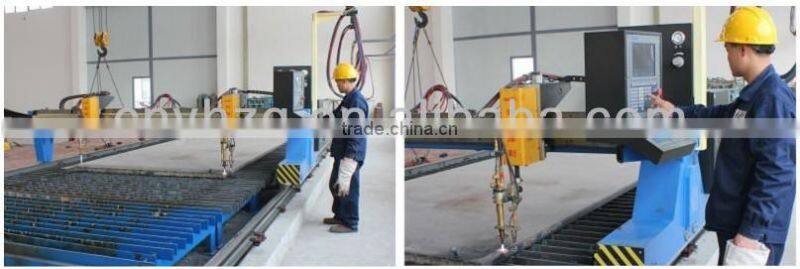

2.Forging cutting process of the Stone Jaw Crusher Machine :
3.welding process of the Stone Crusher Machine:
4.Assembling process of the Stone Crusher Machine :

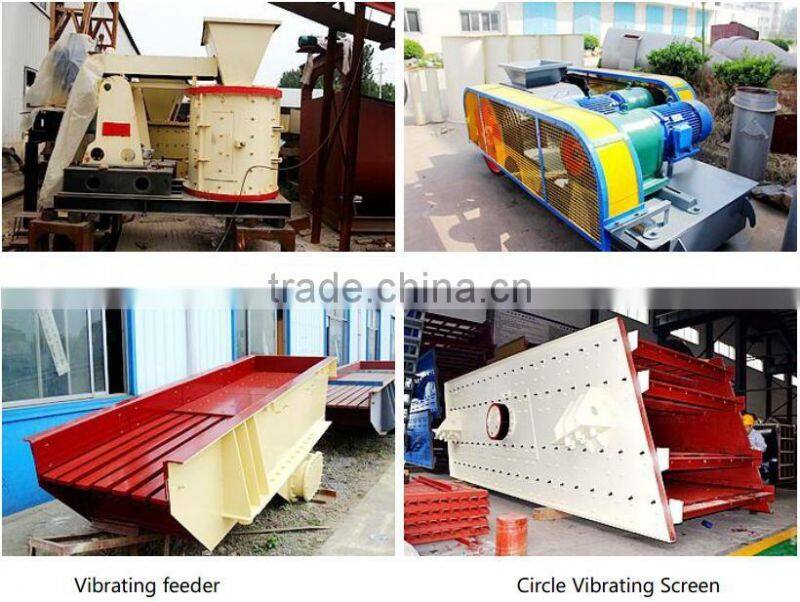

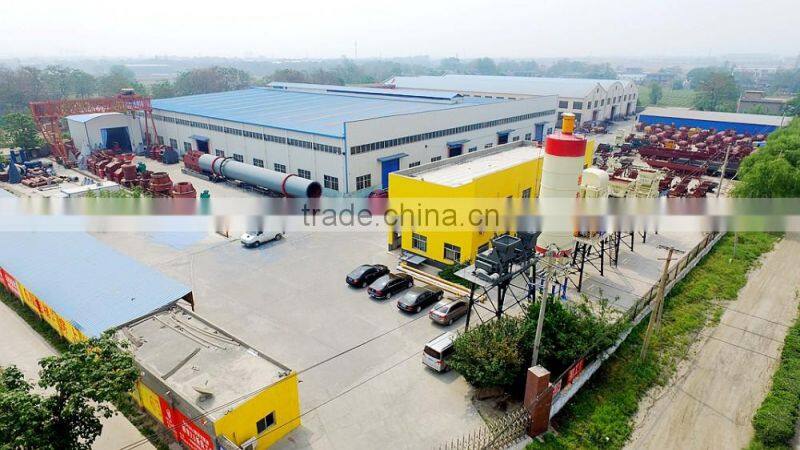

Our henan YUHONG heavy machinery co., ltd. (YUHONG FROUP) have rich experiences in designing and producing the rotary dryer for more than 20 years. Our YUHONG rotary dryer sales all over the country as well as we are expanding the rotary dryer overseas market. We hope to help more rotary dryer users to get strong quality rotary dryer with the reasonable price. Our YUHONG heavy machinery co., ltd. has the whole manufacturing machine to producing the rotary dryer, the pictures below are our workshope rolling steel plate pictures then to produce the rotary dryer's shell. We mainly have kinds of fertilizer equipments,for example the jaw crusher,imapct crusher,cone crusher,roll crusher ,hammer crusher,VSI crusher,vertical combination crusher.and matching machine,the vibrating screen,vibrating screen machine,etc. Our YUHONG heavy machinery co., ltd has a professional rotary dryer technical team of 10 engineers. We hope we can help more persons to solve the drying system problems all the time. We are sincere to invite you to visit our company and communicate more with us.
In order to find the suitable models and design the best stone crusher plant or sand making line for you, pls kindly inform us the following information:
1.What's kind of your raw material?
2. What's your stone feeding size?
3. What's the capacity ? (T/H)
4. What's the final stone size request?
if you need others crushing machine ,please send Message to me .thanks .
