Electric Cooling System for Fertilizer Production Line
- Qingdao/Shanghai/Tianjin
- T/T Credit Card
You May Like
-
Fertilizer Cooling Machine for Fertilizer Production Line
-
Rotary Cololing Machine for Chicken and Cow Manure Fertilizer
-
Rotary Drum Cooler of Fertilizer Machine Equipment
-
Bio Fertilizer Machine - Rotary Cooling Equipment
-
High Quality Fertilizer Granules Chilling Machine
-
Wood Pellet Cooling Machine/chicken Manure Pellet Cooling Machine
Product Details
| Product Type | Fertilizer | Place of Origin | Henan, China | |
| Brand Name | Hengyun | Model Number | HY10*1 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
electric cooling system for fertilizer production line

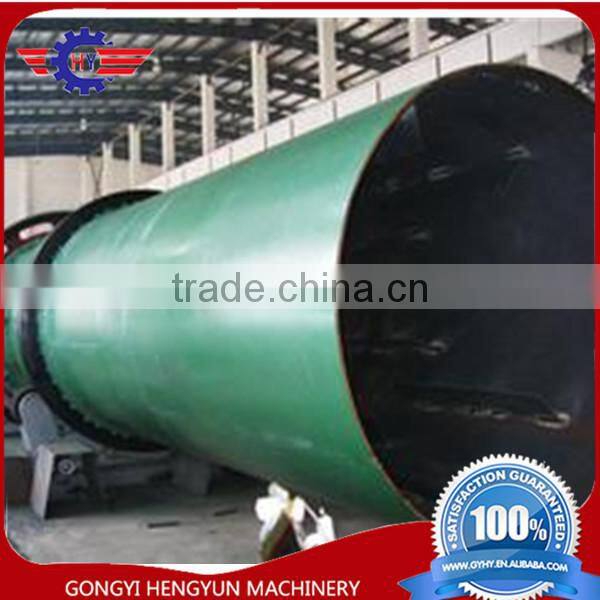

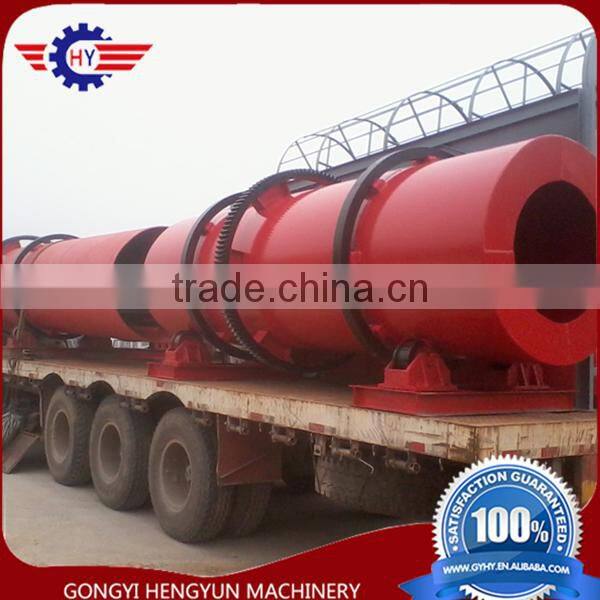

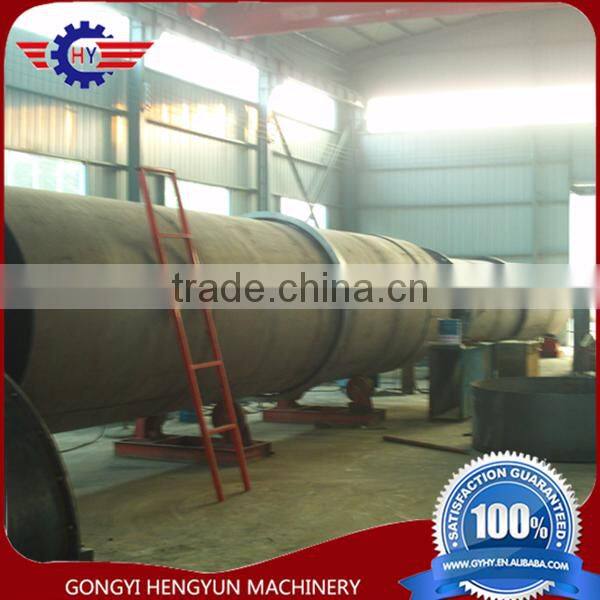

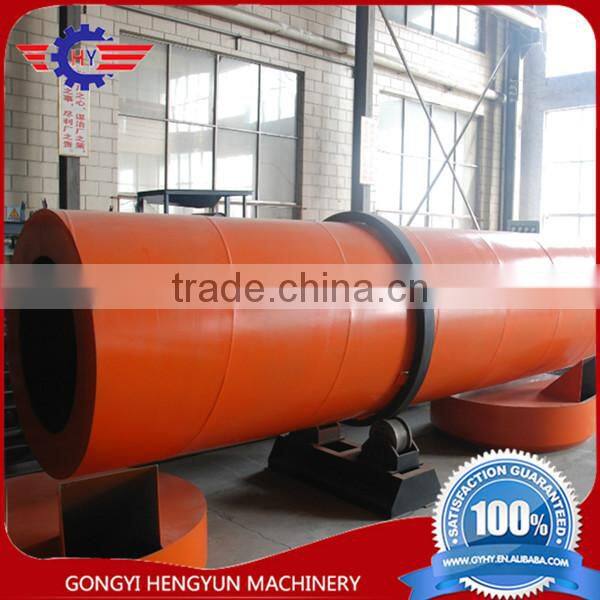

Description for rotary drum cooling machine
fertilizer rotary drum cooling machines is suitable for cooling and drying the compound fertilizer , and can directly cool the granules of compound fertilizers quickly from 65-85 degrees to close to room tempetayre , it's good for facilitate the timely packaging to prevent caking on stroage process
1) Cooler used for the production of compound fertilizer, cool fertilizer with certain temperature and particle size.
2) Use dryer for together can greatly improve the cooling rate, reduce labor intensity and improve the quality, further remove moisture, reduce the grain temperature of fertilizer.
3) At the same time can also be used for cooling other powder, granular materials.
Parameter for rotary drum cooling machine
Model | Cylinder
| Output(t/h) | Power (kw) | Weight(T) | ||
Inside diameter (mm) | Dip (°) | Rotary speed (r/min) | ||||
HY10 | 1000 | 2.5 | 6.42 | 2-4 | 5.5 | 7.0/8 |
HY12 | 1200 | 2.5 | 6.5 | 6-8 | 7.5 | 10.2/10 |
HY15 | 1500 | 2.5 | 5.1 | 8-12 | 15 | 17/12 |
HY18 | 1800 | 2.5 | 4.5 | 12-16 | 18.5 | 22/14 |
HY20 | 2000 | 2.5 | 4.66 | 18-22 | 22 | 34/16 |
HY22 | 2200 | 2.5 | 3.92 | 20-24 | 37 | 43/18 |
HY24 | 2400 | 2.5 | 3.6 | 22-28 | 45 | 58/20 |
HY26 | 2600 | 2.5 | 3.42 | 24-30 | 55 | 74/22 |
HY28 | 2800 | 2.0 | 2.81 | 26-32 | 75 | 86/22 |
HY30 | 3000 | 2.5 | 2.6 | 28-34 | 110 | 120/24 |
HY32 | 3200 | 1.8 | 2.63 | 30-36 | 132 | 140/26 |
HY34 | 3400 | 2.0 | 2.51 | 38-42 | 132 | 176/30 |
HY38 | 3800 | 2.0 | 2.29 | 45-50 | 315 | 190/32 |
