High capacity wood chips making machine
- Qingdao
- T/T
You May Like
Product Details
| Condition | New | Place of Origin | Henan, China | |
| Brand Name | Fumin | Model Number | 800 | |
| Voltage | 380V | Power(W) | 30kw | |
| Dimension(L*W*H) | 1.9*0.7*1.2m | Weight | 520kg | |
| Certification | ISO | Warranty | One year | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
Specifications
1.Wood chips making machine2.30kw
3.Capacity 3t/h
4.Wood diameter < 20cm
5.Wood log,wood board
1.Bigger capacity and the particle size can according to your requirement.
2.High automaton,just need one person or two person feed the big wood log in to the mouth or belt conveyor then it can chipping automatically.
3.Wood chips making machine can crush wood log to wood chips of size 15-35mm thick and 3-5cm long ,which is ready to have a further crushing process by the next crusher.
Specification of wood chipping machine:
Model | 600 | 700 | 800 | 950 | 1150 | 1410 |
Power(kw) | 18.5 | 18.5 | 30 | 37 | 55 | 90 |
Rotation(r/m) | 600 | 600 | 550 | 550 | 600 | 600 |
Mouth(mm) | 180*150 | 190*200 | 200*200 | 230*250 | 300*330 | 400*400 |
Capacity(t/h) | 1/1.5 | 2.5 | 3 | 5 | 10 | 12 |
Dimension(m) | 1.5*0.6*1.1 | 1.5*0.7*1.1 | 1.9*0.7*1.2 | 1.9*0.8*1.5 | 2.6*1.2*1.8 | 2.9*1.4*2.4 |
Raw material
1.Wood log diameter < 40 cm (Model 1500,power 110kw ) .
2.First process thickness15-35mm,length 30-50mm Wood chips.

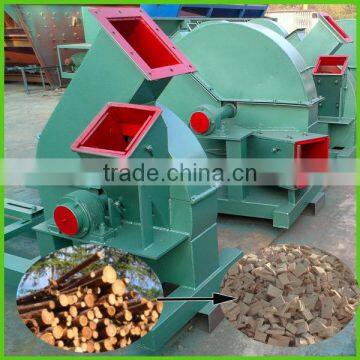

Photoes of wood chips making machine
Customer choose service
1. Manual feeding and automatic feeding
2. With discharging conveyor and without.
3. Fixed type and mobile type wood crusher machine (Add wheel and tractor).
4.All these sevices can be choose at the same time.
To know more to contact us :
Contact Person :Tom
Position:Salesman
Cell phone :0086 13526743457
Skype:tomorrow8853
Email:tom@
