Straw Biomass Briquette Machine 33mm Factory-outlet

straw biomass briquette machine

Note:

1:All the flat-die machine above are all multifunction that can product ¢ 8mm-¢33mm particles.

2: The price listed above including conveyor and power distribution cabinet the same as the picture, but not including the fee of pulverizer and transportation.

3. We have different types of Biomass Briquetting Machine( Wood Pellet Machine) in stock, please contact me if you need any help, it is my pleasure to offer the most professional suggestions and  recommend the most suitable equipments to you in according to the raw materials of yours. The same as the principles we insist on in developing our domestic market, we always believe that it is our duty to help clients to purchase the most suitable equipments but not the most expensive ones.

"Straw Coal" Introduction

"Straw Coal" refers to the fuel which is made through grinding, pressing, increasing density with stalk and solid waste as raw material, for example: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc.

Bio-fuel molding machine is the best equipment to generate revenue from agro-forestry waste and to produce Green energy to protect the global environment. The awareness of using Eco-friendly & Non-conventional Bio-coal/Bio-fuel is increasing day-to-day with the increasing of the conventional fuel cost.

"Straw Coal" Features:

  Straw coal is a kind of new-style energy with renewable, environmental protection, biomass clean and low cost. It is widely used of heating, biomass boiler, household gasification furnace, industrial boiler, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental protection as well as the higher costs of industry fuel, and it also can be used as the fodder with high nutrition released under high temperature after briquetting and convenient to store.

After forming the straw charcoal, the fuel boast smaller size with greater weight, high burning rate , easy to store and convenient to transport, and its size is only equal to 1 / 30 of the original straw and its density is 0.9-1.4g / cm3, and its calorific value can reach about 3500-5500 kilocalorie, so it can be called as high-volatile solid fuels.

General Survey of straw pellet making machine

1. Bio-fuel Briquetting Machine is a full set of mechanized production equipment. It can convert biomass raw material and solid waste into energy fuel with high density.  It is a special equipment of compressing such materials into blocks.

2.This equipment is suitable for various kinds of materials whose moisture content is less than 30%.The machine is fully automatic electric heating, and can adjust the humidity of materials to deal with problems of congestion and not forming.

3.Straw-fuel Briquetting Machine is widely used in household stove, heating furnace, hot water boilers , industrial boilers, etc.

4. The machine has advantage of simple structure, easy operation, high automation, and less labor.

5. Well adaptable: it could put all kinds of raw material into molding machine (If larger, crusher should be used).

6. High Automation: 3 workers are enough to operate all the process.

7.The wide scope of raw material: the corn stalks, wheat straw, cotton stalks, rice straw, rice husk, peanut shell, corn cob, branches, leaves, sawdust and other crops in rural areas , solid waste, furfural-residue, edible fungus dregs,and Chinese herbal medicine residue etc. All can be used as raw material.

Character of Finished Products

1.Straw-coal is a kind of new-style energy with renewable, environmental protection, high efficiency and low cost.

2.It is widely used of heating, hotels, restaurants, bath in industries as heat source, solved the problem of the coal boiler environmental pollution as well as the higher costs of industry fuel .

3.The finished products can replace coal. For the advantage of their great density,the straw fuel have much more calorific value than the same quantity of firewood. They can be used instead of coal or wood in domestic solid-fuel stoves as well as in industrial furnaces.

Working Principle of Factory-outlet :

1. Forming principle: with the interaction of the pressure between flat-die and pinch roller and the friction of die hole taper ,the raw materials can be formed by the self-bounded fiber of the straw materials without any added bonding agent.

2. Wide Material adaptable: adapt to a variety of biomass materials in shape, raw straw material with the length from powder to 50mm and the moisture content10-30% all can be processed.

3. Electric heating function: full automatic electric heating device can meet the needs of forming temperature and auto-add raw materials to machines and adjust the density of finished products.

4. Wheel pressure automatic adjustment function: the use of Bi-direction Thrust bearing principle to adjust the pressure angle automatically, so that the molding machine can avoid raw material squeezing and does not work ,to ensure the stability of forming products.

5. Easy Operation: with high degree of automation, only three people are enough, it is both ok to load materials manually and automatic loading by conveyor.

6. Process of the entire link: raw materials acquisition→ crushing → softening →convey to the briquetting machine → forming the shape of cylinder→put the finished product in storage

Our advantages of Factory-outlet Bio-fuel Briquetting machine:

1. We have more than 9 years experience of manufacturing Bio-fuel Briquetting Machine; we have customers from India, UK, Nigeria, Korea, Republic of Serbia, Ethiopia, Vietnam, and so on. We take the quality seriously, all steps from raw material purchasing to the products export has be in control by our IQC, PQC, OQC. For us, we focus in the end-user and high -end customer who request quality products & service.We are proud of that our customers always satisfy with all of our works.

2.As a professional manufacture of high quality Charcoal/biomass Briquetting Plants for forestry wastes, we specialized in Briquetting Equipments, including Charcoal/Biomass Briquetting Machine, Wood Pellet Machine, and associated equipments that are Straw Crusher, Drying Machinery etc.

3.We have our own factory, it make sure the delivery time and service commitment. As you know, many companies are just foreign trade corporations so the quality and after-sale service is hard to assure. We have professional technicians to offer the best after-sale service.

4.Our main products JMXseries Strawcoal Molding Machine is the most reliable machines developed by our company and through crushing, pressure, increasing the density of the raw material to form the cylinder shape. We have the equipment with large, medium and small series available which have won a number of national patents including Invention Patent: 200,810,218,916.9, Utility Model Patents: 200,820,202,965.9, Design Patents: 200,830,215,987.4 and this field enjoys energy conservation, high effective, user-friendliness and convenient operation.

 Service Commitment

     With strong technical force, sound management system, and first-class sense of quality, we can achieve maximum reducing of maintenance ratio during the processing of machine operation.

1. We can send our technician to your factory to debug the products and on-site training, and you shall bear the expenses of round-trip air ticket and the expenses of board and loading, and you should also bear the wages of our technician for about $ 50 /day, generally speaking, it needs about 2 days to grasp the operation skill.
2. It is also ok for your workers to come to our factory to receive training, and you shall bear all the expenses of your workers.  Detailed Information of the Birquetting Machine

The Operation Process of Henan Fumin Biofuel Briquette Machine

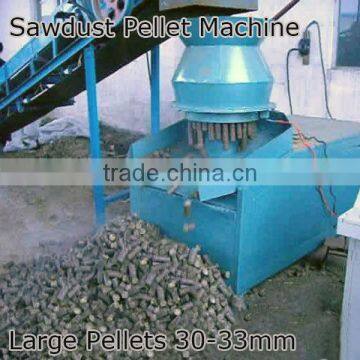

Final Products (Large Particles)

Delivering of Fumin Equipments

More about Henan Fumin

Any more information ,pictures, workng conditions you want to know, please contact me freely.
