Customers favorite high efficiency CE approved small animal grinder mill

FOB Price

US$ 1,000 - 15,000 / Set

1 Set(Min. Order)

Port Qingdao Dalian Tianjin Lianyungang Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Henan, China
Brand Name	Hengmu	Model Number	9Z
Type	Chaff Cutter	Voltage	380v
Power(W)	15kw	Dimension(LWH)	Due to the capacity
Weight	340 kg	Certification	CE,ISO,SGS,TUV
Warranty	1 year	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Hot-sale good quality CE approved small animal grinder mill

Product Description

1.The wide usage of small animal grinder mill :

Suitable for cutting green and dry corn stalk,grass, rice and wheat stalk. The processed mass can be

used to feed cattle, goats, deer, and horses. It can also processed cotton stalk,bark,branches,

They can also be used to generate electricity, make paper , artificial board and extract alcohol.

2 .The main feature of small animal grinder mill :

1. Steel-framed structure, small, light, and easy to move.

2. With safety device designed to avoid accidents caused by knives knocking into each other the whole machine is safe and reliable.
3. Applying advanced hay-conveying structure with hay-conveying rollers (for whose patent we have been awarded), the cutter conveys hay automatically and smoothly with a high speed, so it works efficiently.
4. Universal joints used as roller transmission with compact structure, the cutter runs flexibly and is easy to take apart and also easy to install.
5. The blade made of high-quality steels is refined through special technological process, so it is especially wear-proof. The cutter uses high-strength bolts, and is safe and reliable.
6.The outer covering of thickened steel plates is wholly die-cast through constant welding with the pressed trade mark, so the whole machine is artistic and in good taste and able to stand wear and tear.
7.Lowest price for the same productivity

3.The technical parameter of small animal grinder mill:

9Z-4C

Type		9Z-4C	9Z-4C trailer type
Mating power	Motor (kw)	Power(kw)	5.5
		revolving speed(r/min)	1440
	Diesel trailer	type of belt drive	Belt drive	Pto shaft
		Power (kw)	12-15
		revolving speed(r/min)		540
		tractor trailer type		Traction driven
Dimensions		Size (mm)	63010101300
		Operating size(mm)	173715752315	269012102390
Weight (kg)			280	340
Cutterhead speed(r/min)			800	800
Blade			4
The quantity of the shaft				6
triangular belt			B1800 3	B1350 3

Type
Length of cut grass 16mm Uniform continuous feed	Maize straw(78%)	4t/h
	Maize straw(17%)	1.6t/h
	Straw (17%)	1.3t/h
	Wheat straw (17%)	1t/h
	Alfalfa (17%)	1.5t/h
Length of cut grass		17,22,34,44(mm)
The blow distance of final product		10-15(m)

9Z-6A

Type		9Z-6A	9Z-6A trailer type
Mating power	Motor (kw)	Power(kw)	7.5
		revolving speed(r/min)	1440
	Diesel trailer	type of belt drive	Belt drive	Pto shaft
		Power (kw)	15-20
		revolving speed(r/min)		540
		tractor trailer type		Traction driven
Dimensions		Size (mm)	75513931585
		Operating size(mm)	214716002756	311015002866
Weight (kg)			400	460
Cutterhead speed(r/min)			650	650
Blade			3/4
The quantity of the shaft				6
triangular belt			B2150 3	B1400 3

Type
Length of cut grass 16mm Uniform continuous feed	Maize straw(78%)	6t/h
	Maize straw(17%)	2t/h
	Straw (17%)	2t/h
	Wheat straw (17%)	1.5t/h
	Alfalfa (17%)	2.5t/h
Length of cut grass	2 blades	18,27,38,53(mm)
	3 blades	12,18,25,35(mm)
	4 blades	9,4,19,27(mm)
The blow distance of final product		5-8mm

9Z-9A

Type		9Z-9A	9Z-9A trailer type
Mating power	Motor (kw)	Power(kw)	15
	Motor (kw)	revolving speed(r/min)	1440
	Diesel trailer	type of belt drive	Belt drive	Pto shaft
		Power (kw)	25	25-50
		revolving speed(r/min)		540
		tractor trailer type		Traction driven
Dimensions		Size (mm)	262017201850	273518001960
Dimensions		Operating size(mm)	262021404110	351018004210
Weight (kg)			880	880
Cutter revolving speed(r/min)			500
Blade			3
The quantity of the shaft				8
triangular belt			B3000 5	B1900 4

Type
Length of cut grass 16mm Uniform continuous feed	Maize straw(78%)	9t/h
	Maize straw(17%)	3.5t/h
	Straw (17%)	4t/h
	Wheat straw (17%)	3t/h
	Alfalfa (17%)	3.5t/h
Length of cut grass	3 blades	12,18,25,35(mm)
The blow distance of final product		10-15(m)

9Z-2.5

Type
Mating power	Motor	Power(kw)	4
		revolving speed(r/min)	1440
		motor pulley(mm)	105
	diesel tractor Or Agricultural tricycle	Drive type	Belt drive
		Power (hp)	8-12
		Diesel pulley	135
Dimensions	Size (mm)	5109821050
	Operating size(mm)	123011501695
triangular belt(with motor)		B1650 3
Weight (kg)		138
Cutterhead speed(r/min)		800

Type
Length of cut grass 16mm Uniform continuous feed	Maize straw(78%)	2.5t/h
	Maize straw(17%)	1t/h
	Straw (17%)	1t/h
	Wheat straw (17%)	0.6t/h
	Alfalfa (17%)	1.2t/h
Length of cut grass	2 blades	22,52(mm)
	3 blades	15,35(mm)
	4 blades	11,26(mm)

9Z-30

Type		Parameter
Mating power	Motor (kw)	Power(kw)	5.5
		revolving speed(r/min)	14
		Feeder power(kw)	4
Dimensions		Size (mm)	363020702810
		Operating size(mm)	429025104510
Weight (kg)			2300
Cutterhead speed(r/min)			450
Blade			3
Type of drive			Ordinary v-belt drive
Ordinary v-belt			3
Belt conveyor(alternative)			Power 3kw ,Conveying distance 4.5m
			50001000830mm

Type
Length of cut grass 16mm Uniform continuous feed	Maize straw(78%)	30t/h
	Maize straw(17%)	12t/h
	Straw (17%)	10t/h
	Wheat straw (17%)	12t/h
	Alfalfa (17%)	12t/h
	Cotton stalks (17%)	10t/h
Length of cut grass	3 blades	18,21,41,64(mm)
The blow distance of final product		10-15(m)

9RC-50

Item	Production Efficiency
Cotton stem	0.5-1 t/h
Corn straw	0.5-1.5 t/h
Cotton stalk	0.5-1.5 t/h
Rice straw	0.5-1.5 t/h

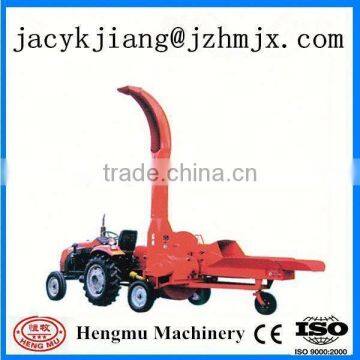

4,Picture show of small animal grinder mill:
