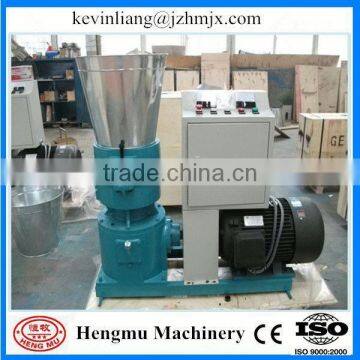

Economical durable flat die pellet machine/biomass fuel pellet /peanut shell pellet machine with CE approved

Model

Motor

Capacity

(kg/h)

Dimension

(cm)

N.W./G.W.

(kg)

Raw material

moisture content

Wood pellet

Feed pellet

9KJ-120A

8HP diesel

40-60

60-100

73*32*67

120/135

12%-20%

9KJ-120B

2.2KW 220V 50HZ

40-60

60-100

75*31*62

80/100

12%-20%

9KJ-120B

3KW 380V 50HZ

40-60

60-100

75*31*62

80/100

12%-20%

9KJ-150A

8HP diesel

50-100

100-200

76*43*71

130/150

10%-15%

9KJ-150B

4KW 380V 50HZ

90-120

150-220

77*34*68

95/115

10%-15%

9KJ-150Q

13HP gasoline engines

50-100

100-200

76*43*71

130/150

12%-20%

9KJ-200A

15HP diesel

110-180

220-350

118*56*102

320/360

10%-15%

9KJ-200B

7.5KW 380V 50HZ

100-150

200-300

100*43*95

190/210

10%-15%

9KJ-200C

7.5KW 380V 50HZ

100-150

200-300

100*45*93

200/220

10%-15%

9KJ-230A

22HP diesel

150-200

300-400

118*56*95

360/390

10%-15%

9KJ-230B

380V 50HZ 11KW

150-200

300-400

114*50*97

280/310

10%-15%

9KJ-230C

11KW 380V 50HZ

150-200

300-400

115*50*97

290/320

10%-15%

9KJ-260A

30HP diesel

200-300

400-600

184*70*116

600/630

10%-15%

9KJ-260B

15KW 380V 50HZ

200-300

400-600

120*50*103

330/360

10%-15%

9KJ-260C

15KW 380V 50HZ

200-300

400-600

120*50*103

340/370

10%-15%

9KJ-300A

55HP diesel

300-400

600-800

220*60*123

730/780

10%-15%

9KJ-300B

22KW 380V 50HZ

300-400

600—800

132*53*107

430/470

10%-15%

9KJ-300C

22KW 380V 50HZ

300-400

600-800

132*53*107

440/480

10%-15%

3. High output,low energy consumption ,low noise low failure ,fatigue and strong machine,continuous production,economic machine.

1.  Our CE flat die pellet mill are Improved model stronger and square frame for making pellets,  Flat die is made with international advanced equipment for long lifespan, The key

parts aremade of alloy steel to be very strong and malleable.

2.  Our Flat-die pellet press is for pressing all kinds of bio-mass material to be solid pellets

which is for burning fuel or animal feeding. Its ideal pellet press for personal, family and small plantsdue to easy operation and maintenance.

3 Drive with heavy-duty gearbox, which can produce continuously in most advantageous  condition, The important key elements are of high performance with long life and low maintenance cost.

4.  The workable raw material can be any type of Agro waste; Fodder, Chemical; Forestry wastes;lumber leftover; Saw dust; Wood Chips, Widely used in pelletizing for wood,straw and ricehull and other biomass sources and so on, Our household Pellet Mill is appropriate for crudefibre compression forming,such as: maize straw,peanut shell, rice husk, corncob,cotton seed hull,wheat-straw,sunflower seed shell,sawdust, cotton stalk, weeds, etc.all kinds of agriculturals traws, house refuse,waste plastic andwastes in factory.It is alsosuitableforraw

materials which are difficult to form with low bonding ratio. Furthermore,organic bacterial

manure, organic fertilizer and compound fertilizer areapplicable to pelletize under low temperature

5. Simple operation, easy to use: a high degree of automation, less labor, only need three

people, the use of artificial feeding or conveyor automatic.

6.  Roller autoregulation function:Roller autoregulation function: the principleof bi-directional rotation of thethrust bearing to automatically adjust the pressure angle, so that the materials

are not crowded groups,not boring machine, to ensure that the material forming stable.

7. Materials adaptable: adapt to a variety of biomass materials, molding, straw from powder to

50mm length, moisture content  between 5 to 30%, can be processed shape.The final product pellet is dried, compressed,and formed into small eraser-sized bits. They are clean,pleasant

smellingand smooth to touch.

2.With the professional development and design team,products continous updated.
