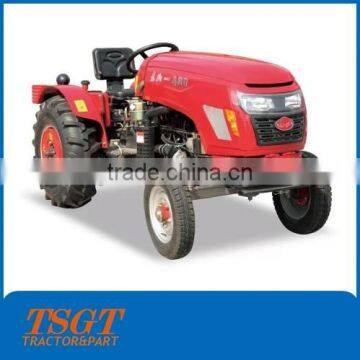

GD350 35HP garden tractor small tractor
- Qingdao
- T/T Credit Card
You May Like
-
30HP mini tractor garden tractor GD300 2W
-
40HP GT400 farm tractor 2W/4W
-
100hp tractor mounted hydraulic grader blade working width 3.0m
-
95hp tractor mounted hydraulic grader blade working width 3.0m
-
90hp tractor mounted hydraulic grader blade working width 3.0m
-
85hp tractor mounted hydraulic grader blade working width 3.0m
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | Other, 2W /4W | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 25.73kw | |
| Certificate | Other, CCC, OECD, ISO9001 | Brand Name | Taishan | |
| Model Number | GD300 | Place of Origin | Shandong, China |
Product Description
Main Technical Specifications
GD350 35HP garden tractor small tractor
| Taishan | Model | Taishan-300 | Taishan-304 | Taishan-350 | Taishan-354 | |
| Tractor Parameter | Drive Type | 4X2WD | 4X4WD | 4X2WD | 4X4WD | |
| Rated Tractions Force(kn) | 5.88 | 7.61 | 6.37 | 8.14 | ||
| Structure weight(kg) | 970 | 1092 | 1000 | 1136 | ||
| PTO Power(kw) | 17.6 | 18.5 | 22 | 23 | ||
| Tread Front(mm) | 960 | 1400 | 960 | 1400 | ||
| Tread Rear(mm) | 960 | 960 | 960 | 960 | ||
| Wheel Base | 1500 | 1610 | 1585 | 1710 | ||
| Turning Radius(m) | Noside Braking | 3.3±0.3 | 3.6±0.2 | 3.4±0.3 | 3.6±0.2 | |
| One Side Braking | 3±0.3 | 3.3±0.2 | 3.1±0.3 | 3.3±0.2 | ||
| Ground clearance(mm) | 230 | 200 | 230 | 200 | ||
| Overall Dimensions(LXWXH)(mm) | 2725x1250x1220 | 2810x1260x1230 | 2825x1250x1220 | 2910x1260x1230 | ||
| 8F+2R Shift | Speeds Forward(km/h) | 8F/1.78-27.38 | 8F/1.78-27.38 | |||
| Speeds Reverse(km/h) | 2R/2.30-11.25 | 2R/2.30-11.25 | ||||
| Engine | Model | LD3T30 | LD3T30 | LD4L22BT | LD4L22BT | |
| Type | Inline, water-cooled, four stroke, direct injection | |||||
| Cylinders | 3 | 3 | 4 | 4 | ||
| Bore x stroke(mm) | 85x95 | 85x95 | 85x95 | 85x95 | ||
| Rated speed(r/min) | 2350 | 2350 | 2350 | 2350 | ||
| 12h power(kw) | 20.6 | 20.6 | 25.8 | 25.8 | ||
| Diesel consumption(g/kw·h) | ≤238 | ≤238 | ≤238 | ≤238 | ||
| Oil consumption(g/kW·h) | ≤0.5% | ≤0.5% | ≤0.5% | ≤0.5% | ||
| Cool system | enclosed, forced water cooling | |||||
| Start type | Electric | Electric | Electric | Electric | ||
| Drive System | Clutch | Dry, single | Dry, single | Dry, single | Dry, single | |
| Transmission | Spur gears(4+1)×2 plane combination | Spur gears(4+1)×2 plane combination | ||||
| Differential mechanism | two planetary bevel gear, closed | two planetary bevel gear, closed | ||||
| Walking Steering | Tyre | Front tyre | 4.50-12 | 5.00-12 | 4.50-12 | 5.00-12 |
| Rear tyre | 9.5-16 | 9.5-16 | 9.5-16 | 9.5-16 | ||
| Steering | Front mechanical or hydraulic | |||||
| Working Device | Hydraulic lift | Type | Semi-individually mounted | Semi-individually mounted | ||
| Max lift capacity(kn) | >4.6 | >4.6 | >5.8 | >5.8 | ||
| Hydraulic cylinder type | Single-acting | Single-acting | ||||
| Suspension system type | Rear, three point linkage, 0 | Rear, three point linkage, 0 | ||||
| PTO | Type | Non-independent | Non-independent | |||
| Speed(r/min) | 540/760 or 540/1000 | 540/760 or 540/1000 | ||||
| Spline | 6 or 8 | 6 or 8 | ||||
| Fuel Tank Capacity(L) | 17 | 17 | 17 | 17 | ||
More Photos:
GD350 35HP garden tractor small tractor
Our Factory:
GD350 35HP garden tractor small tractor
Beijing Taishan Guotai Import Export Co., Ltd.: is the sub-company of Taishan Guotai group company with independent import and export right. We are devoted to provide the most suitable tractors and farm equipment according to customers demand. Taishan Guotai Tractors Co., Ltd. is one of 10 leading famous tractor manufacturers in China. It was set up in 1995, the history tracking back to 60’s. Now we cover about 150,000m2, 18 producing plants, 12 producing lines; the total employee is around 1000 people. We have the perfect quality control system to ensure the top quality productions: Professional laboratory, complete test equipment, excellent technical team, including senior engineer 10, engineer 26, and technician 60, strict quality control process.
Meanwhile, according to customer’s increasing demand, we also supply the quality industry machine, lifting machine, mining machine, earthmoving machine, road construction machine, logistics machine and forest machine and so on.
We have exported to the countries all over the world, such as Europe, Oceania, East Asia, Southeast Asia, and Africa and so on. We warmly welcome you to visit our factory, and all your comment and advice is highly.
Packing and Delivery:
GD350 35HP garden tractor small tractor
