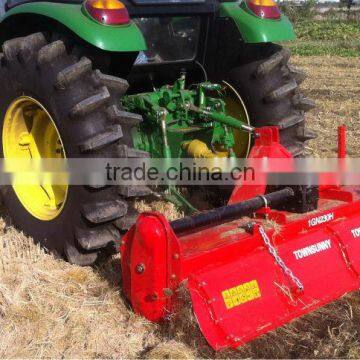

Heavy Duty Rotary Tiller with CE
Negotiable
/ Set
3 Sets(Min.Order)
- 200 Set / Sets per Month
- SHANGHAI
- D/P D/A
You May Like
Product Details
| Type | farm machine | Use | Tilth | |
| Certification | CE | Place of Origin | Jiangsu, China | |
| Brand Name | TOWNSUNNY | Model Number | IGN180H/ IGN200H/ IGN230H | |
| Condition | New | After-sales Service Provided | No overseas service provided |
Product Description
Heavy Duty Rotary Tiller with CE
Specifications of IGNH
- Multispeed Gearbox 540 rpm PTO
- Side gear drive in oil bath
- Universal three point hitch, cat. I & cat. II^
- 6 blades per flange (side blades are always mounted inwards)
- «CE» safety guards
| Model | 1GL105 | 1GL125 | 1GL135 | 1GL150 |
| Dimensions (L*W*H cm) | 127*76*107 | 152*76*107 | 152*76*107 | 175*76*107 |
| Structure Weight (Kg) | 300 | 320 | 320 | 340 |
| Working Width (cm) | 105 | 130 | 130 | 155 |
| Number of Flanges | 4 | 5 | 5 | 6 |
| Number of Blades per Flange | 6 | |||
| Hitch Type | standard 3-point hitch | |||
| Gearbox Iubrication | SAE 90 oil | |||
| Rotor Diameter | 18'' | |||
| Rotor Shaft Speed | 214 rpm at 540 rpm PTO | |||
| Recommended Maximum PTO Power(KW) | 18.4-22.1 | 22.1-29.4 | ||
| Packing Size(cm) | 127*76*81 | 152*76*81 | 152*76*81 | 175*76*81 |
| Model | 1GN180H | 1GN200H | 1GN230H | 1GN250H |
| Dimensions (L*W*H cm) | 205*83*107 | 225*83*107 | 250*83*107 | 275*83*107 |
| Structure Weight (Kg) | 460 | 490 | 520 | 550 |
| Working Width (cm) | 180 | 205 | 230 | 255 |
| Number of Flanges | 7 | 8 | 9 | 10 |
| Number of Blades per Flange | 6 | |||
| Hitch Type | standard 3-point hitch | |||
| Gearbox Iubrication | SAE 90 oil | |||
| Rotor Diameter | 18'' | |||
| Rotor Shaft Speed | 214 rpm at 540 rpm PTO | |||
| Recommended Maximum PTO Power(KW) | 36.8-44.1 | 44.1-55.2 | 54.5-66 | 58.8-73.5 |
| Packing Size(cm) | 205*83*81 | 225*83*81 | 250*83*81 | 275*83*81 |
| Model | 1GKN135H | 1GKN150H | 1GKN180H | 1GKN200H | 1GKN230H | 1GKN250H |
| Dimensions (L*W*H cm) | 152*83*107 | 175*83*107 | 205*83*107 | 225*83*107 | 250*83*107 | 275*83*107 |
| Structure Weight (Kg) | 420 | 450 | 480 | 510 | 540 | 570 |
| Working Width (cm) | 130 | 155 | 180 | 205 | 230 | 255 |
| Number of Flanges | 5 | 6 | 7 | 8 | 9 | 10 |
| Number of Blades per Flange | 6 | |||||
| Hitch Type | standard 3-point hitch | |||||
| Gearbox Iubrication | SAE 90 oil | |||||
| Rotor Diameter | 18'' | |||||
| Rotor Shaft Speed | 178/201/227/256 rpm at 540 rpm PTO | |||||
| Recommended Maximum PTO Power(KW) | 18.4-22.1 | 22.1-29.4 | 36.8-44.1 | 44.1-55.2 | 54.5-66 | 58.8-73.5 |
| Packing Size(cm) | 152*83*81 | 175*83*81 | 205*83*81 | 225*83*81 | 250*83*81 | 275*83*81 |
CE of Heavy Duty Rotary Tiller with CE
