Home > Products > Drip tape and drip line > Pathfinder Irrigation Drip Tape

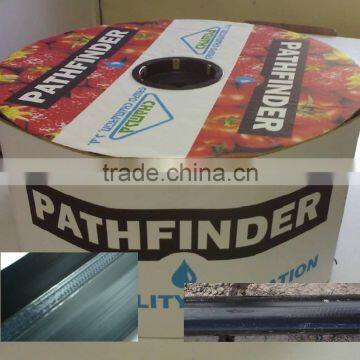

Pathfinder Irrigation Drip Tape
- Valencia
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Spain | Brand Name | PATHFINDER | |
| Model Number | Drip Tape | Material | Plastic |
Product Description
1. Diameter: 16mm
2. Thicknesses: 0,125 mm to 0,2 mm
3. Flow: 0,36-1,13 L/H
4. Spacing: 10-40 cm Filtration: low sensitive
5. Drip tape with Largest low flow path in the drip industry and is more plug resistant than competitive tape emitters.
6. Patented clear flow path enables this periodic monitoring of Path the drip tape.
7. Drip tape with multiple inlets assure unrestricted flow to the emitter Path and restrict the particle size which can enter the emitter Path.
8. Drip tape with increased resistance to insect attack, fertilizers and organic products.
| Wall | Distance | Flow (a) | Flow (b) | Path | Length. | Máximum | ||||
| REFERENCE | Drip tape CODE | thickness | emitters | (l/h.100m) | (l/h.emitter) | Roll | length | |||
| CODE | (mil.) | (cm) | (m) | lateral | ||||||
| (m)* | ||||||||||
| 1109442 | PATHFINDER | 16-05-15-165-500 | R4000 | 5 | 15 | 165 | 0,36 | 500 | 4000 | 295 |
| 1109443 | tape | 16-05-20-250-1000 | R4000 | 5 | 20 | 250 | 0,57 | 1000 | 4000 | 210 |
| 1109444 | 16-05-20-365-2000 | R4000 | 5 | 20 | 365 | 0,82 | 2000 | 4000 | 160 | |
| 1109445 | 16-05-20-510-3000 | R4000 | 5 | 20 | 510 | 1,13 | 3000 | 4000 | 210 | |
| 1109446 | 16-05-30-340-3000 | R4000 | 5 | 30 | 340 | 1,13 | 3000 | 4000 | 175 | |
| 1109447 | 16-05-10-1020-3000 | R4000 | 5 | 20 | 510 | 1,13 | 3000 | 4000 | 135 | |
| 1109448 | 16-05-10-1020-3000 | R4000 | 5 | 10 | 1020 | 1,13 | 3000 | 4000 | 85 | |
| 1109449 | 16-06-15-165-500 | R3200 | 6 | 15 | 165 | 0,36 | 500 | 3200 | 295 | |
| 1109450 | 16-06-20-250-1000 | R3200 | 6 | 20 | 250 | 0,57 | 1000 | 3200 | 210 | |
| 1114001 | 16-06-20-365-2000 | R3200 | 6 | 20 | 365 | 0,82 | 2000 | 3200 | 160 | |
| 1109451 | 16-06-20-510-3000 | R3200 | 6 | 20 | 510 | 1,13 | 3000 | 3200 | 210 | |
| 1109452 | 16-06-30-340-3000 | R3200 | 6 | 30 | 340 | 1,13 | 3000 | 3200 | 175 | |
| 1109453 | 16-06-20-510-3000 | R3200 | 6 | 20 | 510 | 1,13 | 3000 | 3200 | 135 | |
| 1110214 | 16-06-10-1020-3000 | R3200 | 6 | 10 | 1020 | 1,13 | 3000 | 3200 | 85 | |
| 1115712 | 16-08-15-165-500 | R2500 | 8 | 15 | 165 | 0,36 | 500 | 2500 | 295 | |
| 1115713 | 16-08-20-250-1000 | R2500 | 8 | 20 | 250 | 0,57 | 1000 | 2500 | 210 | |
| 1115714 | 16-08-20-365-2000 | R2500 | 8 | 20 | 365 | 0,82 | 2000 | 2500 | 160 | |
| 1115613 | 16-08-40-255-3000 | R2500 | 8 | 40 | 255 | 1,13 | 3000 | 2500 | 210 | |
| 1110573 | 16-08-30-340-3000 | R2500 | 8 | 30 | 340 | 1,13 | 3000 | 2500 | 175 | |
| 1110561 | 16-08-20-510-3000 | R2500 | 8 | 20 | 510 | 1,13 | 3000 | 2500 | 135 | |
| 1112215 | 16-08-10-1020-3000 | R2500 | 8 | 10 | 1020 | 1,13 | 3000 | 2500 | 85 | |
DENOMINATION: Diameter drip tape - Wall thickness (mil.) - Spacing (cm) - Flow (l/h. 100 m) - Path - Reel length (m)
Example: 16 - 06 - 20 - 510 - 3000 - R3200
WALL THICKNESS: 1 mil. = 1 mil. inch = 0,025 mm / 6 mil. = 0,15 mm / 8 mil. = 0,20 mm
FLOW: (a): l/h. 100 m = litres per hour per 100 metres of tape @ 0.55 bar
(b): l/h. emitter = litres per hour per emitter @ 0.68 bar.
Ask for other wall thickness, spacing and flow
