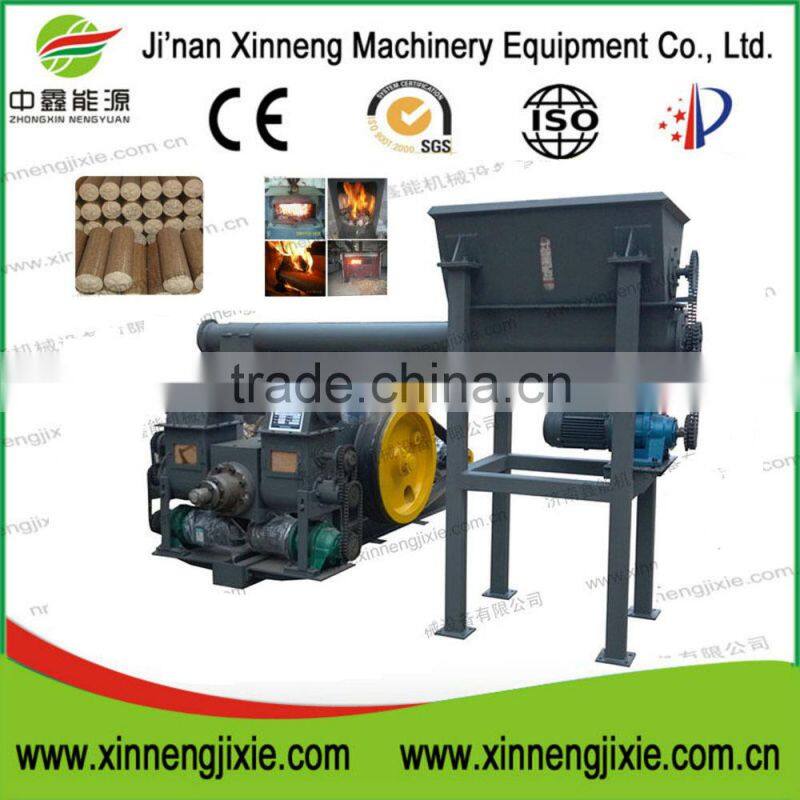

New Type Biomass Screw Briquetting Press Machine

Company Information

Company information :

Jinan Xinneng Machinery Equipment Co.,Ltd. located in Jinan City, the capital of Shandong Province.
It has been specialized in biomass engergy's technology development and promotion since 2006, won lots of national technical patents in the field of biomass energy's utilization.

With professional R&Dteam, excellent technical team, sales team and strong production capacity. We have been devoting ourself to the development and promotion of biomass engery's utilization and all our products have got CE certificates.

Main Products: Biomass briquette machine, Wood crusher,Vertical dryer, Biomass burner and Biomass gasifier.

Producing Flowchart

How to make Briquettes?
Briquetting is a process where some type of raw material is compressed under high pressure to form a round or square briquette that can be used for heating purpose.
If the raw material is wood waste or agro waste, the lignin content is liberated under this very high pressure thus binding the material into a briquette with high density.

During the compression of the material, temperatures rise sufficiently to make the raw material liberate various adhesives that will assist in keeping the particles together in the compressed shape. However, to make this process successful, the moisture content of the raw material must be in the range 6 - 16 %.

The high temperature also causes the moisture in the raw material to evaporate. At a very high moisture contents, steam pockets may build up during the process thus leading to expansion which will demolish the briquette.

As the optimum moisture content for briquetting purposes varies with the raw material, we know from experience that the recommended water content is from min. 6% to max. 16%. The ideal moisture content for most wood based material is 10-12%.

Volume Reduction and Other Advantages
Briquetting often leads to a volume reduction of more than 10 times. Wood shavings will go from less than 100 kg/m3 to typical 1000 to 1100 kg/m3, which simplifies storage and transportation problems considerably.

For flammable dust, briquetting is also an effective way to reduce the risk of explosions and fires.

Raw Materials

Biomass Sunflower Seeds Husk Briquette Machine is used in forage, sawdust, straw, millet straw, wheat straw, corn straw, peanut straw, bean straw, tree leaves, cottonseed husk, cotton straw, shrubs and many other types of agro-forest waste.

Final Briquettes

We are offering a wide range of different briquettes or pellets for use in industrial boilers.

FAQ

FAQ for screw briquetting press machine:

1.Q: What is the raw material can be used to make briquettes?

   A: All biomass material.
2.Q: What is the size of raw material?
   A: Less than 2cm.
3.Q: What is the moisture of raw material?
   A: Lower than 15%.
4.Q: Could you provide OEM service?
   A: Yes,we can.
5.Q: Could you supply complete production line?
   A: Yes,we can supply complete production line.
6.Q: Could you come to customers' site to lead installation?
   A: Yes,we can send our technician to lead installation.
7:Q: What is the warranty of your machinery?
   A: One year.
The machine could be ordered according to different requirements on machines,

e.g.Capacity, Color and Electricity.

Packaging Details: Machine will be packaged in wood case and delivered on 20' container.
Delivery Detail: Within 30 days after receiving the down payment.

OUR SERVICES

Our services for screw briquetting press machine
1. The warranty is 12 months.
2. We provide after-sale services through the email, fax or telephone and we will definitely response within 24 hours once we received the message or any information.
3. Our engineers could provide complete design plans based on your materials or any other equipments according to your data and information.
4. We also provide engineers to go to your factory and train your technicians.
5. OEM Services.

patented and CE certificates

CE certificates for all XNY series screw briquetting press machine.

contact information

We surely guarantee that all the pictures shown in the information are

taken in our clients’ production sites.

We are always been imitated but we have never been exceeded.
