MR -L8 customized PP Material Mini float level measuring
- Ningbo
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | mini float level switch for tank | |
| Model Number | MR-L8 | Usage | Level Sensor | |
| Theory | Current Sensor | Output | Switching Transducer |
bags and cartons
Product Description

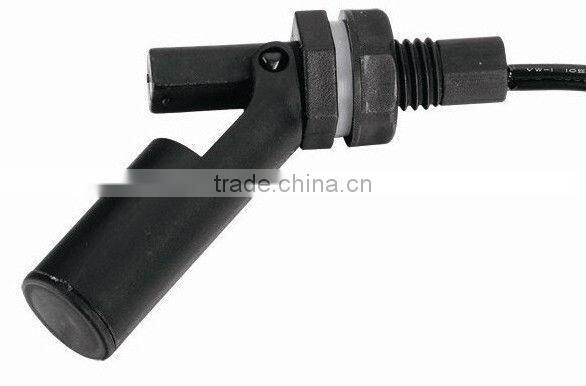

mini float level switch for tank
1.Low cost 2.Long life 3.Simple installation 4.Wide applications
Level sensor MR4535-P
Movement explaination:When the float ball rises or falls with the liquid to the level of the switch, The magnetic force of magnet which inside of the float ball will cause the reed switch to turn ON. When the float ball move away from the reed switch, the reed switch will turn OFF.

Model | MR4535-P | ||||
Installation | Top or bottom perpendicular instal | ||||
Mounting dimension | M8 | ||||
Operating characteristic | N.O/N.C (optional) | ||||
Material Specification | Electrical Specification | Physic Specification | |||
Float ball | PP | Contact form | 1A | 2A | Min shock: 30G on board |
Float body | POM | Max contact rating | 10W | 50W | Min Vibration: 1.5mm (10-55HZ) |
Cap nut | POM | Max switching voltage | 100VDC | 220VDC | Temp Rating: -10-+85°C |
O-ring | Silicon | Max breakdown voltage | 200VDC | 300VDC | Max pressure: 0.2MPa |
E-ring | POM | Max switching current | 0.5A | 1.5A |
|
Filling | EPOXY(ROHS) | Max carry current | 1.0A | 3A |
|
Wire | UL1007/UL1015 22AWG /24AWG | Max contact resistance | 100Ω | 100Ω |
|
Working Life | 100,000,000 |
| |||
Package
Standard plastic bags and cartons, also we can provide customized design for all kinds package.


Production Line
Our factory management is in accordance with international 5S standards, strict requirements and supervision of the various production processes.
Latest Exhibitions
We attended the Electronica in Germany in Nov 2014, new products have won the praise of many buyers.
Owned Certifications
Company Profile
NINGBO YINZHOU MINGRUI SENSORS CO., LTD. is engaged in the research, development, production, sales and service of level sensors, proximity sensors, flow sensors, industrial control sensors and hardware plastics. These products are suitable for various industries including house appliances, machinery, electronics, metallurgy, power generation, shipbuilding, petrochemical industry, food, feedstuff, waste water/pure water processing, plastics, rubber, cement, medicine, storage, chemical fertilizers, steel, mining, lubrication, air dust proof, temperature monitors, boilers, and Dyeing and finishing equipment. For meeting different requirements of different environments, the products of each kind have many optional specifications and materials, and can be customized. We develop products together with customers to improve reliance, safety and value of them. We struggle to make each link perfect, and improve our quality based on finished technology and promise to keep improving and uniform for customers. A wide range of service support systems help us to make quick responses to customers and improve our service quality. We think single product can't bring real benefits to our customers, so we pay much attention to providing customers with complete services including consultation solution, product implementation and technology support. We have a new industrial workshop, advanced machine tools, a modern design center, an efficient technical service organization, and internationally advanced testing equipment. NINGBO YINZHOU MINGRUI SENSORS CO., LTD. has been dedicated to market development and promotion of various new products for many years. During that time, we developed Korean, Japanese, and American markets, and formed fixed agencies in Korea and Japan. Through many years of cooperation, we build a good relationship with them. Our products are sold overseas. We always pursue scientific progress and meet market demand.
