Low Cost Pneumatic Liquid Filling Machine,Double Head Fill Machine

Specifications

Application:

1. Situable materials:This series liquid filling machine can be applied to fill liquid in food, bath items, medicine, chemical etc; it’s not suitable to fill the liquid with gas and drinking materials with pellet.
2. Fuselage materials:The whole machine are stainless steel, the contact materials part choose 304 stainless steel and in accordance with health standard.
3. Technology:Pneumatic parts choose Taiwan AirTAC brand to make sure the machine work steady.
4. Advantages:Foot switch inching operation, auto working and two kinds of control mode are more practical and convenient.
5. Can choose the head:The filling heads can be changed according to different diameter bottleneck.
6. Feature:2 heads can fill same time.
7. Working principle: this machine is leather hose self-priming filling, put the hose into raw materials tank, and in the driven of the cylinder to pull the piston rod, the raw materials goes through self priming hose, the check valve under the tee into metering cylinder, and then by cylinder to push the piston then raw materials out from the valve, hose, filling head goes into the bottle, through magnetically controlled switch control cylinder stroke to decide the filling volume.

Main data:

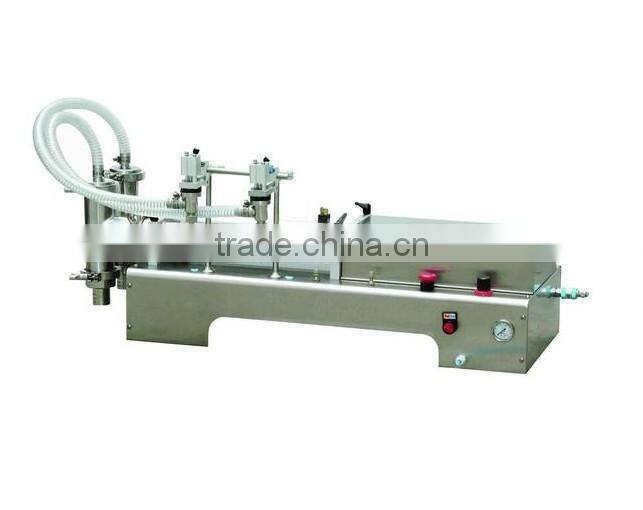

Model: SY-2 Double head pneumatic liquid filling machine

Filling speed: 10-60bottle/min (depends on bottle volume)

Pressure standard: 0.4-0.6Mpa

Voltage: 220v, 50hz/60hz

Filling precision: less than ±0.5%

Filling scope: 100-1000ml

Machine size: 1100x420x400mm

Weight: 40kg

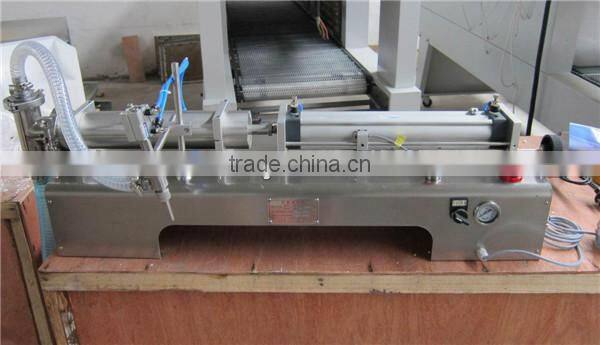

Picture:

Main parts:

Other filling machine

                                    Single head pneumatic liquid filling machine

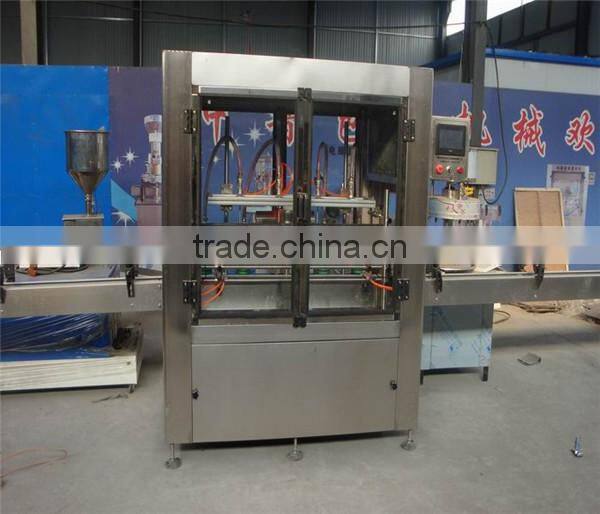

                            Full Automatic Oil Filling Machine

For warranty parts and service:

**1 year warranty.

**Within warranty period, all exchanges due to defects are free (Buyer is responsible for shipping charges).

** Within warranty period, As to after-sales service, all the freight fare and accommodation will be paid by buyer
