2017 Hot Sale 4x4 Mini Tractor de Orugas
- QINGDAO
 - T/T L/C D/P D/A Credit Card PayPal

You May Like
Product Details
| Condition | New | Type | Wheel Tractor | |
| By wheel | 4WD | Usage | Farm Tractor | |
| Drive Type | Gear Drive | Power(W) | 22kw | |
| Certificate | Other, ISO | Brand Name | Bocheng | |
| Model Number | 304 | Place of Origin | Shandong, China | |
| After-sales Service Provided | Overseas third-party support available |
Product Description

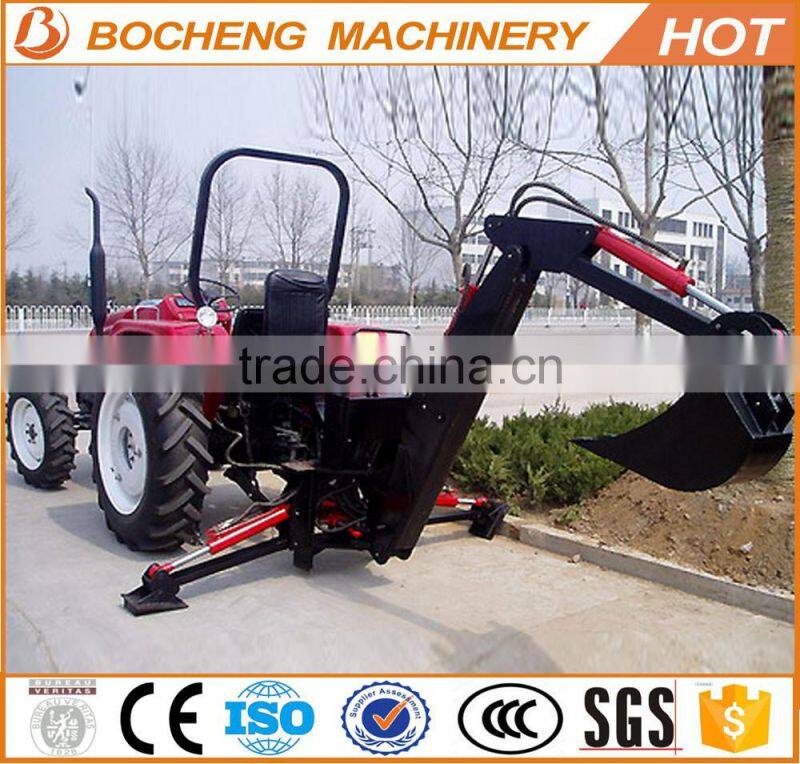

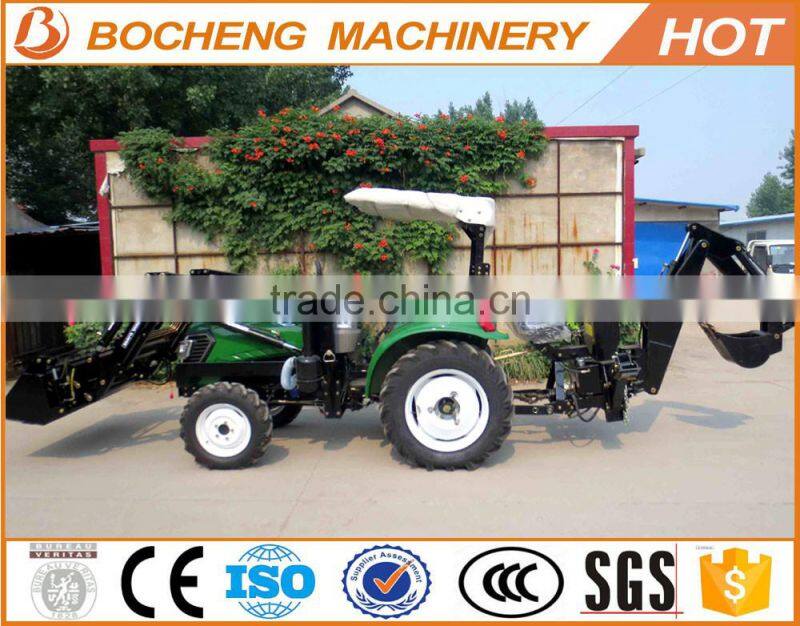

 Big discount! 4x4 mini tractor with backhoe for sale

2. Max. Digging Depth (mm): 1700
3. Max. Unloading Height (mm):1700
| Tractor Model | LT300                                             | LT304                                         | |
| Drive Type | 4×2 | 4X4 | |
| Overall Dimension L×W×H(mm) | 3535×1485×1895 | 3590×1485×1895 | |
| Wheel base(mm) | 1705 | 1760 | |
| Front wheel tread(mm) | 1100-1400 | 1200 | |
| Rear wheel tread(mm) | 1100-1400 | 1100-1400 | |
| Min. ground clearance(mm) | 338 | 235 | |
| Min. steering radius | Unilateral brake(m) | 2.8 | 2.8 |
| Not unilateral brake(m) | 3.2 | 3.4 | |
| Min. operating weight (KG) | 1410 | 1620 | |
| Gearbox gears number | 8F+4R | 8F+4R | |
| Speed | Forward(Kw/h) | 2.07-27.08 | 2.07-27.08 |
| Reverse(Kw/h) | 3.07-9.35 | 3.07-9.35 | |
| Engine | Model | YD485T-C075 | YD485T-C075 |
| Rated power (Kw) | 22.1 | 22.1 | |
| Rated speed (r/min) | 2200 | 2200 | |
| Tires spec. | Front tires | 5.50-16 | 6.50-16 |
| Rear tires | 11.2-24 | 11.2-24 | |
| Steering Type | Full hydraulic front wheels steering | ||
| Max. lifting force( KN ) | 5 | 5 | |
| PTO | Type | Rear-mounted, Non independent type | |
| Speed (r/min) | 540/720 or 540/1000 | ||
| Power(Kw) | ≥18.78 | ≥18.78 | |
| Control type of ploughing depth | Force control & Position control | ||
| Max. traction force (KN) | 5.6 | 6.7 | |
| Front / rear Ballast (KG) | 80/80 | 80/80 | |
Mini Tractors with Backhoe LW-6 Main Parameters:
Model  |
  | LW-6  | LW-7  | LW-8  | LW-10  | LW-12  |
Matching Tractor  | Kw (hp)  | 14.7~22.1      (20~30)  | 22.1~36.8       (30~50)  | 36.8~58.8       (50~80)  | 73.5~88.3       (100~120)  | 88.2~102.9     (120~140)  |
Max. Digging Depth  | mm  | 1700  | 2100  | 2600  | 3000  | 3600  |
Max. Unloading Height  | mm  | 1700  | 2300  | 2500  | 2700  | 3200  |
Max. Digging Height  | mm  | 2700  | 3300  | 3400  | 3900  | 4500  |
Max. Digging Depth Flat Bottom  | mm  | 1600  | 2000  | 2500  | 2900  | 3500  |
Max. Swing Angle  | (° )  | 180°  | 180°  | 180°  | 180°  | 180°  |
Bucket Rotation Angle  | (° )  | 160°  | 160°  | 160°  | 160°  | 174°  |
Bucket Capacity  | m3  | 0.03  | 0.048  | 0.06  | 0.1  | 0.2  |
Weight  | kg  | 450  | 500  | 540  | 900  | 1050  |

1. Adopt Yangdong diesel engine, good reliability, large reserves of torque, low fuel consumption, high economic efficiency;
2. Gearbox using 4 × (2 +1) engaging sleeve, shuttle-type gearshift, there are 8 forward gears, 4 reverse gears, reasonable match between the gears, and have high efficiency;
3. Non independent power take off device, smooth transmission, large capacity, speed (540/720, 540/1000 r/min) for selection to meet the different operation requirements;
4. Full hydraulic front wheels steering, independent oil circuit for steering system, manipulating flexible, reliable, and save energy;
5. Adopt hydrostaticdisc-type brakes, a large braking torque, the braking effect is good;
6. Final transmission adopts planetary gear mechanism, compact structure, large reduction ratio;
7. New streamlined appearance, generous, modern, fashion;

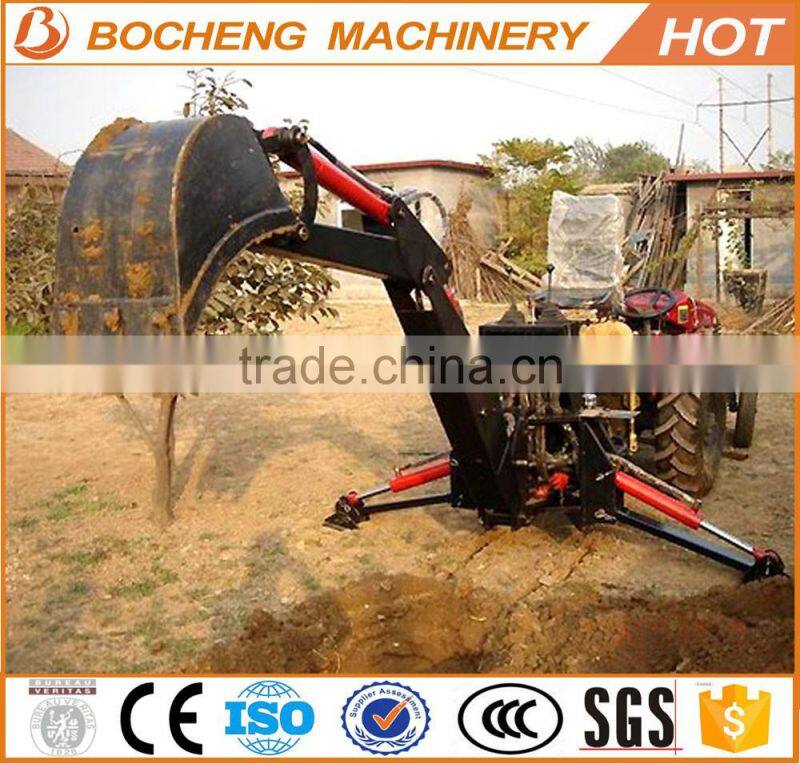

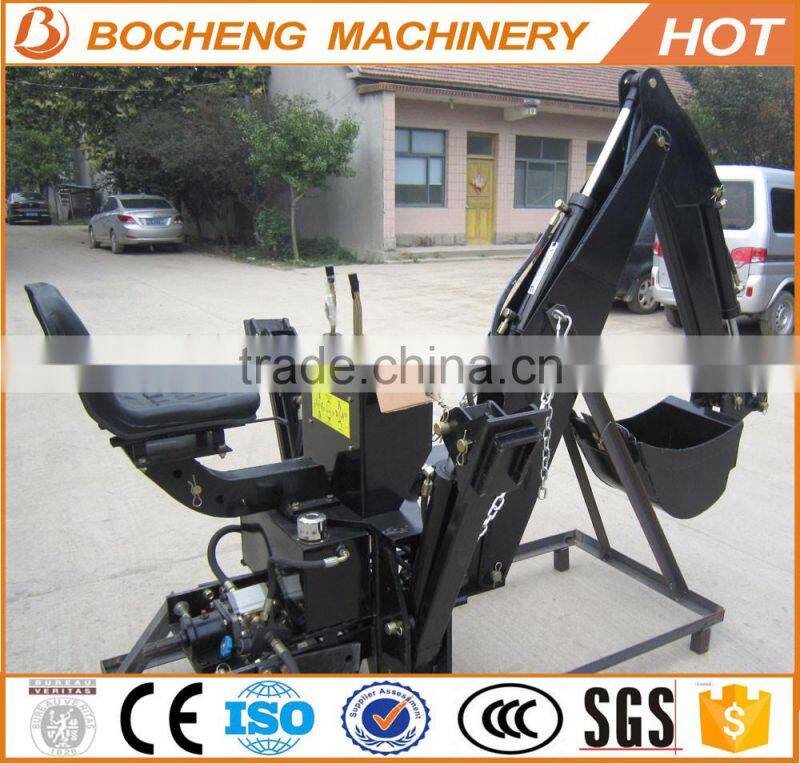

Backhoe LW-6 Main Advantages:
1.It is used ditching in farms and grazing lands, digging pool, cleaning waterways as well as assistant excavating work in construction and building roades.2.Featured with compact structure, flexibility, convenient operation and quick mounting and dismounting.
3.Hydraulic transmission is used. It uses hydraulic oil commonly with tractor. The hydraulic elements are standardized, convenient for opration and service.
4.To better accomplish different kinds of work, bucket of differernt sizes can be selected and mounted on it.

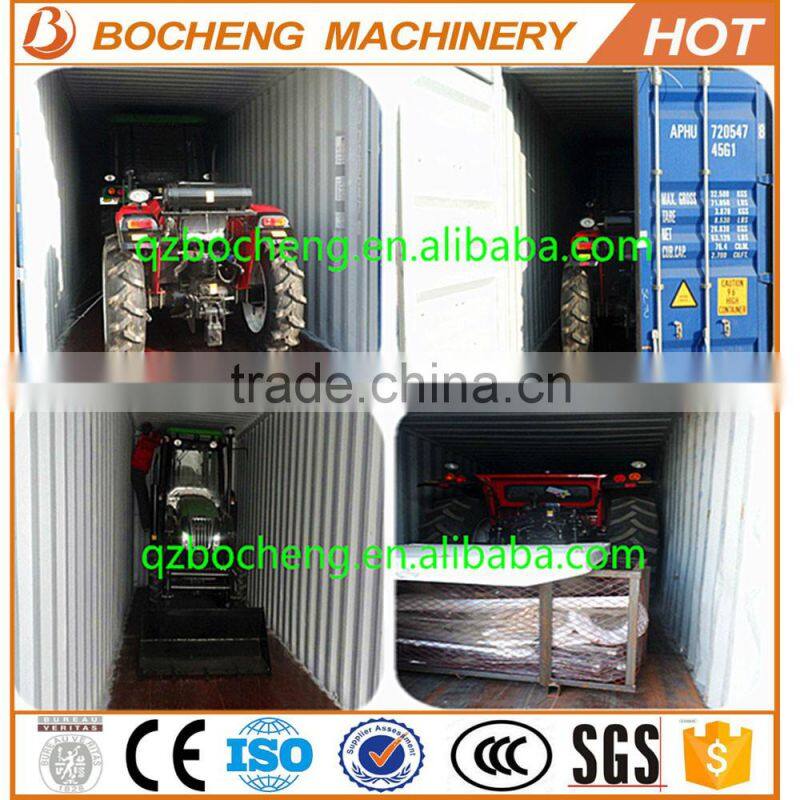

Farm Tractors with Front End Loader & Backhoe Packing & Shipping:
Payment Terms
* We 'll accept T/T, Western Union
*T/T : 30% of total amount in Advance as Deposit, 30% in producing progess , 40% Balance sheet before delivery.
Ways for Packaging
* In Container or Bulk
Transportation
* By sea shipment
* Photos of the final products will be mailed you before delivery
*Remind messages for customer of the shipment

Over 10 years experience, Bocheng company have an excllent working team and the high quality service. Except this farm machine, we also have sales a lot about accessories of the machines.
* Professional technician can be provided to service the machinery overseas
* We offer competitive price and high quality.
* Cost-effective solutions
* Multi-year control
* Full service and quick response.  All the inquiries will be replied within 12 hours
* Immediate benefits for your customers and clients
* Scheduled automatic maintenace programs
* Year -around service
Why Choose Us?
* More than 10 years experiences in the industry of construction machine and agricutural machine.
* Our tractors full passed ISO9001 International Quality Certification system and China 3C Quality system.
* Due to the compact structure,small overall size,less fuel consumption,and being easy to operation, our tractors are widely accepted by the customers in the world.

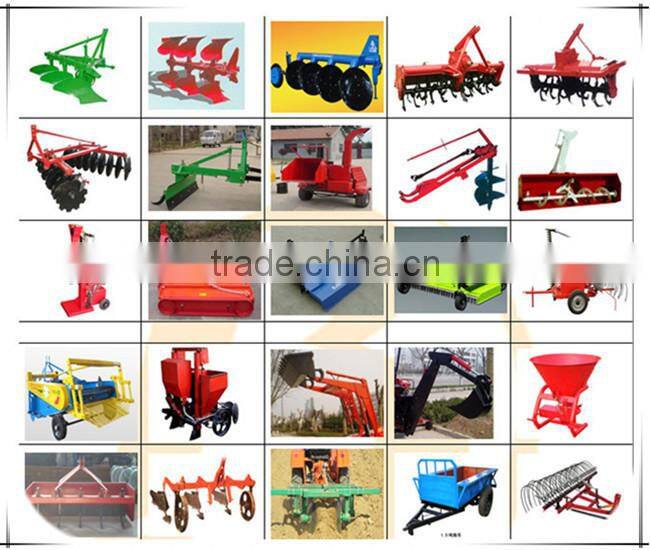

* They can be equiped with varied farm implements,such as front end loader,backhoe,slasher,wood chipper,snow grader,ect..
* Except the reasonable price,high quality goods,excellentservice is the basic of our business.
*The guarrantee of all our goods is 13 Months
