XCMG Motor Grader GR 180 Grader
- Qingdao Port China
- T/T
You May Like
-
SHANTUI Brand SG18-3 Motor Grader
-
XCMG GR200 Motor Grader Tires, Very Types Motor Grader Tires
-
Articulated Hydraulic Motor Grader SHANTUI SG21-3
-
2016 New Small Cheap SHANTUI Motor Grader SG16-3 For Sale
-
XCMG Motor Grader GR215 Motor Grader With Air Confitioner ZF Transmission
-
165hp Motor Grader GR165 XCMG LAND LEVELLER HOT SALE
Product Details
| Condition | New | Forward Speed(km/h) | 38 | |
| Reverse Speed(km/h) | 23 | Place of Origin | Jiangsu, China | |
| Brand Name | xcmg motor grader | Model Number | GR180 motor grader | |
| Weight | 15.4ton | Dimension(L*W*H) | 8900*2625*3470mm | |
| Certification | ISO Certificate | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
XCMG Motor Grader are mainly used in the operation of road surface leveling, ditch digging, slope leveling, bulldozing, scarification and snow removing on the road, airport and farmland. The motor grader is the necessary construction machinery for defense construction, mine construction, urban and rural road construction and irrigation works and farmland improvement.
XCMG Motor Grader GR180 Technical Specification
Engine model | 6CTAA8.3 D6114 |
Rated power/speed | 138kW/2200 140kW/2300rpm |
Dimension(LxWxH) | 8900×2625×3470mm |
Operating weight(Standard) | 15400kg |
Performance specification | |
Travelling speed ,forward | 5,8,11,19,23,38 km/h |
Travelling speed ,reverse | 5,11,23 km/h |
Tractive force(f=0.75) | 79KN |
Max. gradeability | 20% |
Tire inflation pressure | 260 kPa |
Working hydraulic pressure | 16 MPa |
Transmission pressure | 1.3~1.8MPa |
Operating specification | |
Max. steering angle of front wheels | ±50° |
Max. lean angle of front wheels | ±17° |
Max. oscillation angle of front axle | ±15° |
Max. oscillation angle of balance box | 15 |
Frame articulation angle | ±27° |
Min. turning radius using articulation | 7.3m |
Biade | |
Maximum lift above ground | 450mm |
Maximum depth of cutting | 500mm |
Maximum blade position angle | 90° |
Blade cutting angle | 28°—70° |
Circle reversing rotation | 360° |
Moldboard width X height | 3965×610mm |

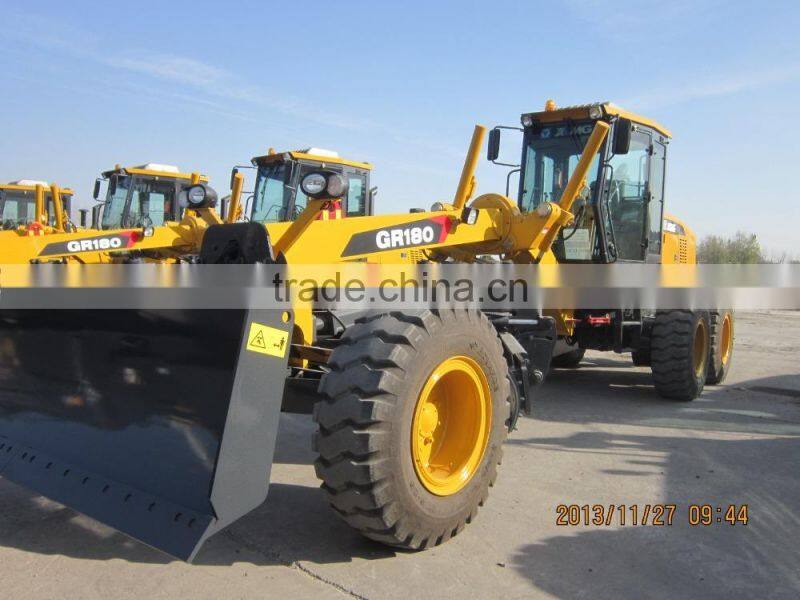

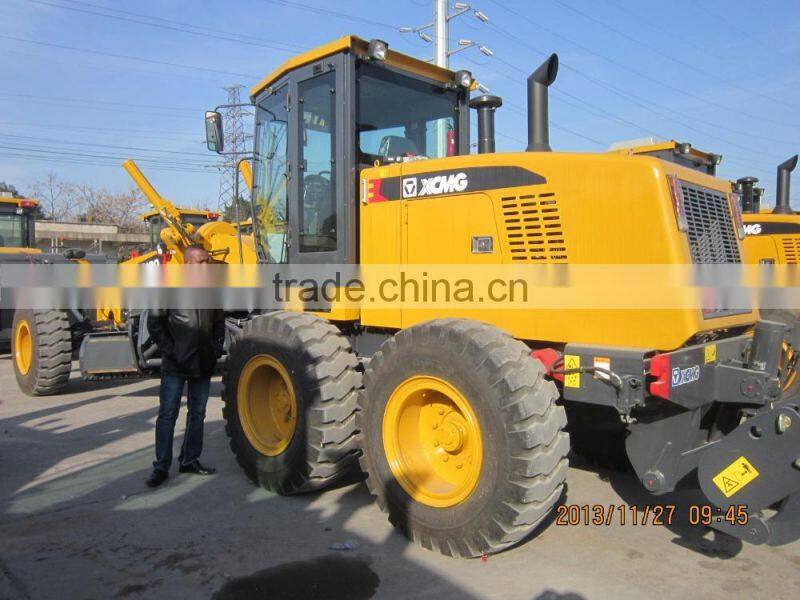

XCMG Motor Grader GR180 Pictures

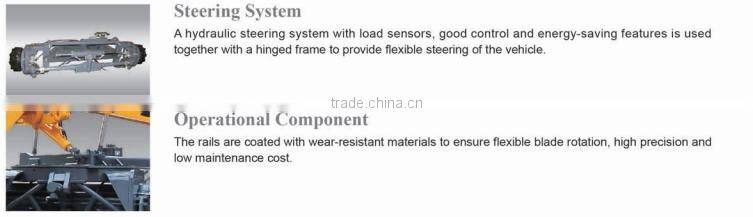

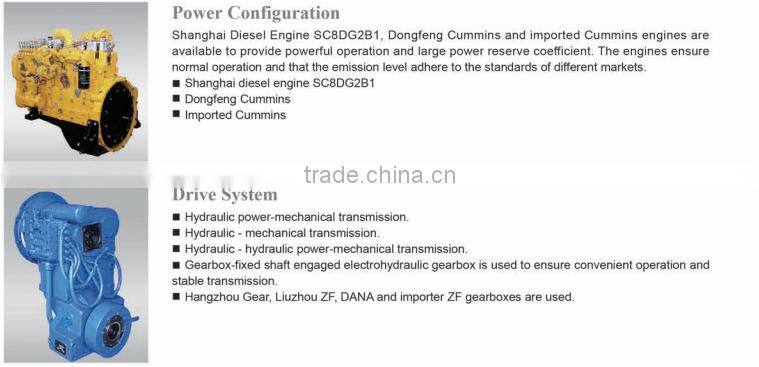

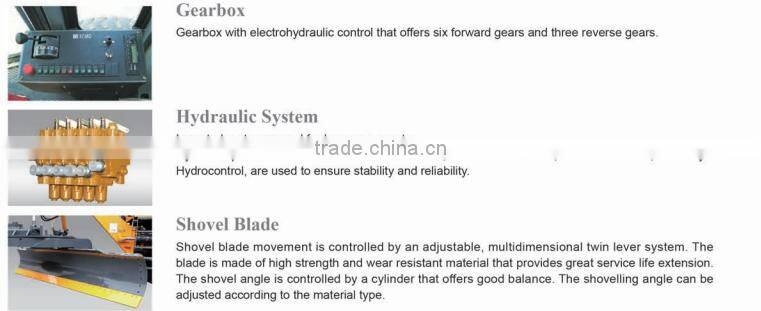

XCMG Motor Grader key parts
We already have customers in different country, like
Africa: Zambia. Mozambique. Ethiopia, Zimbabwe, Botswana, Algeria, Nigeria, Tanzania, Australian,
Europe: Belgium, Georgia, Poland, Romania
Oceania: Australia. New Zealand. Papua New Guinea
South America: Brazil, Guyana, Peru, Panama
Asian: Uzbekistan, Kazakhstan, Thailand and so on.

Direct sales from the manufacturer save you 30% of the fees
Guarantee from the manufacturer, no purchase risksAll new machines and no aged parts
No agents and no need to worry about the prices
Provide customized and differentiated product according to the requirements
Provide customized and differentiated product according to the requirements.We can make tools of specific length and thickness according to customers’ requirements and make our products more adapted to the special work conditions. We cooperate with multiple construction machinery parts suppliers and provide customers with more choice and more suitable products. Customers can directly participate in the product design, and we can also improve the products according to customers’ opinions. Thus we can make innovations in the product and technology and keep in line with customers’ requirements.
All-round aftersales service provides you peace of mind
Sound country-wide service system makes product maintenance easy and reliable.Complete parts logistics system provides you timely parts delivery service.
Warranty: We grants our clients a 12 month or 2000 hours warranty for any machines purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charges at our discretion.
Spare parts: We is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and service, wherever you are. Please submit your spare parts requires to us and list products name, model equipment serial number, description of required parts. We guarantee that your requires will be handled quickly and appropriately.
Installation & Maintenance: We is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of generators set and engine immediately. After installation, we will make inspection of the whole machine, operate equipment and provide you with testing date reports of installation and operation.
Training: We offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operating training, maintenance know-how, technical know-how training, standards, laws and regulation training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the clients side.
Technical Advice: We can also help clients coordinate with trained service personnel to provide you detailer and extensive knowledge about your specific machine, with our technical advices, you machine service life can be significantly prolonged and sustained with high capacity.
Welcome to contact Mr Ben Huang for more detail
Contact Person: Ben Huang
Cell:+86 18663633634
Skype: benscofield1
QQ: 1602816371
Add: Yangguang Garden, Qingzhou City, Shandong Provinice, China
