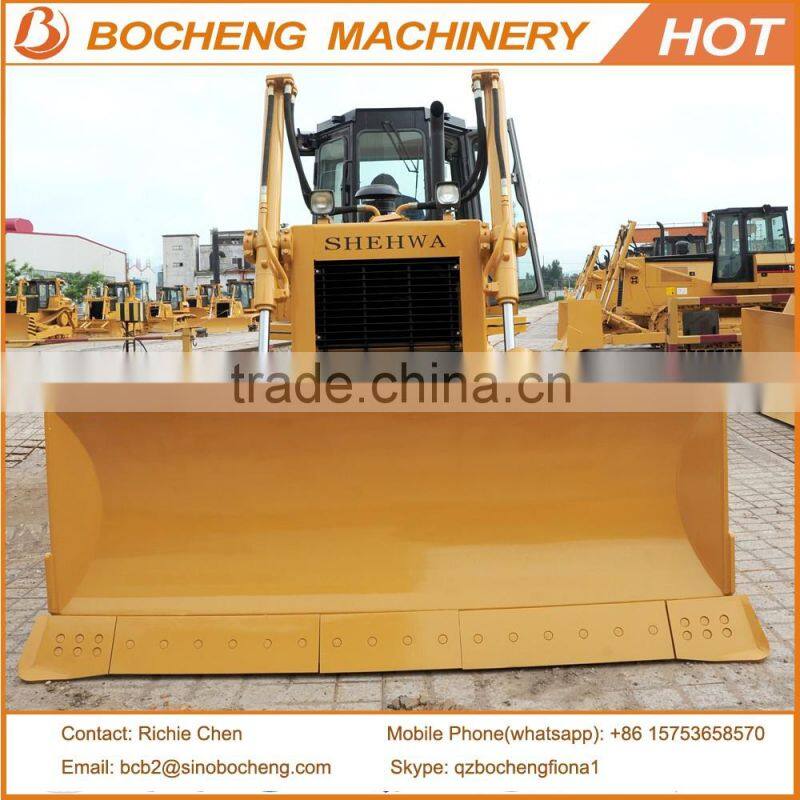

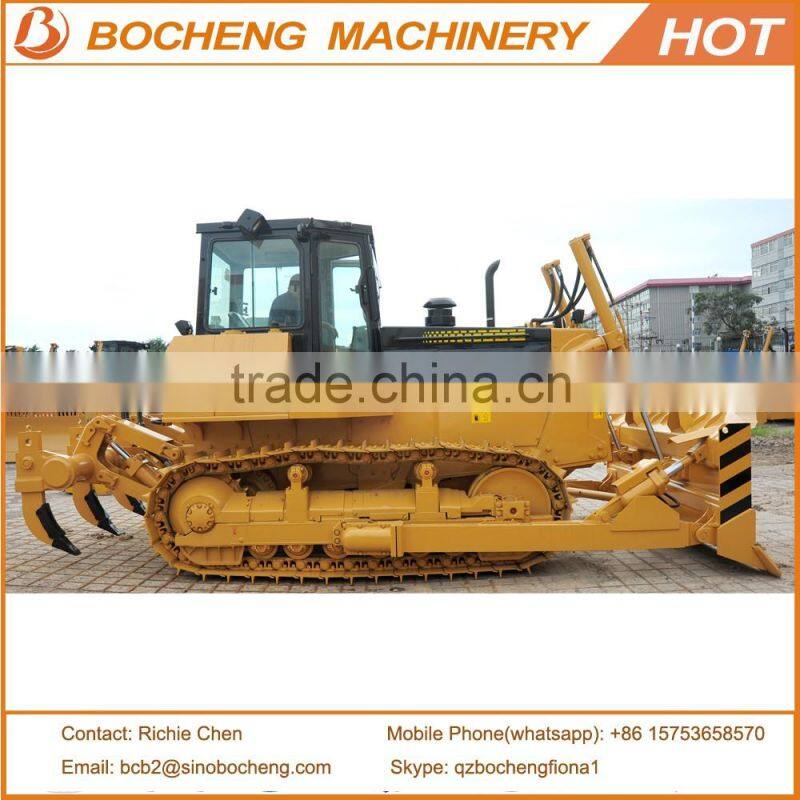

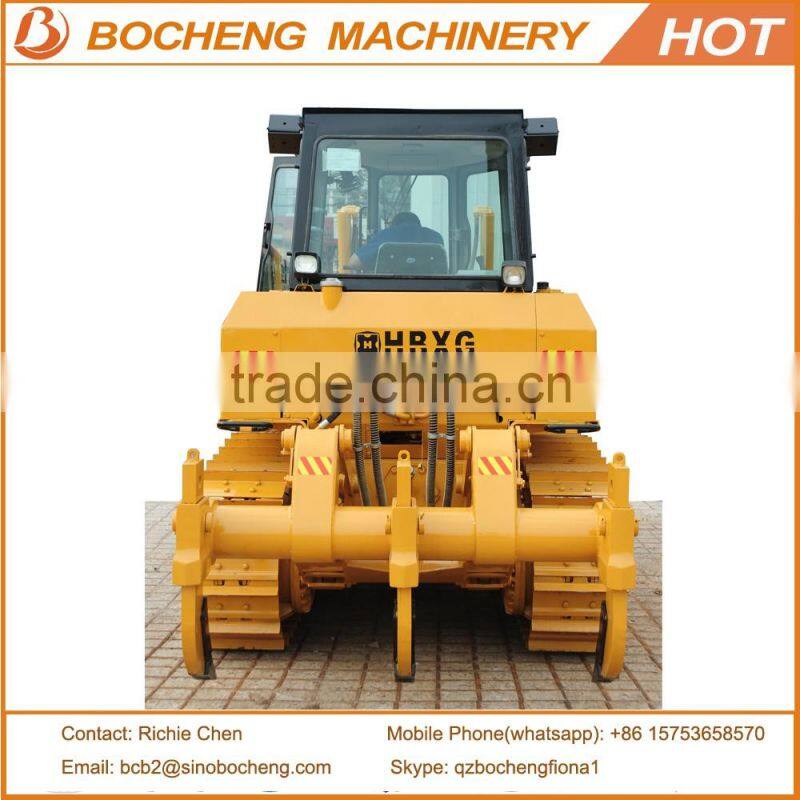

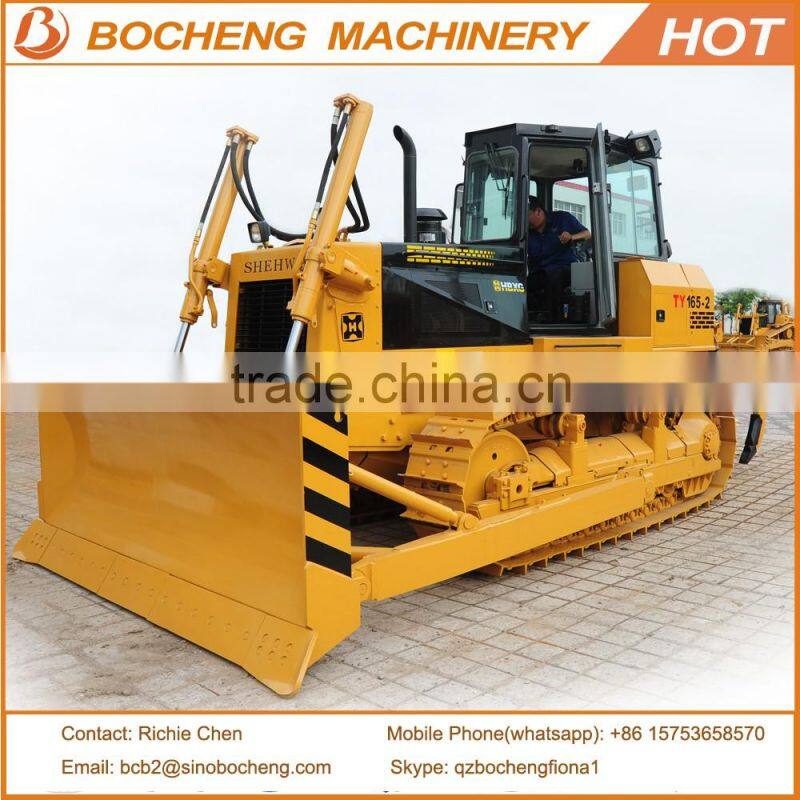

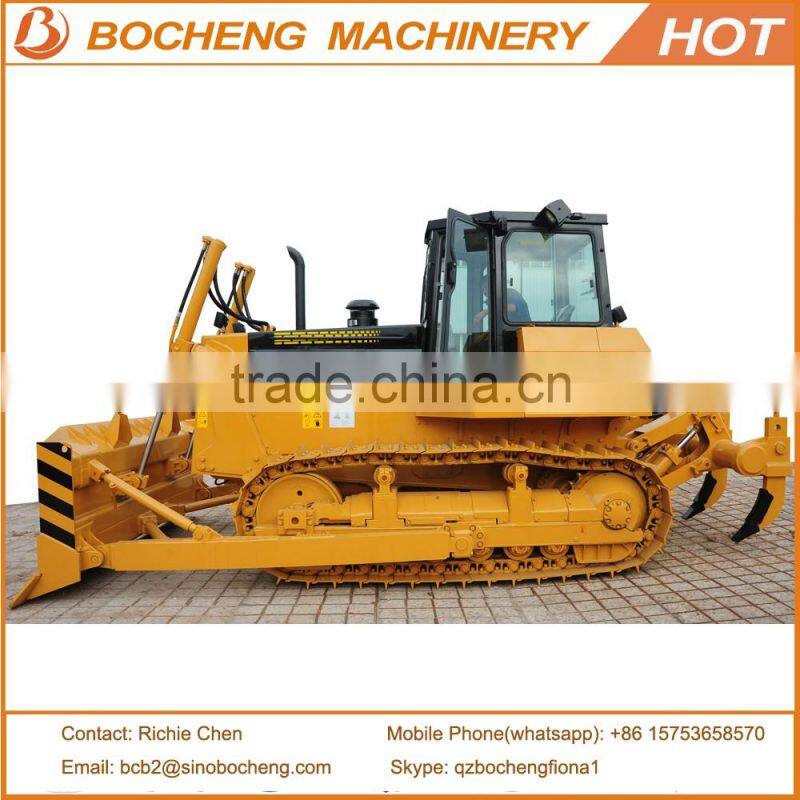

Hot Sale SHEHWA Bulldozer TY165-2 HBXG 160HP Dozer Price
- TianJin Port
- T/T
You May Like
Product Details
| Place of Origin | Hebei, China | Brand Name | HBXG | |
| Model Number | TY165-2 | Condition | New | |
| Moving Type | Crawler Bulldozer | Machine Weight | 17800kg | |
| Dimension(Long * Breadth * High) | 5416*3297*3160mm | After-sales Service Provided | Overseas service center available |
Product Description
Hot Sale SHEHWA Bulldozer TY165-2 HBXG 160HP Dozer Price
1,General Specifications
| Blade | Straight and tilting | Angular Blade |
| Ground pressure:(kpa) | 68.2 | 68.5 |
| Min. ground clearance:(mm) | 352.5 | 352.5 |
| Dozing capacity:( m3 ) | 5 | 7.4 |
| Max. digging depth:(mm) | 420 | 377 |
| Operation weight:(kg) | 17600 | 17700 |
| Track gauge:(mm) | 1880 | 1880 |
| Gradient: | 30°/25° | 30°/25° |
| Blade width:(mm) | 3297 | 4240 |
| Overall dimensions:(L×W×H)(mm) | 5416×3297×3160 | 5416×3297×3160 |
2,Undercarriage System
Type: | Swing type of sprayed beam, suspended structure of equalizer bar. |
Number of track rollers(each side) | 6 |
Number of carrier rollers(each side) | 2 |
Pitch (mm) | 203 |
Width of shoe (mm) | 500 |
3,Gear
1st | 2nd | 3rd | ||
Forward (Km/h) | 0-3.32 | 0-6.26 | 0-11.40 | |
Backward (Km/h) | 0-4.00 | 0-7.57 | 0-13.87 | |
4,Engine
Engine Name | Weichai WD10G178E25 |
Rated revolution:(rpm) | 1850 |
Flywheel power (KW) | 121 |
Max. torque:(N.m/rpm): | 830/1000-1200 |
Rated fuel consumption:(g/kw.h) | ≤215 |
5,Implement Hydraulic System
Max. system pressure (MPa): | 12 |
System output(L/min) | 185 |
Pump type: | Two groups Gears pump |
6,Driving System
Torque converter: | 3-element, 1-stage, 1-phase. |
Transmission: | Planetary, power shift transmission with three speeds forward and three speeds reverse, speed and direction can be quickly shifted. |
Steering clutch: | Multiple-disc oil power metallurgy disc compressed by spring. hydraulic operated. |
Braking clutch: | Brake is oil two direction floating band brake operated by mechanical foot pedal. |
Final drive: | The final drive are double reduction with spur gear and segment sprocket, which are sealed by duo-cone seal. |
Nude package by bulk ship or ro-ro ship.
One year warranty, original spare parts available, technical support.

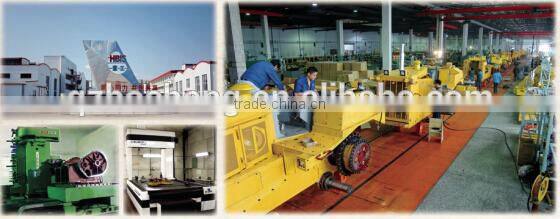

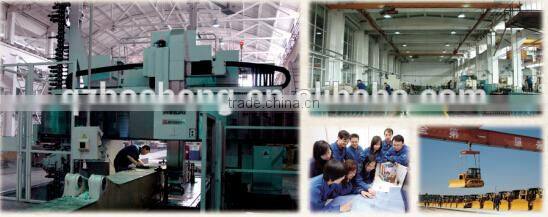

Factory:
Customer Visiting:
Foreign Fair:
Contact Us
- Qingzhou Bocheng Machinery Co., Ltd.
- Contact nameAlice Liu Chat Now
- Phone0086-536-3322511
- AddressYangguang Garden, Weifang, Shandong
