Industrial Mixing Agitator
- shang hai China
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Mixer Type | Agitator | |
| Product Type | Other, emulsion | Application | Viscous Fluid | |
| Additional Capabilities | Other, deposition prevented | Place of Origin | Hubei, China | |
| Brand Name | Ding xin | Model Number | top entry | |
| Max. Loading Capacity | 30000L | Voltage | 380V | |
| Power(W) | 5-55KW | Dimension(L*W*H) | customized | |
| Certification | ISO9001 | Warranty | ONE YEAR | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
industrial mixing agitator
Main Formation
reducer,coupling,stander,shaft,impeller
Different types of blades and relevant speed achieve the production condition
Feature
1. Compact structure,Smooth running, large bearing capacity
2. Speed adjusting function,long service life
3. suit for mixing and despersing different viscosity material
4. High efficiency of transmission,accurate installation and test.
Use
Agitator application range includes petrochemical, fine chemical, pharmaceutical, power generation(FGD), food and beverage, polymers and plastics, pulp and paper, water and wastewater treatment, mineral processing and biotechnology.
Different agitator be offered
Top Entry Agitators
Side Entry Agitators
Bottom Entry Agitators
Portable Mixers
Static Mixers
Magnetic Drive Agitators
Main Technical Standards:
Model | Power(KW) | Round speed | Dia of shaft (mm) | Length(mm) | Dia of impeller (mm) |
JBJ-800 | 0.75-1.1 | 8-20 | 48 | 1500-2000 | 800 |
JBJ-1200 | 0.75-1.5 | 6-20 | 57 | 1500-3000 | 1200 |
JBJ-1500 | 0.75-1.5 | 5-12 | 76 | 2000-3000 | 1500 |
JBJ-2000 | 1.1-1.5 | 5-12 | 89 | 2000-4000 | 2000 |
JBJ-2500 | 1.1-2.2 | 3-10 | 108 | 3000-4500 | 2500 |
JBJ-3000 | 1.5-3 | 3-10 | 108 | 3000-5000 | 3000 |
Cooperation
We'll provide the whole solution due to the mixture, function of agitator, intensity of mixing, operation etc
Welcome to ask for the data sheet.

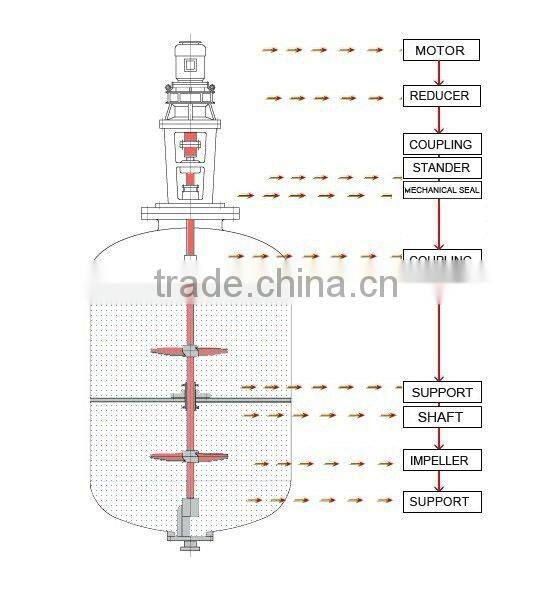

Inner construction as follows,

Contact Us
- Wuhan Dingxin Mechanical & Electric Equipment Co., Ltd.
- Contact nameYi Tu Chat Now
- Phone86-27-84698706
- Address3A-15F Mindong Plaza NO. 140 Hanyang Rd., Wuhan, Hubei
