50-200MM welding machine hdpe pipe
- NINGBO/SHANGHAI
You May Like
Product Details
| Place of Origin | Zhejiang, China | Brand Name | OEM | |
| Model Number | 7300-003 | Voltage | 220V | |
| Power | 1.2-5KW | Frequency | 50HZ | |
| Welding Area | Adjustable | Dimensions | 50-200MM | |
| Weight | 55KGS | Usage | welding PE,HDPE,PP | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
50-200MM welding machine hdpe pipe
each set Including:
NO. | item | unit | quantity | remark |
1 | Basic frame | set | 1 | Clamp cover(4pcs) |
2 | clamps | set | 1 |
|
3 | Hydraulic unit | set | 1 |
|
4 | Support | set | 1 |
|
5 | Planning tool unit | set | 1 |
|
6 | Heating plate | piece | 1 |
|
7 | Electic unit | set | 1 | voltage:380V |
8 | Panning tool | set | 2 |
|
9 | Special bolt clamp (M6) | piece | 1 | L=40,80,100,130 ( 8pcs) |
10 | Product certification | share | 1 |
|
11 | Product specification | share | 1 |
|
12 | Manual
| share | 1 |
|
accessories | ||||
13 | Double open wrench | hold | 1 | specification:32--36 |
14 | Cross screwdriver | hold | 1 | specification:200mm |
Product photo:
Application:
Wall hickness (mm) | Bead Height (mm) | Bead build-up pressure (MPa) | Soakin time T2(sec) | Soaking pressure (MPa) | Change-over Time T3(sec) | Pressure build -up time T4(sec) | Welding Pressure (MPa) | Cooling Time T5(min)
|
0~4.5 | 0.5 | 0.15 | 45 | ≤0.02 | 5 | 5 | 0.15±0.01 | 6 |
4.5~7 | 1.0 | 0.15 | 45~70 | ≤0.02 | 5~6 | 5~6 | 0.15±0.01 | 6~10 |
7~12 | 1.5 | 0.15 | 70~120 | ≤0.02 | 6~8 | 6~8 | 0.15±0.01 | 10~16 |
12~19 | 2.0 | 0.15 | 120~190 | ≤0.02 | 8~10 | 8~11 | 0.15±0.01 | 16~24 |
19~26 | 2.5 | 0.15 | 190~260 | ≤0.02 | 10~12 | 11~14 | 0.15±0.01 | 24~32 |
26~37 | 3.0 | 0.15 | 260~370 | ≤0.02 | 12~16 | 14~19 | 0.15±0.01 | 32~45 |
37~50 | 3.5 | 0.15 | 370~500 | ≤0.02 | 16~20 | 19~25 | 0.15±0.01 | 45~60 |
50~70 | 4.0 | 0.15 | 500~700 | ≤0.02 | 20~25 | 25~35 | 0.15±0.01 | 60~80 |

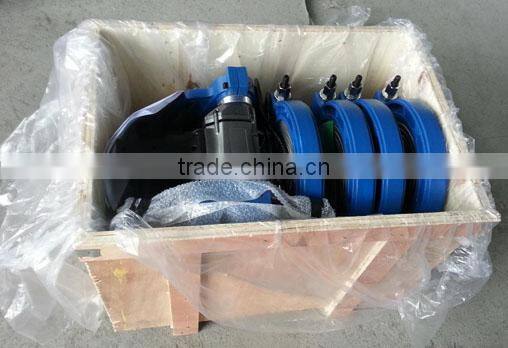

Packaging:
1.Normal Packing for welding machine hdpe pipe
2.As per customers'request
Shipping:
Sea shipment
Air shipment
Courier shipment
Quick Response:
Tel:0086-180 0665 5726
TradeManager:CN200845070
Skype: nbevergreen05
Service advantages:
1. Quick, efficient and professional response within 24 hours, 14 hours online services
2. 10 years manufacturing and exporting experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice
6. OEM/ODM services
7. Accept sample order before Mass Order
8. Multilingual communication services (English, Spanish, French, Portuguese, Japanese.etc.)
