Iron Butterfly Valve With Handle Lever Type
- NINGBO
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Standard or Nonstandard | Standard | Structure | Butterfly | |
| Pressure | High Pressure | Power | Pneumatic | |
| Material | Other, Iron | Temperature of Media | High Temperature | |
| Media | Water | Port Size | 2-3" | |
| Place of Origin | Zhejiang, China | Model Number | 9501 090 | |
| Brand Name | EVERGREEN |
Product Description
Iron butterfly valve with handle lever type
Standard:
Design standard:GB/T12238-2008, ISO 10631-1994 OR BS EN593-1998, BS 5155, MSS SP-67
FLANGE CONNECTION:GB/T17241.6-208, JIS B2212-B2214-1999, JIS B2220-2004, JIS B2210-1984, ANSI B16.5-2009, ANSI B16.47-2006, ISO 7005-2 OR BS EN1092-2002(PN6, PN10, PN16, Class150, 5K, 10K, 16K)
Face-to-face dimension: GB/T12221-2005, ISO 5752-1988 OR BS EN558-1
WORKING PRESSURE:GB/T13927-2008, JB/T9092-1999, ISO 5028-1993 OR BS 5755-1-1986
Top flange: ISO5211 standard

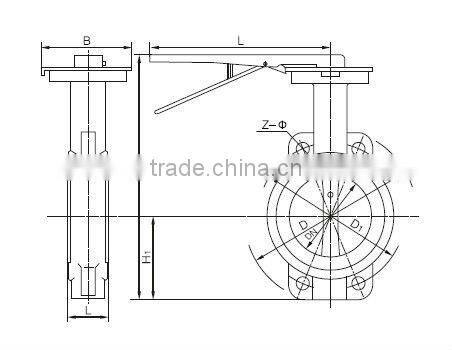

| DN(mm) | D | D1 | Z-O | L | H | H1 | A | B |
| 40 | 150 | 110 | 4-19 | 43 | 220 | 68 | 240 | 98 |
| 50 | 165 | 125 | 4-19 | 43 | 235 | 68 | 240 | 98 |
| 65 | 185 | 145 | 4-19 | 46 | 250 | 75 | 240 | 98 |
| 80 | 200 | 160 | 8-19 | 46 | 275 | 85 | 240 | 98 |
| 100 | 220 | 180 | 8-19 | 52 | 315 | 105 | 270 | 108 |
| 125 | 250 | 210 | 8-19 | 56 | 340 | 120 | 320 | 108 |
| 150 | 285 | 240 | 8-23 | 56 | 375 | 135 | 320 | 108 |
| 200 | 340 | 295 | 8-23 | 60 | 470 | 165 | 365 | 155 |
Packaging:
1. Normal packing
2. As per customer's request
Shipping:
Sea shipment
Air shipment
Courier shipment
Quick Response:
Mobile/WhatsApp/WeChat +86-133 4596 9968
TradeManager: cn209737435
Skype: nbevergreen04
Services advantage:
1. Quick, efficient and professional response within 24 hours, 14 hours online services.
2. 10 years manufacturing experience in agriculture field.
3. Technical support and solution by chief engineer.
4. Strict quality control system & team, high reputation in the market.
5. Full range of irrigation products for choice.
6. OEM/ODM services.
7. Accept sample order before Mass Order.
8. Multilingual communication services (English, Spanish, French, Portuguese, Japanese. etc.)
