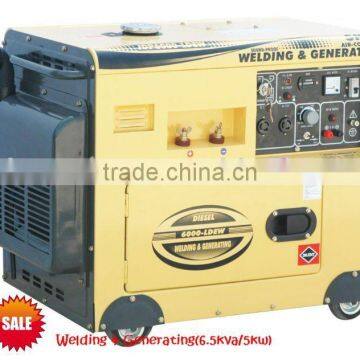

Welding & Generating(6.5kva/5kw)-portable/silent/open type
- 2000 Set / Sets per Month
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDP or OEM | |
| Model Number | JDP6000LHEW/JDP6000LDEW | Output Type | AC Single Phase | |
| Speed | 3000/3600RPM | Frequency | 50/60HZ | |
| Rated Voltage | 110/220/230/240 |
Product Description
Specifications
Welding & Generating with EPA certified powered by 186FA(E) engine,silent/open type, rated power 5kva.SUZHOU JINDING MACHINERY MANUFACTURING CO.,LTD
Specifications:
Model | JDP6000-LH(E)W | JDP6000-LD(E)W | |||
Generator | Type | Revolving Magnetic Field,2 pole,Self-Excitating,Single Phase | |||
voltage regulation | AVR | ||||
Frequency(Hz) | 50 | 60 | 50 | 60 | |
Max.AC Output(KVA) | 5 | 5.5 | 5 | 5.5 | |
Rated AC Voltage(V) | 220 | ||||
Rated AC Output(KVA) | 4.8 | 5 | 4.8 | 5 | |
Power Factor(cosφ) | 1 | ||||
Welding | Current in Welding(A) | 160 | |||
Continuous Load Rate | 40% | ||||
Welding Current Adjustment Range(A) | 5-180 | ||||
Engine | Model | JDP186FA(E) | |||
Type | Direct injection,Single-cylinder,Vertical,4-cycle,Air-cooled | ||||
Displacement(cm3) | 418 | ||||
Max.Output(HP) | 10 | ||||
Fuel | Light Diesel Fuel | ||||
Fuel Tank Capacity(L) | 15 | 16 | |||
Oil | SAE | ||||
Oil Capacity(L) | 1.65 | ||||
Starting System | Recoil/Electric Starting with Battery | ||||
Noise Level(7m)(dB) | 85 | 70 | |||
Standard Features | Fuel Gauge | √ | |||
Voltmeter | √ | ||||
AC Circuit Breaker | √ | ||||
Engine Switch | √ | ||||
handle&sheels | √ | ||||
Low Oil Pressure Alert | √ | ||||
Optional Features | AC Socket | √ | |||
DC Output 12V/8.3A | √ | ||||
Over Current Protection | √ | ||||
Hours Meter | √ | ||||
Dry Battery | √ | ||||
GFCI Socket | √ | ||||
Package | Packing size(L×W×H)(mm) | 720×520×640 | 950×550×770 | ||
Net Weight(kg/lb) | 100 | 165 | |||
Gross Weight(kg/lb) | 105 | 180 | |||
20FT(pcs) | 105 | 72 | |||
