Home > Products > WATER PUMP > 6.5HP Gasoline Engine Driven Water Pump (Max.Flow Rate 30m3/h)

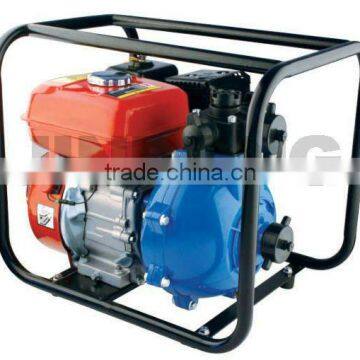

6.5HP Gasoline Engine Driven Water Pump (Max.Flow Rate 30m3/h)
Negotiable
/ Set
2 Sets(Min.Order)
- 1000 Set / Sets per Month
- Shanghai China
- T/T
You May Like
-
2inch self-priming diesel water pump
-
Diesel Engine Driven Water Pump (VDP50/VDP80/VDP100) Displacement 19m3/h
-
6.5HP Diesel Engine Driven Water Pump (Max.Flow Rate 22/32m3/h)
-
6.5HP Gasoline Engine Driven Water Pump (Max.Flow Rate 60m3/h)
-
6.5HP Gasoline Engine Driven Water Pump wp30 (Max.Flow Rate 60m3/h)
-
1.8HP Gasoline Engine mini Water Pump wp10 (Max.Flow Rate 7m3/h)
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDP | |
| Model Number | HP20A | Structure | Other, impeller pump | |
| Usage | Water | Power | Other, gasoline engine | |
| Standard or Nonstandard | Standard | Fuel | Gasoline | |
| Pressure | High Pressure | Application | Other, spinklers or a nozzle |
Product Description
Specifications
1) Heavy-duty full frame protection2) For construction, agriculture using.
3) Strong power
| Model | HP-20A |
| Outlet Size(mm) | 50 |
| Inlet Size(mm) | 50 |
| Speed(rpm) | 3600 |
| Displacement(m3/h) | 30 |
| Lift(m) | 65 |
| Suction(m) | 7 |
| Engine Model | G168-Ⅱ |
| Max Output(kw)/HP | 6.5 |
| Engine Type | 4-Stroke 25"Single-Cylinder with air-cooled |
| Puel Volump(L) | 1.2 |
| Bore*Stroke(mm*mm) | 68mm×54mm |
| Displacement | 196ml |
| Compression Ratio | |
| Max Power Output | 4.8kw/3600rmp |
| Recommend Power Using | 4.0kw/3600rmp |
| Max Torque | 11N.m/2500rmp |
| Start Model | Manual |
| Lgnition System | Non-contract Transistorized ignition |
| Air cleaner | Semi-dry or oil bath type |
| Fuel Tank Capacity | 3.6L |
| Fuel Consumption | 395g/kw.h |
| Package Dimensions(mm) | 520×400×450 |
| Oil Capacity(L) | 0.6L |
| N.W/G.W(kg) | 28.5/29.5 |
