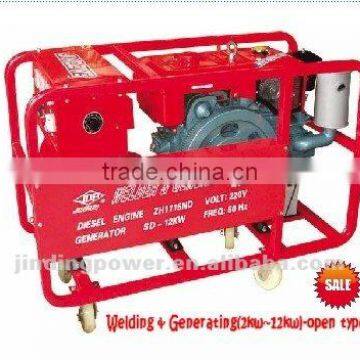

Open Type Diesel Welding Generator Set(8KW/10KW/12KW)
Negotiable
/ Set
1 Set(Min.Order)
- 5000 Set / Sets per Month
- Shanghai China
- T/T
You May Like
Product Details
| Place of Origin | Jiangsu, China | Brand Name | JDP | |
| Model Number | GFW-2/GFW-3/GFW-5/GFW-8/GFW-10/GFW-12 | Output Type | AC Single Phase | |
| Speed | 1500/1800 | Frequency | 50/60 | |
| Rated Power | 2kw~12kw | Rated Voltage | 230 |
Product Description
Specifications
1) It is very convinient to use2) It can just be used as a generator ,also can be used as a welder
3) Move easily
| Model | GFW-2 | GFW-3 | GFW-5 | GFW-8 | GFW-10 | GFW-12 | ||
| Rated output | 2 | 3 | 5 | 8 | 10 | 12 | ||
| Diesel Engine | Model | 170F(M) | R175(NM) | 195(NM) | S1100(NM) | ZS1110(NM) | ZS1115(NM) | |
| Rated Output(kw) | 2.94 | 4.4 | 8.8 | 11.32 | 14.7 | 16.2 | ||
| Fuel Consumption(g/kw.h) | 292.3 | 257 | 248.2 | 246 | ||||
| Cooling Method | Air/water-cooled | Evaporation or Radiator | ||||||
| Starting Method | Hand cranking or electric starting with battery | |||||||
| Welding& Generating | Model | SD-2 | SD-3 | SD-5 | SD-8 | SD-10 | SD-12 | |
| Rated Output(kw) | 2 | 3 | 5 | 8 | 10 | 12 | ||
| Rated Voltage(V) | 230 | 230 | 230 | 230 | 230 | 230 | ||
| Rated Current(A) | 8.7 | 13 | 21.8 | 34.8 | 43.5 | 52.2 | ||
| Frequency(Hz) | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | 50/60 | ||
| Power Factor | 1 | 1 | 1 | 1 | 1 | 1 | ||
| speed (rpm) | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | 1500/1800 | ||
| Phase Connection | 1-Phase | |||||||
| Excitation | Harmonic Excitation | |||||||
| Idle Voltage in welding(V) | 75 | 75 | 80 | 80 | 80 | 80 | ||
| Current in welding(A) | 80 | 120 | 160 | 200 | 230 | 300 | ||
| Working Voltage in Welding(V) | 25-30 | 25-31 | 25-32 | 25-33 | 30-35 | 30-35 | ||
| Continuous Load Rate(%) | 40 | 40 | 40 | 40 | 40 | 40 | ||
| Welding Current Adjusting Range(A) | 50-100 | 60-140 | 70-180 | 80-210 | 100-280 | 140-320 | ||
| G.W/N.W(kg) | 150/130 | 170/150 | 360/320 | 380/340 | 400/360 | 420/380 | ||
| Packing size(L×W×H)(mm) | 1000×520×650 | 1350×710×760 | 1400×710×760 | |||||
