culvert machinery,culvert pipe manufacturing machinery
- Shanghai
- T/T D/P D/A Credit Card PayPal
You May Like
Product Details
| Condition | New | Production Capacity | 0-8m/min | |
| Place of Origin | Zhejiang, China | Brand Name | MW | |
| Model Number | GY300 | Voltage | 380V | |
| Power(W) | 200KW | Dimension(L*W*H) | 30M x 3M x 2.0M | |
| Weight | 100T | Certification | CE, ISO9000 | |
| Warranty | 1 year | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

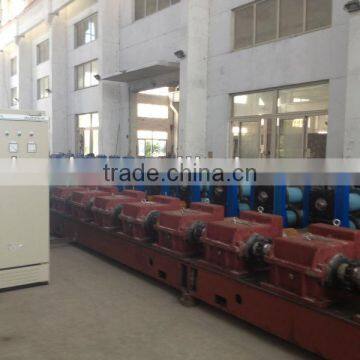

Galvanized Forming Equipment / Culvert Machine With Cutting Blade, Decoiler
FOB Price: | US $ 1 - 10 / Set |
Port: | Shanghai |
Minimum Order Quantity: | 1 Set/Sets |
Supply Ability: | 2 Set/Sets per Month |
Payment Terms: | L/C,T/T |
Quick Details
Place of Origin: Zhejiang China (Mainland) | Brand Name:MW | Model Number: GY300 |
Type: Pipe Production Line | Pipe Material: Carbon Steel | Application: culvert, aisles, Drain Pipe, pinnock, tunnel, makeshift road, negative wel and so on |
Purpose: Culvert pipe | Max.diameter: 6000mm | Thickness: 3mm-8mm |
Packaging & Delivery
Packaging Detail: | Nude |
Delivery Detail: | 50days after receiving down payment |
The drain pipe making machine is used to produce corruagated metal culvert pipe used in bridge, fundation pit, ect.
The corrugated culvert pipe forming machine is used to produce the metal culvert pipe for posttension purpose.
instead of the concreted one and the assembled
The culvert pipe making machine is used to produce the metal culvert pipe used in bridge, fundation pit, ect.
No | parameter | data | |
1 | diameter | 180-250mm | |
2 | material | 3-6mmX75-150mmX25-50mm, 4-8mmX147-200mmX50-55mm | |
3 | Decoiler | Double-cones uncoiler, max. 30T | |
4 | Seaming lock | Sprial lock forming | |
5 | Productivity | 0-8m/min, adjustable | |
6 | Cutting way | Cutting blade | |
7 | Driven | Motorised and hydraulic | |
8 | Motor power | 250KW | |
9 | Overall size | 30M (L) X 3m (W) X2.0m(H) | |
10 | weight | 100T | |
