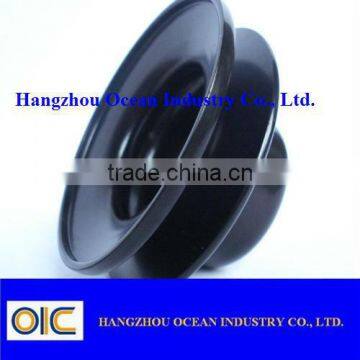

D073-01A motor pulley

Specifications

Motor pulley

Standard: GB, ISO, CEMA, DIN, JIS, ETC

 Production capacity: as usual 100 pieces/ week, but urgent order is acceptable

 Certificate: CE, ISO, BV, SGS, IKA, ETC

Advantage:

The life time: more than 30000 hours

Samples for testing are available.

The more relaxed payment terms

frame body use the high quality steel products,

the use of advanced equipment welding the weld quality die meticulously,.

high strength and durability.

Detailed conveyor steel drum feature:

1.Steel pulley's size depends on the detailed belt width, the structure can be according to our design or the customers' requirements, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc

2.Tube: Q235

3.Shaft: 45# STEEL

5.Bearing: Single & Double Row Deep Groove Ball Bearing 2RZ&2Z with C3 clearance.

6.Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard Rubbing Flinger Seal.

7. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.

8. Welding: Mixed gas shielded arc welding end

9. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting

Category:

.1.Driving pulley is the main part for transmitting the power.It can be divided into light duty, medium duty and heavy duty.

2.Driving pulley is the main part for transmitting the power. As per the different carrying capacities, The driving pulley can be divided into three categories: light duty, medium duty and heavy duty. And for the same diameter of the pulley, there are many different axle diameters and central spans.
    1)Light duty:
    Bearing Aperture: 80~100mm.
    The axle and the hub are connected by the single key. And it’s single plate welding. The axle is unidirectional out.
   2)Medium duty:
    Bearing Aperture: 120~180mm.
    The axle and the hub are connected by the ring lock.
   3)Heavy duty:
    Bearing Aperture:: 200~220mm.

Applications:

Used in the steel industry, harbor, coal industry, power industry, cements industry, and more.

Besides we can manufacture the rollers and idlers according to the buyers' requirements
