Timber Wood Trailer With Crane

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Agro-Forestry Monitoring System
Use	load, unload, transporate, grap	Power Type	Diesel
Place of Origin	Shandong, China	Brand Name	FM or OEM as required
Model Number	ZM1002, ZM3004, ZM5004, ZM8006	Dimension(LWH)	3700x1400x550
Certification	CE	Warranty	12 months
After-sales Service Provided	Engineers available to service machinery overseas

timber wood trailer
Tractor PTO powered
Attachments Easy-Exchange
Hydraulic system to use tractor

Log Trailer with Crane	1T	3T	5T	8T	10T	12T
Model	ZM1002	ZM3004	ZM5004	ZM8006	ZM10006	ZM12006
Matching Tractor	10-20 hp	20-40 hp	50-60 hp	70-80 hp	80-90 hp	90-100 hp
Net Weight	800kg	1500kg	2000kg	2500kg	2700kg	2900kg
Trailer Model	TR10	TR30	TR50	TR80	TR100	TR120
Loading Capacity	1000kg	3000kg	5000kg	8000kg	10000kg	12000kg
Loading Area	0.85m2	1m2	1.6m2	2.2m2	2.5m2	2.8m2
Total Length	3.6m	5.1m	5.1m	5.9m	6.3m	6.3m
Trailer Loading Length	2.0m	3.1 m	3.1 m	3.7 m	4.3 m	4.3 m
Total Width	1.4	1.6 m	1.8 m	2.2 m	2.3 m	2.5 m
Frame tube dimensions	80x80x6 mm	140x140x6 mm	140x140x6 mm	160x160x6 mm	160x160x6 mm	160x160x6 mm
Shaft Journals	33 mm	38 mm	38 mm	38 mm	38 mm	38 mm
OP: Brakes System:	Standard: Without brake; Option: Hydraulic brakes in front hubs/in 4 hubs
Crane Model	CR02	CR04	CR04	CR06	CR06	CR06
Grapping area	0.20 m2	0.28 m2	0.28 m2	0.28 m2	0.28 m2	0.28 m2
Reach Max.	3.5m	4.3 m	4.3 m	6 m	6 m	6 m
Lift capacity,kg/outreach, m ( without Grapple and Rotator)	400/2, 300/3, 200/3.5	1280/2,760/3, 500/4,450/4.3	1280/2,760/3, 500/4,450/4.3	1280/2,760/3,500/4,340/5,240/6	1280/2,760/3,500/4,340/5,240/6	1280/2,760/3,500/4,340/5,240/6
Slewing Angle	400°	400°	400°	400°	400°	400°
OP:Hydraulic Center	O	O	O	O	O	O
Remarks	S=STANDARD O=OPTION

FEATURE

1. Matching Tractors, ATV or truck

2. PTO, Gas/Diesel engine

3. Air Brake and wide tyre available

4. Hydraulic Transmission in Compact structure

5. Flexibility and convenient operation

6. Quick mounting and dismounting

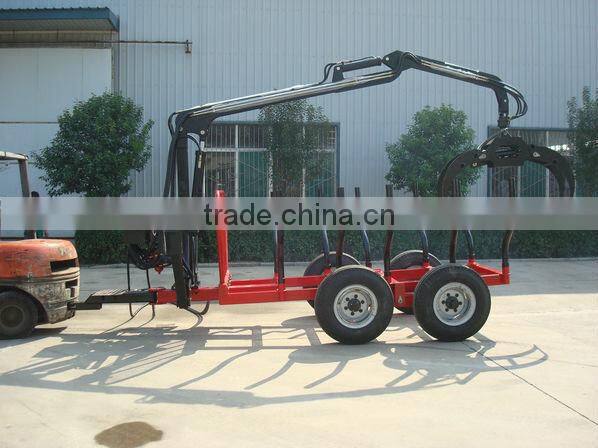

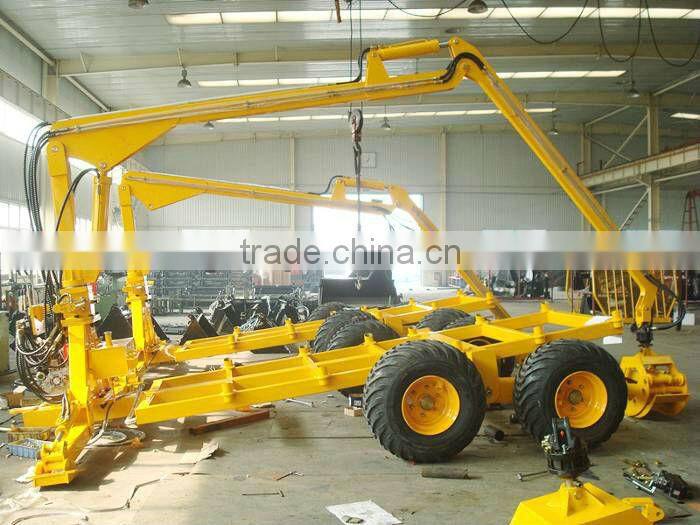

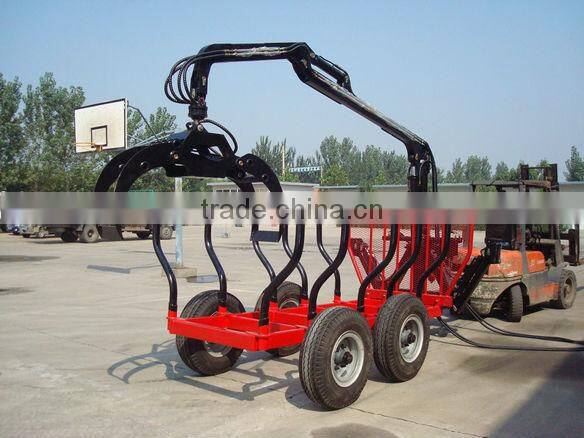

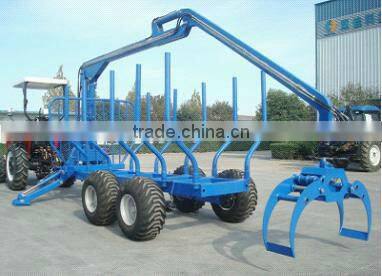

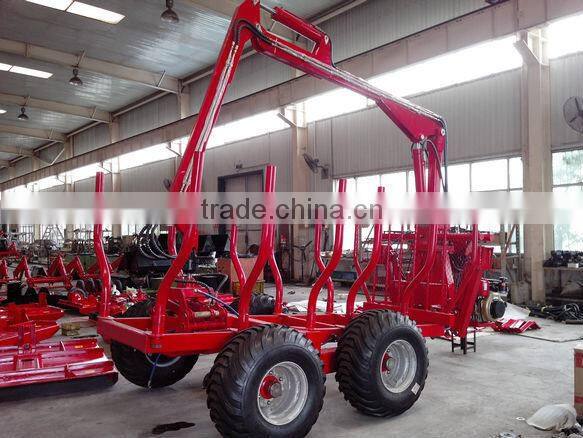

THE MACHINE DISPLAY

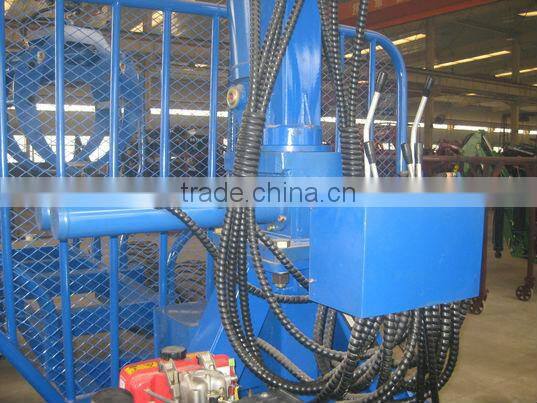

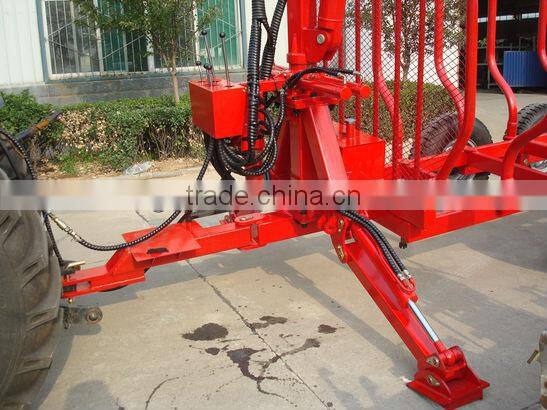

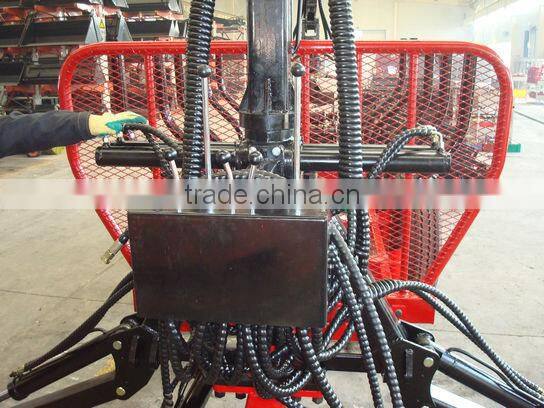

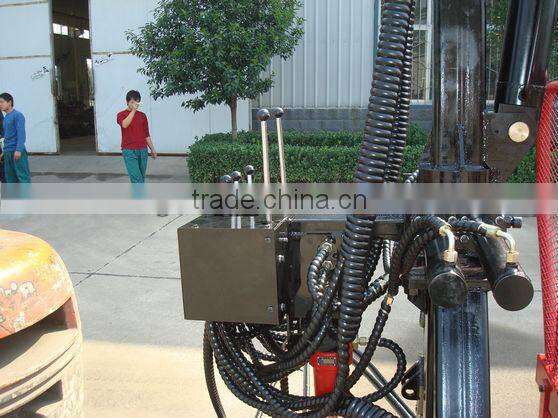

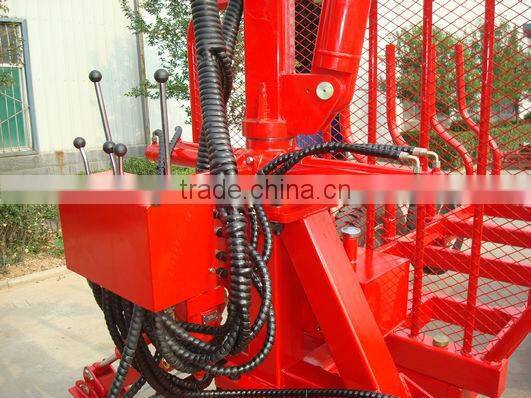

DETAILS DISPLAY
