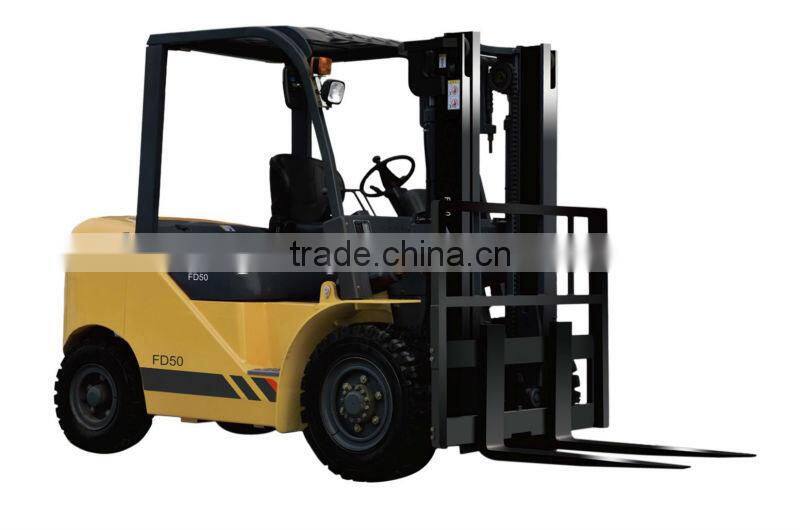

CE FD50 Small Diesel Forklift

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	FM	Model Number	FD50
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	5 ton	Max. Lifting Height	3000MM
Min. Lifting Height	205MM	Fork Length	1200MM
Fork Width	150MM	Overall Dimensions	4660x1995x1880mm
Certification	CE certificate	After-sales Service Provided	No overseas service provided

Diesel forklift
Rated capacity: 5 TON
Engine:CHAOCHAI6102
Dimension:4660x1995x1880mm

	Parameter Name		Unit	FD50
Speciality	Type of power			Diesel
	Rated capacity		kg	5000
	Load center		mm	600
	Lifting height		mm	3000
	Free lifting height		mm	205
	Size of forks (LWH)		mm	120015060
	Mast tilt angle(Front/Back)		.	6/12
	Minimum turning radius		mm	3250
	Minimum right-angle stacking aisle width		mm	5500
	Minimum right-angle aisle width		mm	2960
	Minimum ground clearance		mm	190
	Overhead guard height		mm	2450
	Front overhang		mm	615
Performance	Max driving speed (Full load)		km/h	26
	Max lifting speed (Full load/Without load)		km/h	390/450
	Max traction (Full load)		Kn	53
	Max grade ability		%	20
Size	Overall length( No fork)		mm	4660
	Overall width		mm	1995
	Max fork lifting height(With load backrest)		mm	4380
	Mast height		mm	2500
Chassis	Tyre Front wheel		mm	8.25-15-14PR
	Tyre Back wheel		mm	8.25-15-14PR
	Axle base		mm	2250
	Wheel base (Front/Back)		mm	1470/1700
	Dead weight(Without load)		kg	8250
Power	Bettery	Voltage/Capacity	V/Ah	(12/90)*2
	Engine	Model		CHAOCHAI6102
		Rated power	kW/r.p.m	81/2500
		Rated torque	Nm/r.p.m	353/1650
		Tylinders diameter * stroke	mm	102*118
		Number of cylinders		6.0
		Displacement	L	5.785
	Fuel tank capacity		L	140
	Transmission Gear position Front/Back			2/2 Power shfit
	Working pressure		Mpa	20
