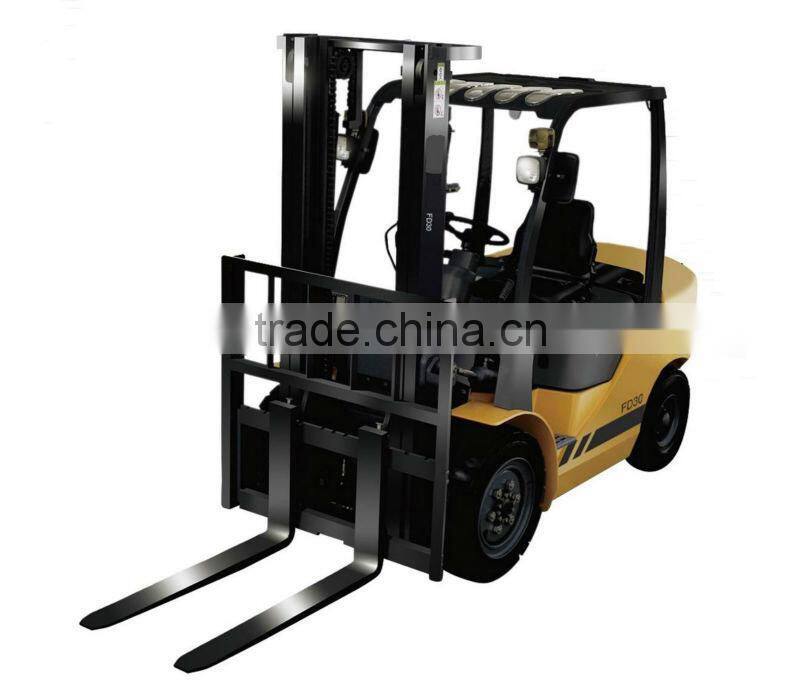

Mini Diesel Forklift FD20 for Sale CE Approve

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Anhui, China
Brand Name	FM	Model Number	FD20
Type	Manual Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	2.0ton	Max. Lifting Height	3000mm
Min. Lifting Height	135mm	Fork Length	1070mm
Fork Width	122mm	Overall Dimensions	2570x1160x4024mm
Certification	CE approve	After-sales Service Provided	No overseas service provided

Diesel forklift
Rated capacity: 2.0
CE approve
Engine:XINGCHANG490BPG
Power:37KW

		Parameter Name	Unit	FD20	FD25
Speciality		Power model		Diesel	Diesel
		Rated capacity	kg	2000	2500
		Load center	mm	500	500
		Lifting height	mm	3000	3000
		Free lifting height	mm	135	135
		Size of forks (LWH)	mm	107012240	107012240
		Mast tilt angle(Front/Back)	.	6/12	6/12
		Minimum turning radius	mm	2240	2240
		Minimum right-angle stacking aisle width	mm	4110	4110
		Minimum right-angle aisle width	mm	2010	2010
		Minimum ground clearance	mm	110	110
		Overhead guard height	mm	2070	2070
		Front overhang	mm	470	470
performance		Max driving speed (Full load)	km/h	19	19
		Max lifting speed (Full load/Without load)	km/h	490/510	490/510
		Max tractive force (Full load)	KN	17	17
		Max grade ability	%	20	20
Size		Overall length( No forks)	mm	2570	2570
		Overall width	mm	1160	1160
		Max fork lifting height(With load backrest)	mm	4024	4024
		Mast height	mm	1990	1990
Chassis		Tyre Front wheel	mm	7.00-12-12PR	7.00-12-12PR
		Tyre Back wheel	mm	6.00-9-10PR	6.00-9-10PR
		Axle base	mm	1600	1600
		Wheel span(Front/Back)	mm	970/970	970/970
		Dead weight(No load)	kg	3350	3750
drive	Battery	Voltage/Capacity	V/Ah	12/90	12/90
	Engine	Model		XINGCHANG490BPG	XINGCHANG490BPG
		Rated power	kw/r.p.m	37/2650	37/2650
		Rated torque	Nm/r.p.m	148/2000	148/2000
		Cylinders diameter *Stroke	mm	9*100	90*100
		Number of cylinders		4.0	4.0
		displacement	L	2.54	2.54
Fuel tank capacity			L	60	60
