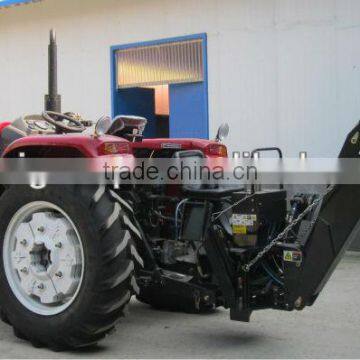

backhoe loader match tractor

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	FM
Model Number	LW-8	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Other, Backhoe loader
Dimension(Long * Breadth * High)	2250 X 1100X800mm	Warranty	1year
After-sales Service Provided	No overseas service provided

1)3 Point fits most tractors with a Category 1 or 2 or 3 Hitch.
2)Frame Mount Model Currently fits the 20-80hp series tractors

LW Series Quick Attach Type
3 Point Hitch Backhoe
for 18 hp -82 hp tractor

Specifications LW Series Quick Attach Type 3 Point Hitch Backhoe

Model	LW-6	LW-7	LW-8
Max.digging depth (mm/ inch )	1850/ 73	2150/ 85	2640/ 1046
Max.digging depth flat bottom (mm/ inch )	1600/ 63	2000/ 79	2500/ 98
Max. digging height (mm/ inch )	2500/ 98	3400/ 134	3510/ 138
Loadover heith (mm/ inch )	1400/ 55	1760/ 69	2000/ 79
Transport height (mm/ inch )	1733/ 68	1878/ 74	1952/ 77
Ground clearance (mm/ inch )	280/ 11	290/ 11	290/ 11
Boom pivot height (mm/ inch )	420/ 16	500/ 20	500/ 20
Straight wall digging depth (mm/ inch )	895/ 35	1134/ 45	1446/ 57
Max.digging radius (mm/ inch )	2800/ 110	3360/ 132	3930/ 155
Loading reach (mm/ inch )	1044/ 411	1187/ 47	1945/ 77
Bucket rotation(angle)	160	160	160
Swing Arc(angle)	140	140	140

Bucket size and Cap.

Size(mm/ inch )	250/ 10	300/ 12	400/ 16	450/ 18	500/ 20	550/ 22
Cap.(mm)	0.030	0.036	0.048	0.054	0.06	0.066
