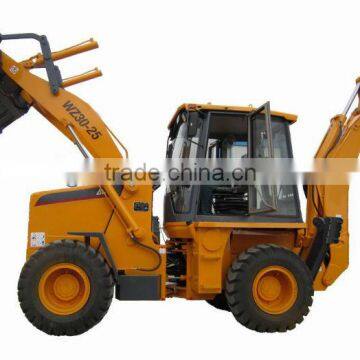

CE Certificate Backhoe Loader WZ30-25 With Cummins Engine

FOB Price

Negotiable / Unit

1 Unit(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Brand Name	WM
Model Number	WZ30-25	Place of Origin	Shandong, China
Type	Backhoe Loader	Moving Type	Other, Backhoe loader
Dimension(Long * Breadth * High)	7130 x 2200 x 3850mm	Rated Load	7600 KG
Certification	CE certificate	Warranty	1year
After-sales Service Provided	No overseas service provided

1)CUMMINS 4BT3.9-C100
2)Power: 74 KW
3)Weight:7600KG
4)With CE certificate

WZ30-25 BACKHOE LOADER WITH CUMMINS ENGINE AND WITH CE CERTIFICATE:

	Item		Technical Specifications
	Rated Lifting Capacity		25KN
	Bucket Capacity		1.0m³
	Hoe Bucket Capacity		0.3 m³
	Dump Height		2680mm
	Dump Reach		945mm
	Excavating Radius		5780mm
	Arm Lifting Time		6s
	The Sum of Three Items		≤11.5s
	Max. Speed		20km/h
	Min. Turning Radius		5210mm
	Max. Excavating Depth		4500mm
	Max. Digging Force		≥45KN
	Max. Turing Angle		35°
	Wheelbase		2380mm
	Tread		1590mm
	Tyre	Specification	16/70-20 10PR with tube
		Air Pressure	Front 0.32Mpa Rear 0.28Mpa
	Operation Weight		7.6t
	Figure Dimension	L x W x H	7130 x 2200 x 3850mm
	Brake System	Air Pressure of Brake System	0.6 - 0.8 Mpa
		Service Brake	Air-hydraulic Combination
Transmission System	Type of Torque Converter		YJ280 three elements/single stage/single phase
	Torque Ratio		3.1
	Oil Pressure of Torque Converter Inlet		0.25 - 0.3 Mpa
	Type of Gearbox		Planetary Gear, power shift
Diesel Engine	Model		CUMMINS 4BT3.9-C100
	Rated Power		74kw
	Rating Rev.		2400r/min
Axles	Type of Main Transmission		spur gear, single stage
	Transmission Ratio		26
	Type of Final Reducer		Planetary gear shift, single stage
Oil Capacity	Fuel Tank		90L
	Hydraulic System		130L
	Engine Oil		11.5L
	Gearbox		20L
	Axle and Final Reducer		30L
	Brake System		3.5L
