Farm Irrigation 360 No Bridge Mini Sprinklers Standing Type

Farm Irrigation 360 No Bridge Mini Sprinklers Standing Type

      A. Unique  machanism with strong propulsion-Smooth operation even in bad conditions.

       B Firm construction without a bridge-Uniform water distribution.

       C Anti-insect design, Swivel seals the nozzle once the water is shut off.

       D  Integral nozzle filter, Protects the nozzle from debris in the water.

       E Special engineering raw materials for long life and durability.

       F Large drops for added wind resistance.

C:  Application:

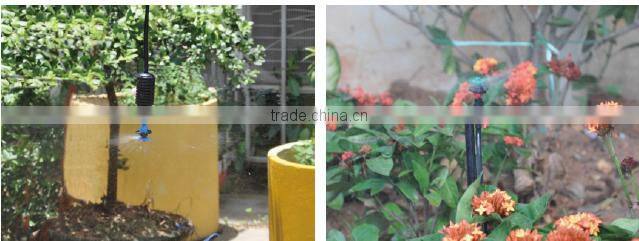

     1. The product is designed for irrigation of mature trees with large root zone.
      2. Product can be used for low precipitation rate and high uniformity overlapping irrigation

          in greenhouses.

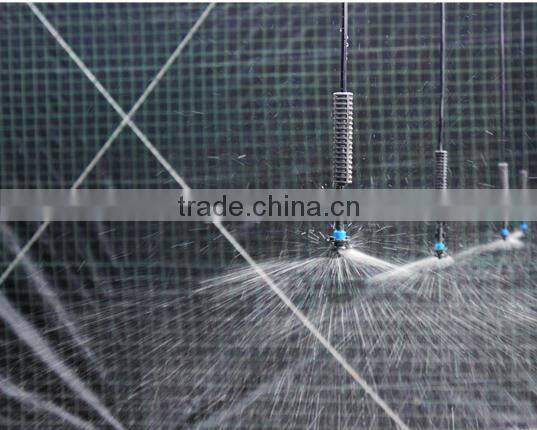

     3. Product can be used for upside down irrigation in greenhouses and nurseries in places

         where a lower angle of throw is required
     4. Applicable for landscape, cooling and frost protection systems.

 1.Working pressure: 1.0-3.0 bar(14.5-43.5psi).

 2.Optimal working pressure: 1.0-2.0 bar(14.5-32psi).

 3.Wetting diameter: 5.5-9.0m (18-30 Ft).

 4.Recommended Filtration:100 mesh for flow rates up to 50L/h.

                                               80 mesh for flow up to 70L/h.

 5.Note:the distance between sprinkler and ground should be 1 m vertically.
