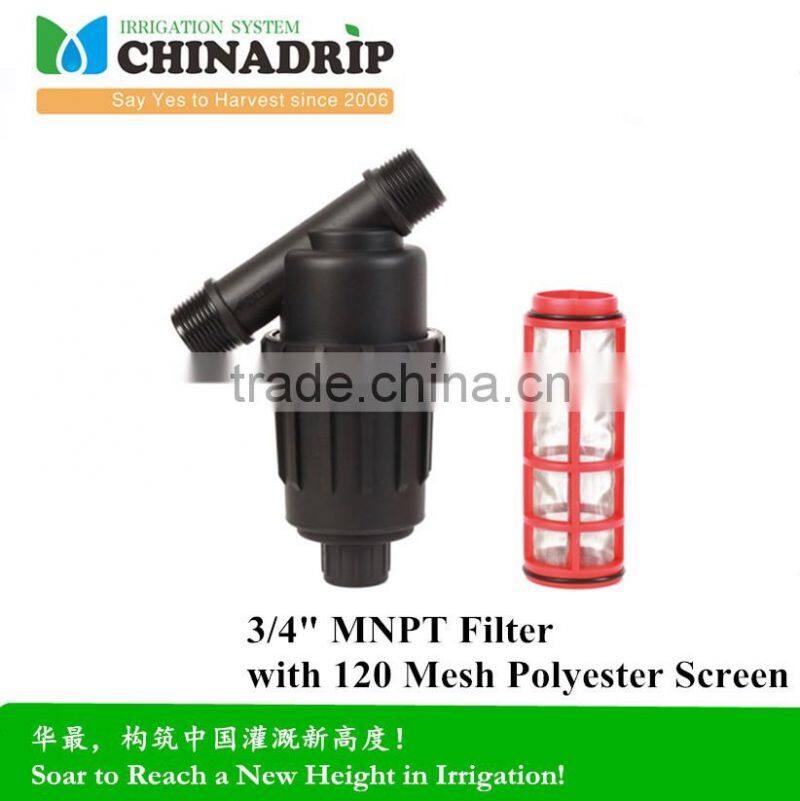

Filters 3/4" MNPT Filter With 120 Mesh Polyester Screen Irrigation Filter

• Dimensions: Filter, 3/4"and 1": 4.7/8" H x 7"
• Filter configuration: 3/4" or 1" NPT male inlet and outlet
• Filter cylinder length: 6"
• Filter surface area: 28.5 square inches
• Materials: O-ring: EPDM , Screen: Stainless or polyester
• Maximum flow rate: 3/4": 11 GPM
• Maximum working temperature: 130 degree F
• Operating pressure: up to 120 PSI
• Recommended flow rate: up to 11 GPM
• Size: 3/4"

• Available with flushing plastic ball valve
• Available with or without manual shut off valves
• Color-coded replacement screens
• Easy maintenance: the screen can be extracted from the filter for easy cleaning
• Large filtration area allows longer intervals between flushing
• Low friction loss
• Molded plastic construction with stainless steel screen
• Non corrosive materials
• Resistant to chemicals and fertilizers commonly used in landscaping
• Screens have excellent resistance to most common chemicals
• Wide range of polyester and stainless steel screens in 80 to 200 mesh

The filter screens are readily accessible for easy removal and cleaning. This line of filters includes a manual flush valve for easy flushing or removal of particles trapped in the bottom of the filter.

Screen filters are the most common filters used in the irrigation industry and in most cases the least expensive. They are generally used as a backup for any type of drip irrigation installation and are mainly installed where the quality of water is good. Screen filters are excellent for removing hard particulates from water, such as sand and other small elements often found in city water. The screen filters are not suitable for removing organic materials such as algae, mold and slime. These non-solid materials tend to embed themselves into the screen material where they are very difficult to remove. In other cases they simply slide through the holes in the screen by temporarily deforming their shape. Screen filters are cleaned by removing the cover and hand cleaning the screen.
