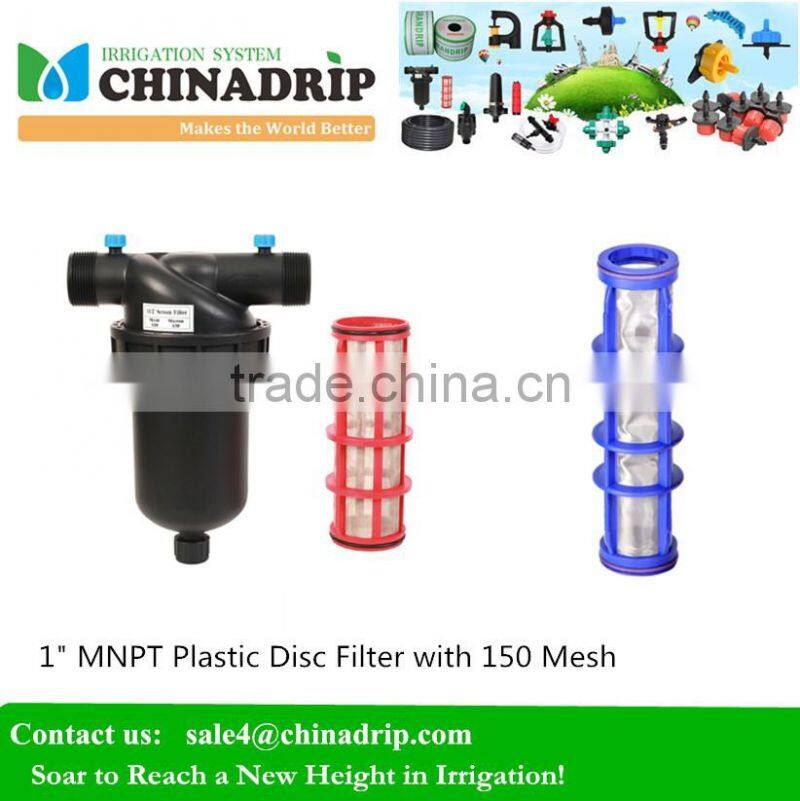

Drip Irrigation 1" MNPT Plastic Disc Filter 120 Mesh Irrigation Filter

• Filter disc elements: 150 mesh (color black)
• Filter configuration: 1" NPT male inlet and outlet
• Filter cylinder length: 5"
• Filter dimensions: 1" 4.7/8" H x 7" W
• Filter surface area: 28 square inches
• Maximum flow rate: 1": 18 GPM
• Maximum working temperature: 130 degree F
• Operating pressure: up to 120 PSI
• Size:1"

• Color-coded disc replacements and screens are interchangeable and easy to identify
• Disc element provides in-depth filtration due to the discs’ outer surface area and the depth of the disc element for retaining organic matters
• Disc elements have excellent resistance to most common chemicals
• Easy maintenance: the disc element assembly can be extracted from the filter for easy cleaning
• Large filtration area allows longer intervals between flushing
• Low friction loss
• Non corrosive materials
• Sediments accumulate on the outer face of the stacked disc, allowing clean water to flow through the staked discs out of the filter

How to Install Screen and Disk Filters:

1.) Since the filter is a part of the head unit of your drip irrigation system, it is to be installed after the backflow preventer and before the pressure regulator.

2.) Firmly screw the filter into place. There is no need for additional tools or glue.

3.) Make sure the filter is easily accessible for routine cleaning.

Note: When using pipe threading, be sure to use a layer of teflon tape on the threaded ends of the filter housing.

Note: Be sure to install the filter in regards to the flow directional arrow on the side of the filter housing.
