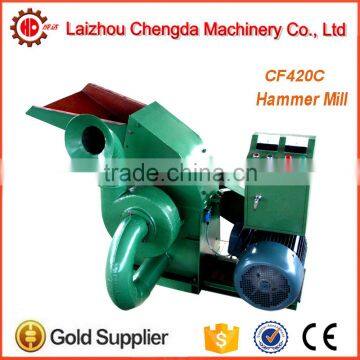

Feed hammer mill & Grinder & Crusher CF420B

Model:  CF500

Voltage: 380V

Capacity:800-1100kg/h

Packing Size: 124*97*106cm

Model:  CF420

Voltage: 380V

Capacity:200-500kg/h

Packing Size: 112*82*107cm

Model:  CF198

Voltage: 380V

Capacity:200-300kg/h

Packing Size: 97*75*84cm

Specifications

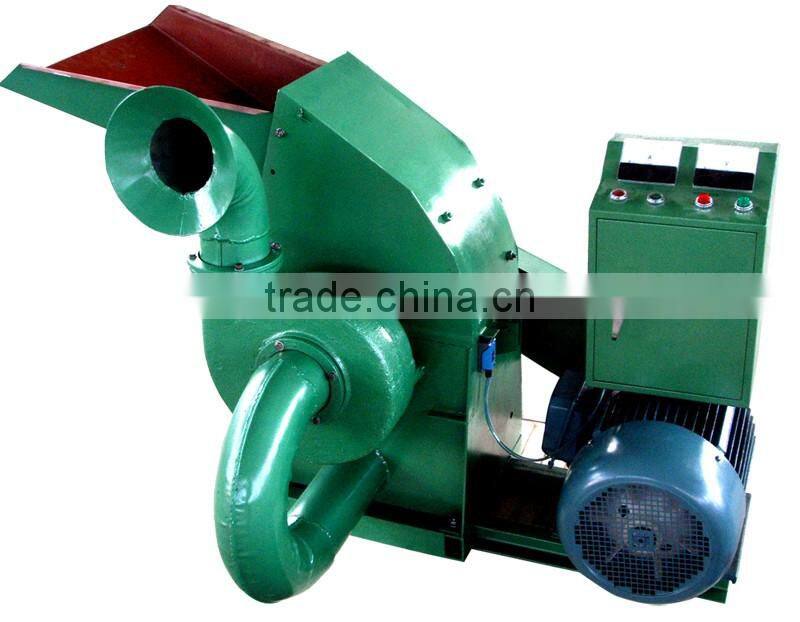

The hammer mill is fixed with an engine with a power of RP-driven all kinds of different power. Its working principle is: after the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step-by-step. The sieve have the following size: 1.5mm, 2mm, 4mm and 6mm. Then the crushed materials will leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge, finally, the powder will be discharged down.

All CF Series Wood Hammer Mills

In actual production, a cyclone is always a necessary device in wood hammer mill. What’s the function of cyclones? How does it work? Does the cyclone really work?

Cyclonic separation is a method to remove wood particles from air steam though vortex separation without filters. In wood chips and sawdust collection, rotational effects and gravity are main ways to separate the mixed air flow. This method can be also used to separate fine droplets of liquid from a gaseous stream.

A high speed rotating airflow is established within a cylindrical or conical container called a cyclone. Airflow begins at the tops of cyclone and ends at the bottom, moving in a spiral way. Wood particles out from wood hammer mill are drew up into airflow starting separation procedure. Wood chips and sawdust in the rotating steam have much inertia to follow the moving airflow. They will strike the inner wall until falling to the bottom, waiting to be collected.

The main advantage of cyclones is to reduce the dust content in air to protect your lungs and breathing system. Pneumoconioses and black lung disease are all cause by long term exposure to dust. Please taking heath into consideration when purchasing a wood processing machines.
