Home > Products > FKL series floating pellet machine > Wet series floating fish feed extruder, fish feed extruder machine, extruder machine for fish feed

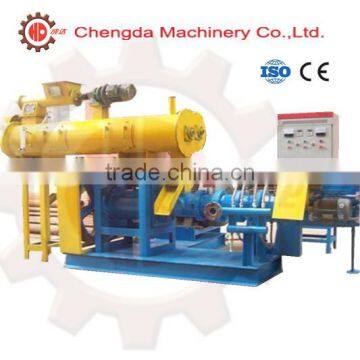

Wet series floating fish feed extruder, fish feed extruder machine, extruder machine for fish feed
- 3000 Set / Sets per Month
- tianjin
- T/T L/C D/P D/A Credit Card PayPal
You May Like
-
Hot sale wet series poultry feed pellet machine, catfish feed pellet machine,fish feed pellet mill machine
-
Low consumption floating fish feed extruder, fish feed pellet mill, pet feed pellet machine with ce
-
Widely application fish feed pellet machine, feed pellet extruder machine, floating fish feed extruder with ce
-
Good quality poultry feed pellet mill, livestock feed pellet mill, feed pellet mill for sale
-
European standard animal feed pellet machine, fish feed pellet machine, floating fish feed extruder machine
-
Fish feed pellet machine/ floating fish feed extruder/ pellet machine for fish feed with ce
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | Chengda Machine | Model Number | LZCD135-B | |
| Type | Feed Pellet Machine | Voltage | 380V 50HZ | |
| Power(W) | 75kw | Dimension(L*W*H) | 3750*1980*1800mm | |
| Weight | 2250 kg | Certification | CE ISO | |
| Warranty | 1 Year | After-sales Service Provided | No overseas service provided |
Product Description
| Fish Feed Pellet Machine Introductons |
The fish feed machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab and pet like dog cat etc. The puffing fish feed pellets can float on the water surface without dissolution for over 24 hours. According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.
|
| Floating Fish Feed Pellet Machine Features |
| 1). The feed pellets can keep floating for over 24 hours without pollution on water. |
| 2). Pellet size from diameter 1mm-12mmjust by changing the mould. |
| 3). High temperature and high pressure cooking process can kill the salmonellosis and bacterial infections and also makes the pellets easily to digest. |
| 4).The cutting device can make pellets of different length. |
| 5). We can provide whole fish feed pellet production line |
Working Principle of the Extruder |
The heart of the extruder machine working is: preconditioning, cooking and die shaping. With boiler continuously providing hot steam into the conditioner, materials can be fully cooked and the nutritional value is improved. The cooking process can cause a high level of gelatinization of starches, results in feeds with good water stability. The fish feed extruder is a long barrel with a screw auger inside which is specially designed to subject feed mixtures to high heat and steam pressure. When feed exits the die at the end of the barrel, trapped steam blows off rapidly, the soft warm pellets expand, and a low density floating pellet is produced. After that a cutting device will cut the formed pellets into different length as required. The extruder is very versatile, and can make feeds with many different characteristics.
|
Technical Parameters of Wet Type Fish Feed Pellet Mill | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
| Raw Materials for Small Wood Pellet Mill |
| 1). Biomass pellets: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, saw dust, etc. |
| 2). Feed Pellets: Animal feed was a product of materials such as alfalfa, grain and oil cake,etc. |
| 3). Moisture content of material: 14%-18% |
| 4). Material size: less than 5mm. |
| 5). Materials for Floating Fish Feed Extruder: 1. Raw materials can be: corn, wheat, soybean, grain, bone powder etc. 2. Raw materials need to be grinded into less than 2mm. 3. Raw materials moisture content is around 20-25%. |
| Kinds of Pellets |
|
| Right Way to Feeding |
1. Do not feed too quickly or too much. This wastes money and pollutes fish farms. 2. Observe how fish respond to feeding and portion the feed appropriately. Low consumption may be a sign of disease or deteriorating water quality. 3. It is best to give frequent feeds in small quantities. 4. If using dry pellet feed, consider having an automatic feeding machine installed to save manpower. |
| Attentions |
| 1). Our fish feed extruder is of single screw design. |
| 2). The pellets extruded from pellet mill is about 80℃ and moisture content is 18%- 20%, so you should equip a dryer and cooler if the capacity is more than 500kg/h. While for small capacity, you can dry them in the sun. |
| 3). We provide technical formula for making floating fish feed pellets after placing order. |
| 4). We send extra easy wear parts for free including two sleeves, one screw, one cutting knife and three die moulds |
24 hours service online |
1. We provide 1 year guarantee. 2. We provide English manual and video for installation & operation. 3. If required, we could send technicians for installation and commissioning, training. 4. We provide feed formula and free spare parts.
|
Laizhou Chengda Machinery Co., Ltd was founded in 1992, which is a high tech enterprise that integrates new product design, development, manufecturing and international trade business.
Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Our company always takes the product quality and credibility as the foundation of us present and tomorrow survival and development. We always adhere to the "quality and reputation first" concept.And we have got the 'quality advanced company" and "quality trustworthy company" and the "honorary company". we are AAA level enterprise to be named by the national quality, reputation and service department.
Our company is located in Laizhou Bay, near to Qingdao seaport. It's convient in sea, road, and air transportation, we have very perfect import and export service system in China. At the same tine , we have a widely range of commodity information network, partners all over the world. Believe our sincere cooperation will creat a better tomorrow.
CONTACT INFORMATION |
| Sales Director: Julia Yuan |
| Tel: +8615684049935 |
Whatsapp:+8615764256578 |
| Skype: lzhcjulia001 |
| Address: Sanlihezi Village, Wenfeng District, Laizhou City, Shandong Province, China |
| FAQ |
| 1. How to order? |
| After you decide to purchase, we will send you proforma invoice with our bank information, bring this PI to the bank, and ask to make T/T for the payment. For single set, your machine can be ready within 30-45 days after we getting the payment, we will send to the port and deliver to you by sea. |
| 2. Related products? |
| CDM60-C, CDM40-C, CDM80-B |
| 3. How to get to your factory? |
| Our company is located in Sanlihezi Village, Wenfeng Road, Laizhou, Shandong province, near Qingdao, if you arrive in Qingdao Liuting Airport, we can drive to Qingdao to pick you up to our factory. |
| 4. How long is your warranty period? |
One year |
5. How does your factory do quality control? |
Our factory has gained CE certificate and ISO certificate. " Quality is priority" we always pay great attention on quality controling from the begining to the end. |
