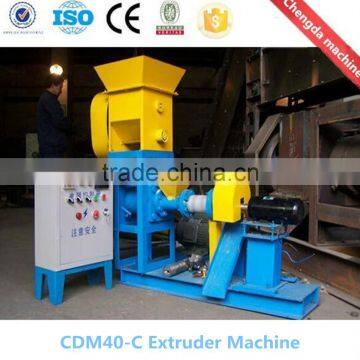

CDM40-C, Floating fish feed extruder pellet machine with CE

The fish feed machine is widely used for producing grains into high-grade aquatic feed pellets for fish, catfish, shrimps, crab and pet like dog cat etc. The puffing fish feed pellets can float on the water surface without dissolution for over 24 hours.

According to your requirement and production scale, floating fish feed machine can be classified into dry type machine and wet type machine.

Model: CDM40-C

Capacity: 30-40kg/h

Power: 5.5kw

Screw Diameter: 40mm

Feeding Power:0.4 kw

Cutting Power: 0.4kw

Model: CDM50-C

Capacity: 60-80kg/h

Power: 11kw

Screw Diameter: 50mm

Feeding Power:0.4 kw

Cutting Power: 0.4kw

Model: CDM60-C

Capacity: 120-150kg/h

Power: 15kw

Screw Diameter: 60mm

Feeding Power:0.4 kw

Cutting Power: 0.4kw

Model: CDM70-B

Capacity: 180-200kg/h

Power: 18.5kw

Screw Diameter: 70mm

Feeding Power:0.4 kw

Cutting Power: 0.6kw

Floating Fish Feed Pellet Machine Features :

1). The feed pellets can keep floating for over 24 hours without pollution on water.

2). Pellet size from diameter 1mm-12mmjust by changing the mould.

3). High temperature and high pressure cooking process can kill the salmonellosis and       bacterial infections and also makes the pellets easily to digest.

4).The cutting device can make pellets of different length.

5). We can provide whole fish feed pellet production line.

The heart of the extruder machine working is: preconditioning, cooking and die shaping. With boiler continuously providing hot steam into the conditioner, materials can be fully cooked and the nutritional value is improved. The cooking process can cause a high level of gelatinization of starches, results in feeds with good water stability. The fish feed extruder is a long barrel with a screw auger inside which is specially designed to subject feed mixtures to high heat and steam pressure. When feed exits the die at the end of the barrel, trapped steam blows off rapidly, the soft warm pellets expand, and a low density floating pellet is produced. After that a cutting device will cut the formed pellets into different length as required. The extruder is very versatile, and can make feeds with many different characteristics.

1). Biomass pellets: straw, alfalfa, wood waste, cornstalks, cardboard, grass, leaves, clippings,rice husks, branches, wood shavings, saw dust, etc.

2). Feed Pellets: Animal feed was a product of materials such as alfalfa, grain and oil cake,etc.

3). Moisture content of material: 14%-18%

4). Material size: less than 5mm.

5). Materials for Floating Fish Feed Extruder: 1. Raw materials can be: corn, wheat, soybean, grain, bone powder etc. 2. Raw materials need to be grinded into less than 2mm. 3. Raw materials moisture content is around 20-25%.
