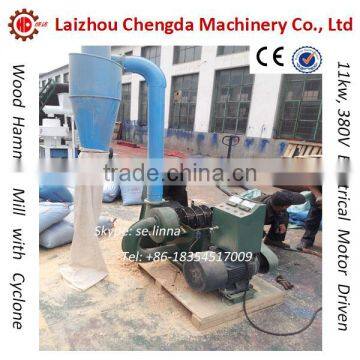

Hot sale coconut shell wood hammer mill crusher for sale

Working principle
The hammer mill is fixed with an engine and a power of RP-driven all kinds of different power.
After the raw materials were put into crushing chamber, the high-speed operated hammer sheets will impact the raw materials over and over again, then the raw materials will be crushed into pre-set size step by step. Then the crushed materials will be leak out from the sieve. The draught fan will convey the leaked materials into separator centrifuge. Finally, the powder material will be discharged down below and the air will be discharged upper.

 Main Features of Wood Hammer Mills
1. With capacity 200-500kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing

Machine Parts

Name: Sieve

Brand: chengda

Original: China, Shandong

The hole diameter can be 1.5mm, 2mm, 4mm, 6mm, 8mm

Main Features

Name: Sieve
Brand: Chengda
Original: China, Shandong
The sieve is made by Iron Sheet. When we use it, please avaid metal materials put into hammer mill so that to demage the sieve.

Machine Parts

Name: Hammer Sheet
Brand: chengda
Original: China, Shandong
The hammer sheet is made by iron sheet. If we use it in a right way, we can use it more than 1000 hours.

How to choose a good quality wood hammer mill?

Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

Laizhou Chengda Machinery Co., Ltd
