China Manufacturer of small wood chips hammer mill machines

FOB Price

USD $800 - $1,500 / Set

1 Set(Min.Order)

Supply Ability 1000 Set / Sets per Month
Port qingdao
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	chengda machine	Model Number	CF420C
Voltage	380V	Power(W)	11kw
Dimension(LWH)	11282107cm	Weight	360kg
Certification	CE; ISO	Warranty	one year
After-sales Service Provided	No overseas service provided

Product Description

This hammer mill can grinding all kinds of crop stalks, such as corn stems, clover, grass, peanut shoots, rice straw, barley, grain,legumes etc. this machine drived by one motor , with no dead angle for grinding raw material. Operate door can be moved fully, it's easy to be operated. This machine is widely used in grinding and processing, it's perfect machine for feed mill, Fungus farm.
This series of machine have advantage of compact structure, Strong and durable, Safe and reliable, easy operation, lower noise and vibration, high efficiency and low energy consumption, etc. With double discharge to connect material and convenience to use, the spare part of the machine completely adopt quality material, outsourcing parts adopting domestic optimal product, the whole machine’s quality is reliable, long-life.

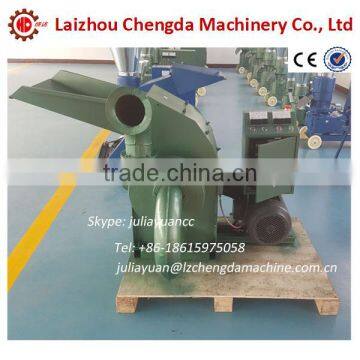

Small Wood Chips Hammer Mill Crusher--- 11kw, 380V, Three Phase

Hammer mill is new- style and multipurpose machine, it is used for all kinds of straw, cotton stalk, alfalfa, peanuts shell and foodstuffs etc.
2. CF420 hammer mill can be driven by both electrical motor and diesel engine, you can choose which you prefer.
3. CF420c is driven by the electrical motor, 11kw, 380v, three phase.
4. The capacity of CF420C is 200-500kg/h, it is suitable for home use.
5.It has simple construction, convenient operation, high efficiency and low power consumption.

There are several model of hammer mill for you choose

Model	Power	Voltage V/50Hz	Sieve Screen Size	Sieve Screen Size	Capacity
CF158	2.2KW	220V	360*160mm	1.5-10mm	60-120kg/h
CF198	4KW	380V	510*200mm	2-10mm	200-300kg/h
CF198A	7.5HP		510*200mm	2-10mm	200-300kg/h
CF420B	7.5KW	380V	680*280mm	2-10mm	200-500kg/h
CF420C	11KW	380V	*680280mm**	2-10mm	200-500kg/h
CF420A	15HP		680*280mm	2-10mm	200-500kg/h
CF500	22KW	380V	820*390mm	2-10mm	900-1100kg/h
CF500A	55HP		820*390mm	2-10mm	900-1100kg/h

Diesel Engine Powered Wood Hammer Mill--- CF420A, 15HP or 22HP

Our CF420 hammer mills can be driven by electric motor and diesel engine, you can choose one you prefer. As for the diesel engine powered, CF420A can be driven by 15hp or 22hp. There is an E-start for CF420A, you can use it to start the hammer mill more easily.

Model	Power	Sieve Screen Size	Sieve Screen Specification	Capacity	Packing Size
CF420A	15HP	680*280mm	2-10mm	200-500kg/h	14773109cm
CF420A	22HP	680*280mm	2-10mm	200-500kg/h	14774111cm

Add electrolyte into the storage battery
CF420A is driven by diesel engine with electrical start. Storage battery is one part of the electrical start. You need to buy electrolyte for lead storage battery. Then add the electrolyte into the storage battery.

Main Features of Wood Hammer Mills

1. With capacity 200-500kg/h, this hammer mill can satisfy a large production demand on a daily basis.
2. The ability to change screen size, and the option of a variable speed frequency drive control, enable processing a variety of materials using the same hammer mill.
3. Both coarse and fine grinding can be realized through adjusting the gap between hammers and screen.
4. The core part ---the hammer flake is scientifically designed to have two concussion parts, thus when one part is worn out, you can turn over to use the other part.
5. The angle of the screen can be 180° which allows for high throughput at lower power consumption.
6. Equipped with air blower, the crushed material can be directly collected and transported to next machine for further processing.

The Hammer Mill Cutter and Sieve

Wood hammer mills are able to crush both forestry and agricultural material, brittle and fibrous material, such as bamboo, stalk, grass and shrub. A screen with cutting edges is used to control the wood particle size. If the size is larger than screen, these material will be sent back to be grinded again until they can get though the screen. The size of the grinded material depend on the size of screen and the rotation speed.

Kinds of Raw Materials

How to choose a good quality wood hammer mill?

Choose a reliable wood hammer mill manufacturer. Machines look all same outside. So the quality will be more or less similar. Please change your views right now. Wood hammer mill from small workshop must be much more cheap compared with these mills from larger factories, however, the texture of metal will be a tremendous difference. In general, stainless steel 4Cr13 means the carbon content is 0.4% and chrome content is 13%. The higher the carbon content and lower chrome content, the easier the metal to be oxidized.

Certifications

Our Service

1. 1 year guaranteed time with life-time service.
2. Free training, Guidance Installation and Debugging.If needed, engineers can be sent to your factory for installation and commissioning, training.
3. English manual and video for installation & operation.
4. Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours.

Pre-Sales Service

* Inquiry and consulting support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the machine, training how to use the machine.

* Engineers available to service machinery overseas.

Packing & Delivery

Packaging
Size	14774111cm
Weight	350/390kg
Packing & Delivery	Strong plywood case as exported standard, if your order is big we suggest shipping by container, we will calculate the total volume of your order and saving shipping cost for you. Shipping: By sea, By air; Express (DHL/FedEx; Railway; Highway)

Our Company

Laizhou Chengda Machinery Co., Ltd

Our company was founded in 1992, which is a high tech that enterprise integrates new product design, development, manufecturing and international trade business.Main products: flat die pellet mill, vertical ring die pellet mill, wood chipper, hammer mill, pellet cooler and cutting wood machine etc.. Please free free to contact us if you have any inquiries and we will try our best to meet your demands.

FAQ

What kind of raw material is suitable for the Small Pellet Press Machine ?
A: All kinds of biomass waste, such as sawdust, wood branch, straw, coconut shell, corn, straw, grain,soybean and etc.

Any requirements on materials?
A: Ideal size of the raw material should be 1-5mm, ideal moisture of the powder should be 10%-20%

What kind capacity do you have?
A: 40-60kg/h,120-200kg/h, 180-250kg/h, 300-400kg/h, 400-500kg/h and 500-600kg/h,600-800kg/h and etc.

Can I visit your factory, where is your factory located?
A: Yes, sure, welcome to visit our factory at any time, we are in Laizhou city. Shandong province,China

About the installation, can you help us to install them?
A: Yes, sure, we can sent technical personnel to the scene of the on-the-spot guidance equipment installation, debugging and training operators,

Any further question, please be free to contact me by phone, email, whatsapp etc.
Contact Person: Miss. julia yuan Skype: juliayuancc Tel: +86-18615975058 Whatsapp: 008618615975058
