Home > Products > Split & Sliding Bearing > high quality SN617 split plummer block bearing
high quality SN617 split plummer block bearing
USD $0.1 - $300
/ Piece
1 Piece(Min.Order)
- Shanghai
- T/T D/P D/A Credit Card
You May Like
Product Details
| Bore Size | 10, 500 | Brand Name | HHZC | |
| Model Number | SN617 | Place of Origin | Jiangsu, China |
Product Description
Specifications
1.high quality split plummer block bearing2.material:cast-iron
3.packing:single box
4:competitive price
5.OEM service
The main products of our company is Plummer blocks, such as SN series , SD series , SNU series , Z2500Y series…;plain bearing block housings, such as H2000 series , H4000 series , ZHC2-00 series , XH000 series…;Insert ball bearing units, such as UCP series , UCF series , UCFL series , UCT series; Adapter sleeves, withdrawal sleeves and other bearing accessories. Besides, we also can offer OEM service, or process non-standard bearing housings according to the customers' samples or drawings.

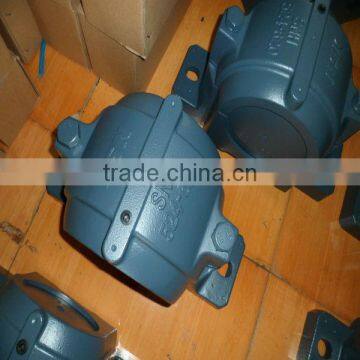

Product picture:
Product Date Sheet:
| Housing No. | Shaft Dia d1 | Dimensions(mm) | Housing Wt (kg) | Bearing No. | Adapter Sleeve | Locating Ring | |||||||||||||||||||||
| mm | in | D H8 | a | b | c | g H12 | h h12 | L | L1 | W | m | n | u | v | s | d2 H12 | d3 H12 | f1 H12 | f2 | Number | QTY | ||||||
| SN605 | 20 | 3/4 | 62 | 185 | 52 | 22 | 34 | 50 | 80 | 83 | 90 | 150 | 25 | 15 | 20 | M12 | 21.5 | 31 | 3 | 4.2 | 2.1 | 1305K 2305K | H305 H2305 | HE305 HE2305 | SR62x8.5 SR62x10 | 2 1 | |
| SN606 | 25 | 1 | 72 | 185 | 52 | 22 | 37 | 50 | 82 | 85 | 95 | 150 | 25 | 15 | 20 | M12 | 26.5 | 38 | 4 | 5.4 | 3.1 | 1306K 2306K | H306 H2306 | HE306 HE2306 | SR72x9 SR72x10 | 2 1 | |
| SN607 | 30 | 1-1/8 | 80 | 205 | 60 | 25 | 41 | 60 | 90 | 93 | 110 | 170 | 30 | 15 | 20 | M12 | 31.5 | 43 | 4 | 5.4 | 3.73 | 1307K 2307K | H307 H2307 | HE307 HE2307 | SR80x10 SR80x10 | 2 1 | |
| SN608 | 35 | 1-1/4 | 90 | 205 | 60 | 25 | 43 | 60 | 95 | 100 | 115 | 170 | 30 | 15 | 20 | M12 | 36.5 | 48 | 4 | 5.4 | 4.6 | 1308K 2308K | 21308K 22308K | H308 H2308 | HE308 HE2308 | SR90x10 SR90x10 | 2 1 |
| SN609 SSN609 | 40 | 1-1/2 | 100 | 255 | 70 | 28 | 46 | 70 | 105 | 110 | 130 | 210 | 35 | 18 | 23 | M16 | 41.5 | 53 | 4 | 5.4 | 5.7 8.0 | 1309K 2309K | 21309K 22309K | H309 H2309 | HE309 HE2309 | SR100x10.5 SR100x10 | 2 1 |
| SN610 SSN610 | 45 | 1-3/4 | 110 | 255 | 70 | 30 | 50 | 70 | 115 | 120 | 135 | 210 | 35 | 18 | 23 | M16 | 46.5 | 58 | 4 | 5.4 | 6.5 9.0 | 1310K 2310K | 21310K 22310K | H310 H2310 | HE310 HE2310 | SR110x11.5 SR110x10 | 2 1 |
| SN611 SSN611 | 50 | 2 | 120 | 275 | 80 | 30 | 53 | 80 | 120 | 125 | 150 | 230 | 40 | 18 | 23 | M16 | 51.5 | 67 | 5 | 6.9 | 6.8 9.5 | 1311K 2311K | 21311K 22311K | H311 H2311 | HE311 HE2311 | SR120x12 SR120x10 | 2 1 |
| SN612 SSN612 | 55 | 2-1/8 | 130 | 280 | 80 | 30 | 56 | 80 | 125 | 130 | 155 | 230 | 40 | 18 | 23 | M16 | 56.5 | 72 | 5 | 6.9 | 8.6 11 | 1312K 2312K | 21312K 22312K | H312 H2312 | HE312 HE2312 | SR130x12.5 SR130x10 | 2 1 |
| SN613 SSN613 | 60 | 2-1/4 | 140 | 315 | 90 | 32 | 58 | 95 | 130 | 135 | 175 | 260 | 50 | 22 | 27 | M20 | 62 | 77 | 5 | 6.8 | 11.1 14 | 1313K 2313K | 21313K 22313K | H313 H2313 | HE313 HE2313 | SR140x12.5 SR140x10 | 2 1 |
| SN615 SSN615 | 65 | 2-1/2 | 160 | 345 | 100 | 35 | 65 | 100 | 140 | 145 | 195 | 290 | 50 | 22 | 27 | M20 | 67 | 82 | 5 | 6.8 | 15.2 19.1 | 1315K 2315K | 21315K 22315K | H315 H2315 | HE315 HE2315 | SR160x14 SR160x10 | 2 1 |
| SN616 SSN616 | 70 | 2-3/4 | 170 | 345 | 100 | 35 | 68 | 112 | 145 | 150 | 212 | 290 | 50 | 22 | 27 | M20 | 72 | 89 | 6 | 8.1 | 17.8 21.2 | 1316K 2316K | 21316K 22316K | H316 H2316 | HE316 HE2316 | SR170x14.5 SR170x10 | 2 1 |
| SN617 SSN617 | 75 | 3 | 180 | 380 | 110 | 40 | 70 | 112 | 155 | 160 | 218 | 320 | 60 | 26 | 32 | M24 | 77 | 94 | 6 | 8.1 | 19.5 25 | 1317K 2317K | 21317K 22317K | H317 H2317 | HE317 HE2317 | SR180x14.5 SR180x10 | 2 1 |
| SN618 SSN618 | 80 | 3-1/4 | 190 | 400 | 110 | 33 | 74 | 112 | 160 | 165 | 230 | 320 | 60 | 26 | 35 | M24 | 82 | 99 | 6 | 8.1 | 25.3 29.3 | 1318K 2318K | 22318K | H318 H2318 | HE318 HE2318 | SR190x15.5 SR190x10 | 2 1 |
| SN619 SSN619 | 85 | 200 | 420 | 120 | 36 | 77 | 125 | 170 | 175 | 245 | 350 | 70 | 26 | 35 | M24 | 87 | 104 | 6 | 8.1 | 27 32.3 | 1319K 2319K | 22319K | H319 H2319 | HE319 HE2319 | SR200x16 SR200x10 | 2 1 | |
| SN620 SSN620 | 90 | 3-1/2 | 215 | 420 | 120 | 38 | 83 | 140 | 175 | 180 | 280 | 350 | 70 | 26 | 35 | M24 | 92 | 111 | 7 | 9.3 | 32 36 | 1320K 2320K | 22320K | H320 H2320 | HE320 HE2320 | SR215x18 SR215x10 | 2 1 |
| SN622 SSN622 | 100 | 4 | 240 | 460 | 130 | 40 | 90 | 150 | 190 | 195 | 300 | 390 | 70 | 28 | 38 | M24 | 102 | 125 | 8 | 10.8 | 43.4 51 | 1322K 2322K | 22322K | H322 H2322 | HE322 HE2322 | SR240x20 SR240x10 | 2 1 |
| SN624 SSN624 | 110 | 4-1/4 | 260 | 540 | 160 | 50 | 96 | 160 | 205 | 210 | 325 | 450 | 90 | 33 | 42 | M30 | 113 | 135 | 8 | 10.7 | 54.6 64 | 22324K | H2324 | HE2324 | SR260x10 | 2 1 | |
| SN626 SSN626 | 115 | 4-1/2 | 280 | 560 | 160 | 50 | 103 | 170 | 215 | 220 | 350 | 470 | 90 | 33 | 42 | M30 | 118 | 140 | 8 | 10.7 | 67.2 78 | 22326K | H2326 | HE2326 | SR280x10 | 2 1 | |
| SN628 SSN628 | 125 | 5 | 300 | 630 | 170 | 55 | 112 | 180 | 235 | 240 | 375 | 520 | 90 | 35 | 45 | M30 | 128 | 154 | 9 | 12.2 | 92.6 105 | 22328K | H2328 | HE2328 | SR300x10 | 2 1 | |
| SN630 SSN630 | 135 | 5-1/4 | 320 | 680 | 180 | 55 | 118 | 190 | 245 | 250 | 395 | 560 | 90 | 35 | 45 | M30 | 138 | 164 | 9 | 12.2 | 101.5 113.0 | 22330K | H2330 | HE2330 | SR320x10 | 2 1 | |
| SN632 SSN632 | 140 | 5-1/2 | 340 | 710 | 190 | 60 | 124 | 200 | 255 | 260 | 415 | 580 | 100 | 42 | 52 | M36 | 143 | 173 | 10 | 13.7 | 122.3 135.6 | 22332K | H2332 | HE2332 | SR340x10 | 2 1 | |
Work Shop:
Canton Fair Show:
Contact Us
- Nantong Haihui Bearing Co., Ltd.
- Contact nameGeorge Huang Chat Now
- Phone86-513-82227209
- AddressNo.52 Daqian Building 5, Nantong Haimen, Nantong, Jiangsu
