NU2307E Fyh Bearing
- Shanghai Ningbo or Qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Brand Name | HHZC | Bore Size | 5, 250 | |
| Outside Diameter | 10, 300 | Model Number | NU2307E | |
| Precision Rating | ABEC-1 | Seals Type | open | |
| Number of Row | Double Row | Place of Origin | Shandong, China |
Product Description
Cylindrical roller bearing is a kind of separable bearings, convenient for its assembly and disassembly especially it has the advantages in a condition that the interference is required and assorted with inner ring, outer ring and housing. The bearings consist of the cage, the rollers and guided by two capped edges on a ring. It is a separable bearing,
The NU cylindrical roller bearing has double capped edges on outer ring and without capped edge on inner ring.
The N cylindrical roller bearing has double capped edges on inner ring and without capped edge on outer ring.
The NJ cylindrical roller bearing has double capped edge on outer ring and single capped edge on inner ring.
The NF cylindrical roller bearing with the single capped edge on outer ring & double capped edges on inner ring.
The NUP cylindrical roller bearing with double capped edges on the outer ring & with capped edge on one side of the inner ring, as well as with inner ring loose rib on the other side of the inner ring.
The RNU cylindrical roller bearing has an outer ring with double capped edges but does not come with inner ring. Such bearing is the NU cylindrical roller bearings without the inner ring
The RN cylindrical roller bearing has an inner ring with double capped edge but does not come with outer ring

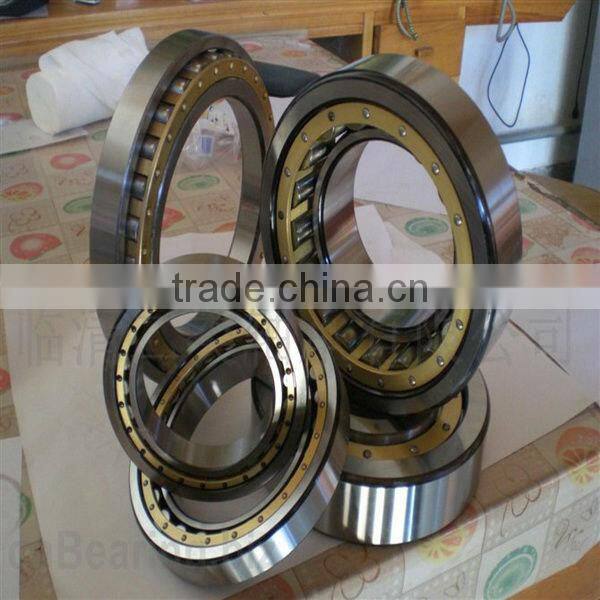

Bearing Picture:
Bearing information:
Bearing numbers | Boundary dimensions | Basic load ratings | Limiting speeds | Weight | ||||||||||
mm | N | r/min | kg | |||||||||||
NU | NJ | NUP | N | NF | d | D | B | r | r1 | dynamic Cr | static Cor | grease | oil | (approx.) |
NU1007 | NJ | NUP | N | - | 35 | 62 | 14 | 1 | 0.6 | 22600 | 23200 | 12000 | 15000 | 0.179 |
NU207 | NJ | NUP | N | NF | 72 | 17 | 1.1 | 0.6 | 35500 | 34000 | 11000 | 12000 | 0.295 | |
NU207E | NJ | NUP | - | - | 72 | 17 | 1.1 | 0.6 | 50500 | 50000 | 9500 | 11000 | 0.327 | |
NU2207 | NJ | NUP | N | - | 72 | 23 | 1.1 | 0.6 | 52000 | 55500 | 9500 | 11000 | 0.404 | |
NU2207E | NJ | NUP | - | - | 72 | 23 | 1.1 | 0.6 | 61500 | 65500 | 8500 | 10000 | 0.455 | |
NU307 | NJ | NUP | N | NF | 80 | 21 | 1.5 | 1.1 | 49500 | 47000 | 9000 | 11000 | 0.461 | |
NU307E | NJ | NUP | - | - | 80 | 21 | 1.5 | 1.1 | 71000 | 71000 | 8100 | 9600 | 0.545 | |
NU2307 | NJ | NUP | N | - | 80 | 31 | 1.5 | 1.1 | 64500 | 65500 | 7900 | 9300 | 0.712 | |
NU2307E | NJ | NUP | - | - | 80 | 31 | 1.5 | 1.1 | 99000 | 109000 | 7200 | 8500 | 0.78 | |
NU3307 | - | - | - | - | 80 | 34.9 | 1.5 | 1.5 | 81000 | 89000 | 7000 | 10000 | ||
NU407 | NJ | NUP | N | NF | 100 | 25 | 1.5 | 1.5 | 75500 | 69000 | 6400 | 7500 | 0.99 |

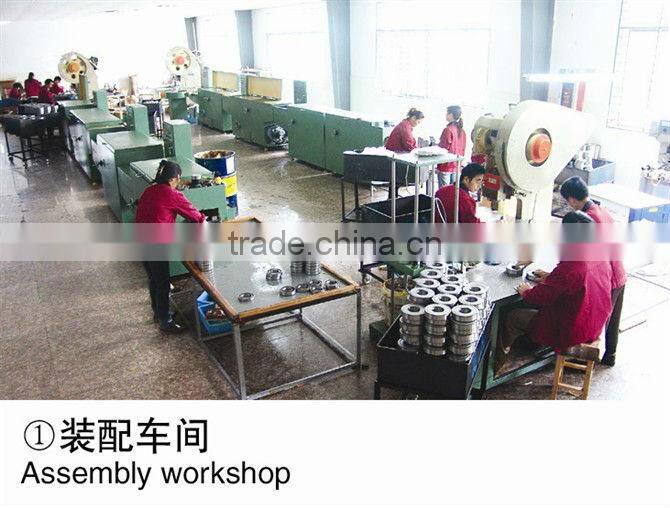

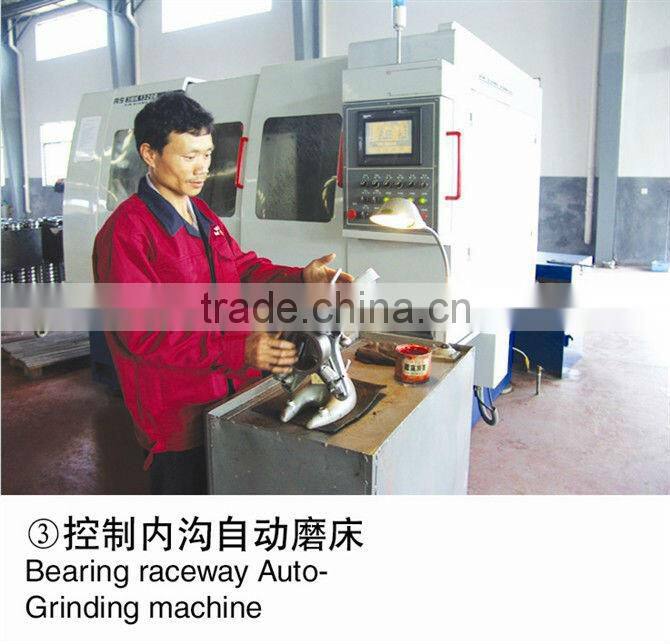

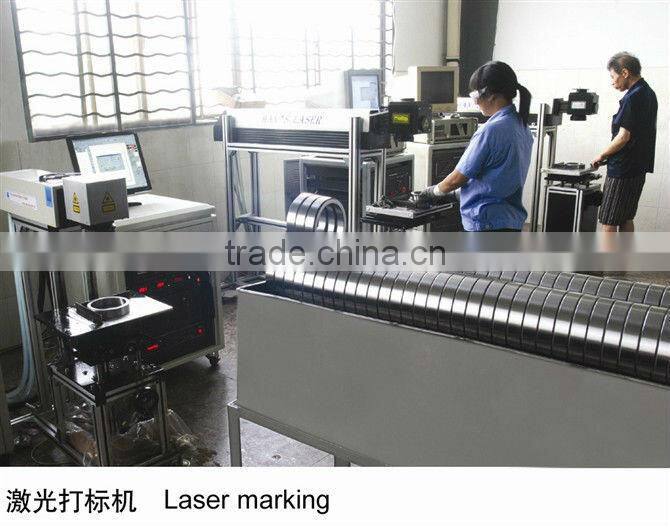

Workshop:
Canton Fair Show:
