Home > Products > Vibrating Sieve for Powder Metallurgy Industry > Stainless Steel 450mm Vibrating Paint Equipment
Stainless Steel 450mm Vibrating Paint Equipment
- shanghai tianjin qingdao
- T/T D/P D/A Credit Card
You May Like
Product Details
| Condition | New | Type | Other, automatic paint shaker | |
| Product Type | Other, liquid, powder, particle | Place of Origin | Henan, China | |
| Brand Name | HENG SHUN | Model Number | HY-450-1S | |
| Voltage | 220v,380v,415v,50hz,60hz | Power(W) | 0.18kw | |
| Weight | 52kg | Dimension(L*W*H) | 460*550*665mm | |
| Certification | ISO, CE, BV |
Product Description
Specifications
1.Small size, low noise2.Compact structure, low consumption
3.Sieving powder, particle, liquid
5.ISO & CE & BV approved

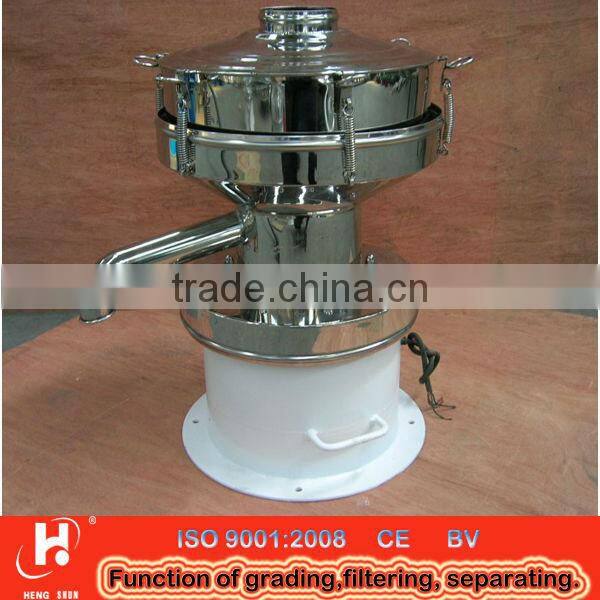

Stainless steel 450mm vibrating paint equipment
Introduction
Hengyu series 450mm vibrating paint equipment is a kind of small size machine, which is designed with the features of convenient to move, high efficiency and low noise, small size, suitable for any granule, powder and mucilage. It is also well qualified for screening glaze, paint and other powder or liquid.

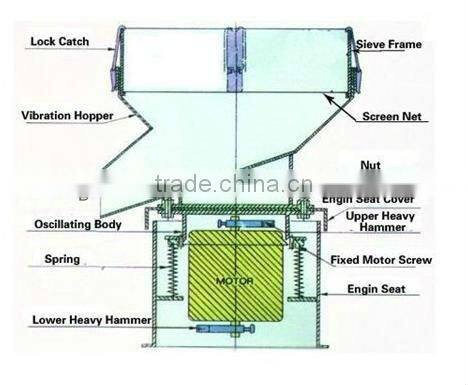

Structure
Features
1, it’s well-qualified for screening glaze, paint and other powder and liquid.
2, Small size and can be moved easily.
3, Simple operation, impurities and coarse materials can be discharged automatically, continuous operations.
4, Stainless steel used for any part touched and easy for conservation.
Technical parameters
Effective Screen Surface Diameter | 380 mm |
Power | 0.18 kw |
Vibration amplitude | 2-5 mm |
Machine size(mm) | 460×550×665 |
Material | Stainless steel 304 or carbon steel |
Sieve Size | 0.038-3mm |
Motor | Vertical vibration motor |
Frequency | 1460r/min |
Voltage | 220V, 380V or 415V, 50/ 60 Hz |
Application | Food, pharmaceutical, chemical, paint and ceramics etc |
Certification | ISO9001:2008, CE, BV |
Application:
Widely used in metallurgy, chemical, abrasive, food, ceramic, coating, mining, diamond, pharmacy urinals industry, etc. suitable for single layer screening and filtering on materials of small production or fewer impurity.

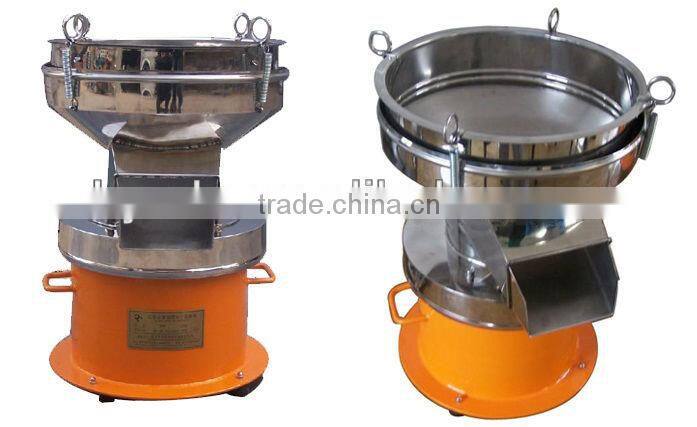

To satisfy the customers’ different requirements, we can offer various types, see some model's picture as follows:

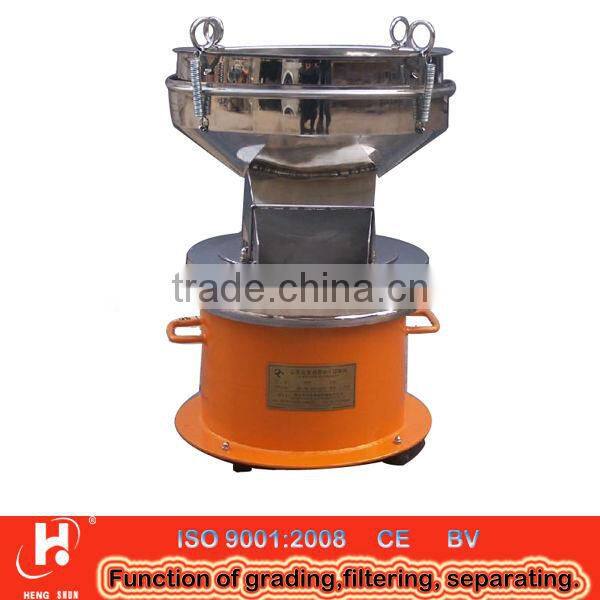

Design for powder and granule
Design for mucus,oil,liquid

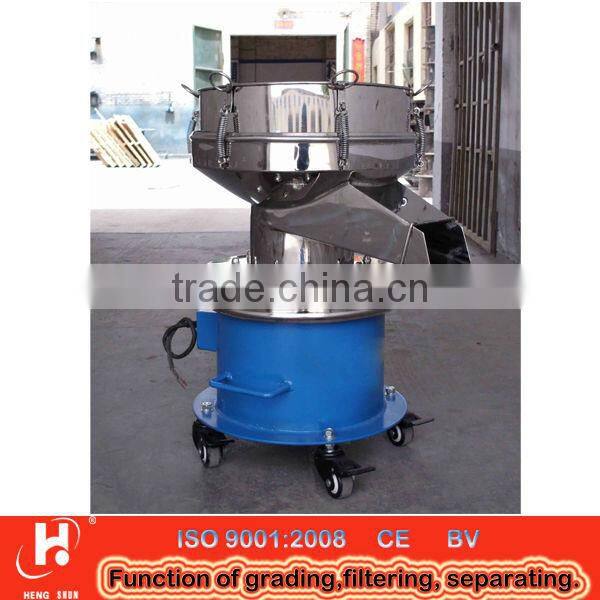

Special design for easy to move
If you want to know about more information, pls contact us now !
