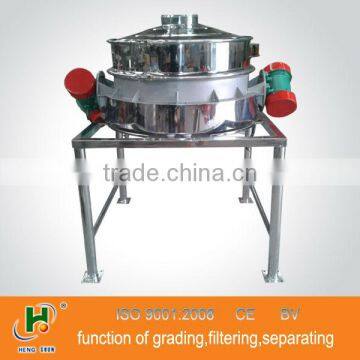

Stainless Steel Chestnut Power Vibrating Screen

 Stainless steel chestnut power vibrating screen

Hengyu low profile circular sieve model Hengshun has central outlet and is designed for control sieving.

It separates granular products, powder and liquid into particle sizes ranging from 51 mm to 0,033 mm (400 mesh).

The Hengshun is assembled with two vibratory motors on opposite sides of the exterior lower deck. This allows the bottom outlet to be positioned directly below the top inlet, minimizing height requirements and enables material to fall vertically through the screens at high rates.

Standard model range are in diameter size from 440 mm to 1800 mm

ADVANTAGES

Screens are easily and quickly changed the screens can be equipped with various cleaning system as: balls, kleeners and the our innovative ultrasonic cleaning system.

The separator can be built to customer specification using carbon steel, stainless steel AISI 304, stainless steel AISI 316.

All product contact areas can be polished to meet with Sanitary Standards.

Compact design, high level of efficiency and reliability allow Hengshun model to be adapted easily into product lines.

Features of  low profile circular separator

Principle of operation of circular flour sifter

The round separator is driven by vertical electric motor. An upper and lower adjustable eccentric weighted arm controls the motion of the unit. These weights can be adjusted to suit nearly every need required by the industrial screening market place.

Our separator can be adjusted to take advantage of three motions simultaneously, vertical motion, horizontal motion and inclinational motion.

Functions as per the picture

Main sectors of application:

Food industry
Dairy farming
Chemical
Pharmaceutical
Cosmetics
Recycling and environmental
Plastic materials
Agriculture
Confectionery industry
Spices and herbs
Cement and sand
Metal processing industry
Diamond cutting and grinding tools
Liquid and powder paintings.
Mining
Abrasives
Wood

Technical parameters:
