Bucket Elevator for Grain Industry

carbon steel bucket elevator for cement

bucket elevator for grain

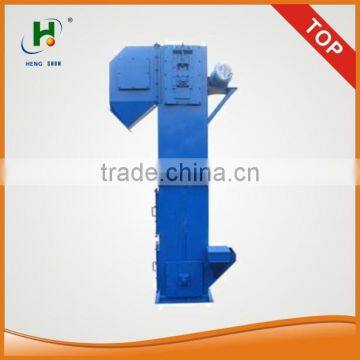

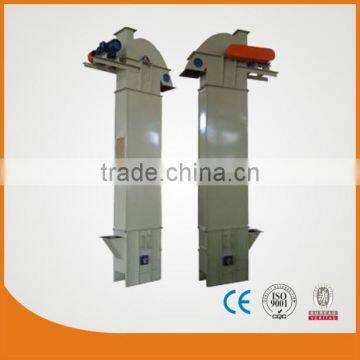

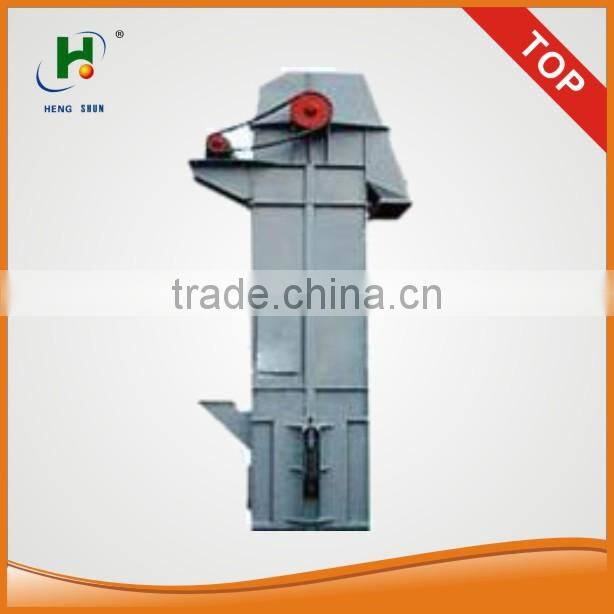

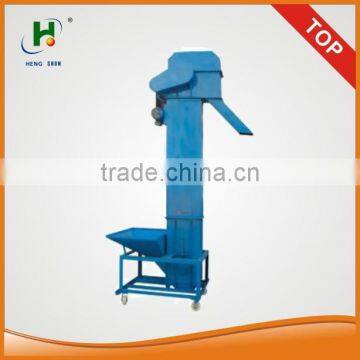

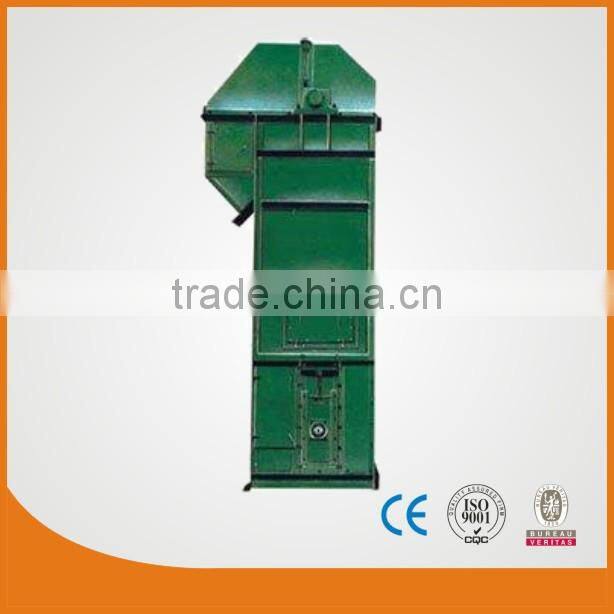

RELATED PRODUCT

PRODUCT INTRODUACTION

One of the most efficient ways to elevate bulk materials vertically is with a bucket elevator. A Bucket Elevator consists of a series of buckets attached to a belt or chain with pulleys or sprockets located at the top and bottom of the unit. The buckets are located in a casing or housing to contain the material. Bulk materials are loaded into each bucket as the bucket moves past an inlet point.  Hengyu manufactures a wide variety of bucket elevators based on the characteristics of the bulk material and the process requirements.

FEATURES

1. Many different bucket and casing sizes available for capacities up to 15,000 cubic feet per hour

2. Low noise, simple structure, installation, maintenance convenience.

3. Huge-volume hopper with tight arrangement. With little returned material or digged-out material, the ineffective power resulted is quite less.

4. Easy operation and maintenance, less vulnerable pieces.

5. carbon steel bucket elevator for cement.

APPLICATION

1.Metallic and Non-Metallic ores (Bauxite ,Coal, Sand ,Gravel Cement,Gypsum,Limestone )
2.Food products (Sugar,Flour,Coffee,Salt )
3.Chemical Processing products (Fertilizers,Phosphates,Agricultural Lime,Soda Ash)
4.Pulp and Paper products (Wood Chips )

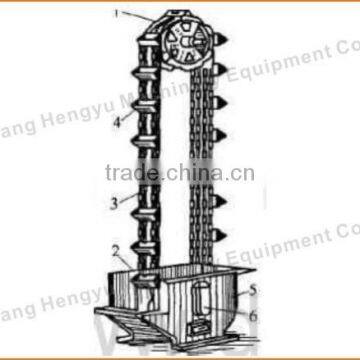

WORKING PRINCIPLE

Bucket elevator is composed of machine head, main frame,Maintenance cylinder,Ventilators,dustpan,dustpan belt and machine base.
The materials are fed into the machine from the bottom and discharged from the top.
1. Firstly, the materials are evenly fed into the dustpan on the machine base;
2. Secondly, the materials are elevated into the machine head;
3. Thirdly, the raw materials are dumped into the targeted machine.

PICTURE SHOW

carbon steel bucket elevator for cement

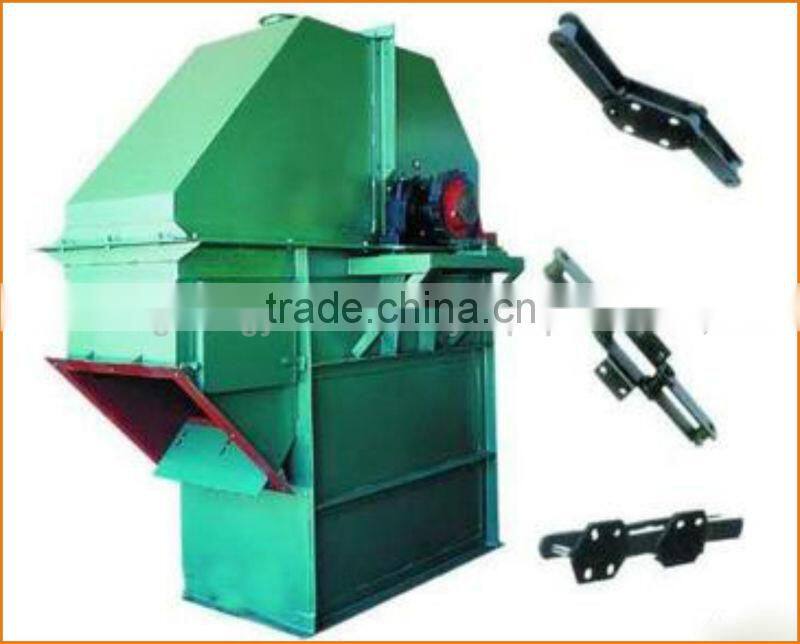

part of carbon steel bucket elevator

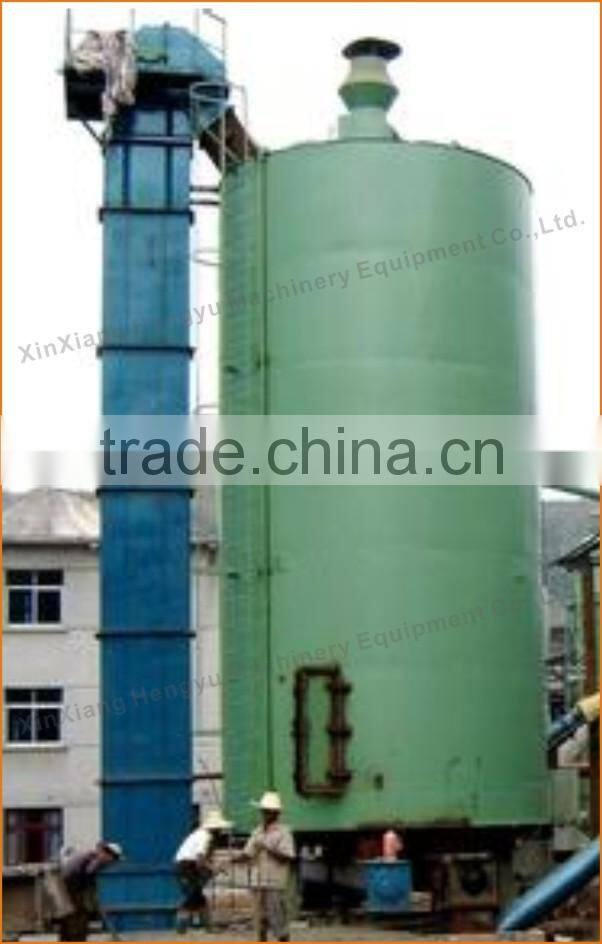

carbon steel bucket elevator in practice

Write an e-mail to tell us your detailed requirements now, suitable carbon steel bucket elevator for cement will be chosen for you!
